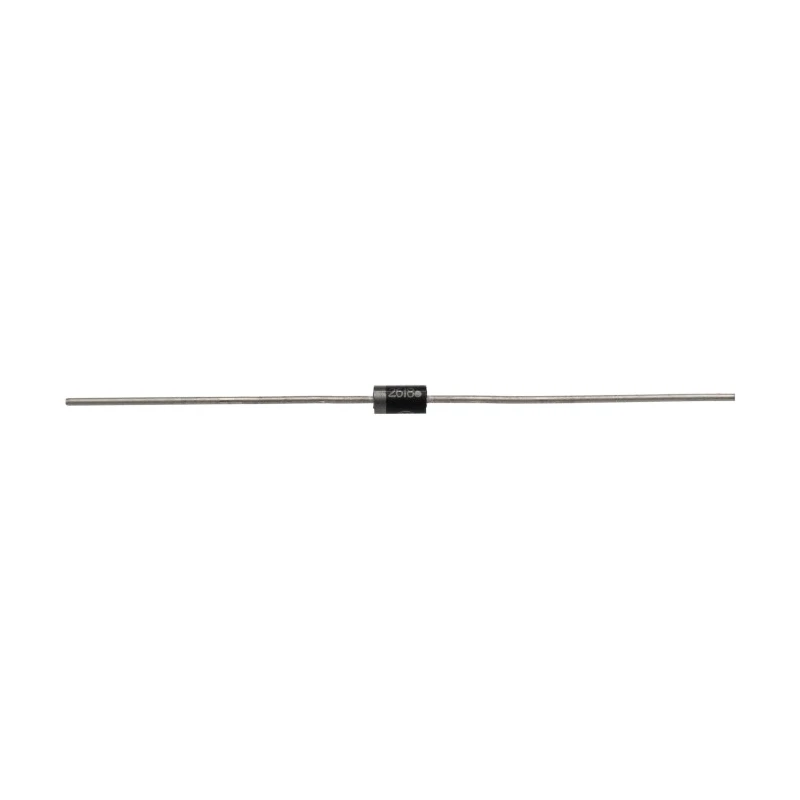

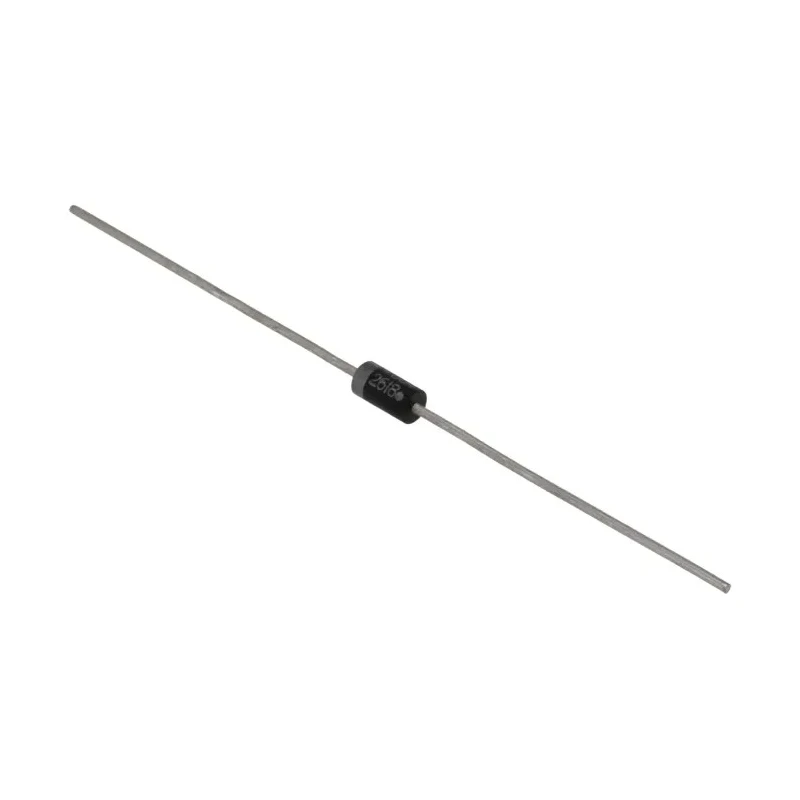

onsemi Silicon Junction Switching Diode Single 1 A 50 V DO-41 Through Hole 2-Pin 1N4004G

onsemi 1N4004G Silicon Junction Switching Diode is a single diode rated for a maximum forward current of 1 ampere and a peak reverse repetitive voltage of 50 volts. Packaged in a DO-41 axial through-hole case, it is designed with an epoxy molded body for robustness and longevity. This diode is ideal for general-purpose low-power rectification in industrial and electronic applications.

The diode supports a peak non-repetitive forward surge current of 30 amperes, providing transient handling capabilities. Its maximum forward voltage of 1.1 volts ensures low power loss during operation. The diode operates reliably within a temperature range of -65°C to 175°C, making it suitable for demanding environmental conditions.

The package dimensions are compact with a length of 54.9 mm, diameter and width of 2.7 mm, and height of 5.2 mm, allowing easy integration on printed circuit boards. The cathode terminal is marked with a polarity band for correct orientation during assembly. Terminal leads are corrosion resistant and easily solderable, supporting soldering operations with a lead temperature tolerance of 260°C for 10 seconds.

This component is typically used in high frequency inverters, free wheeling diode circuits, and polarity protection applications across industrial and commercial electronics sectors. Its corrosion resistant finish and reliable construction make it a preferred choice for designers requiring standard recovery rectifiers.

Axial lead standard recovery rectifier diode with corrosion resistant epoxy molded case. Maximum peak reverse repetitive voltage of 50 V for robust voltage handling. Maximum forward voltage of 1.1 V ensuring efficient conduction.

Peak non-repetitive forward surge current of 30 A for transient protection. Operating temperature range from -65°C to 175°C for high reliability. Cathode indicated by polarity band for easy identification and correct circuit placement.

Compact dimensions: 54.9 mm length and 2.7 mm diameter for space-saving PCB design. Lead temperature tolerance up to 260°C for soldering without damage. Suitable for use in high frequency inverters, polarity protection, and free wheeling diode applications.

Manufactured in China with all external surfaces corrosion resistant and solder-ready terminal leads. Discover more semiconductor diodes and switching diodes in EnvMart’s electronics category for efficient circuit designs.
