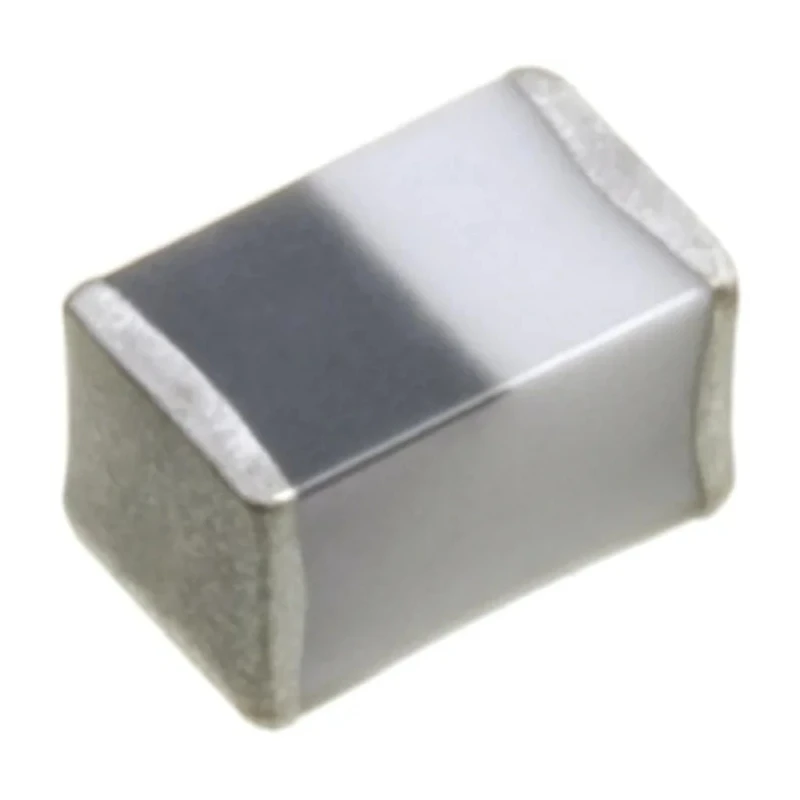

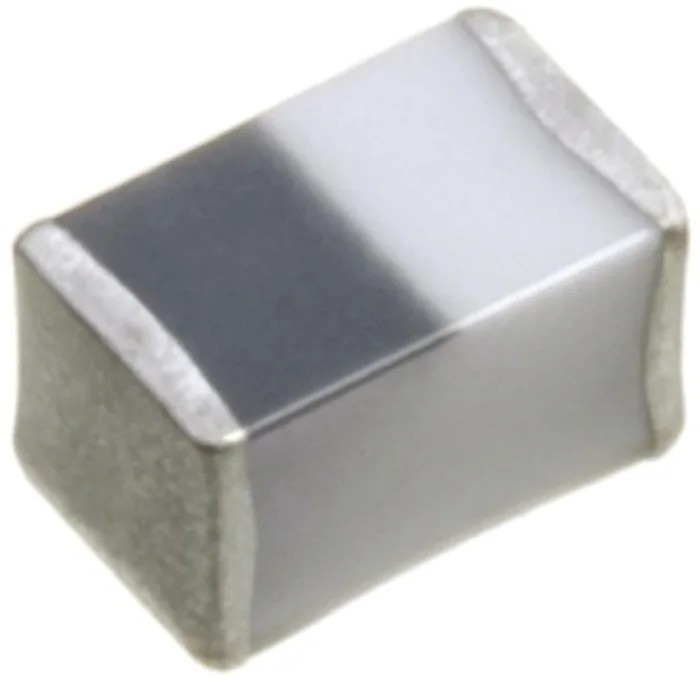

TDK 0402 Shielded Multilayer Surface Mount Inductor with Ceramic Core 6.8 nH ±5% 700 mA Idc MHQ1005P

TDK MHQ1005P 0402 Shielded Multilayer Surface Mount Inductor with Ceramic Core 6.8 nH ±5% 700 mA Idc is designed for high frequency applications requiring stable inductance and compact size.

This inductance device features a multilayer ceramic construction with shielding that minimizes electromagnetic interference, ensuring reliable performance in the 0402 package footprint with dimensions of 1 mm length, 0.5 mm height, and 0.5 mm depth.

It operates efficiently between temperatures of -55°C to 125°C and provides a maximum DC current of 700 mA with a resistance of 140 mΩ, making it suitable for demanding mobile communications equipment.

The RoHS compliant inductor offers a high self-resonant frequency of 5.8 GHz and a minimum quality factor of 23, balancing low insertion loss and excellent performance in frequency-sensitive circuit modules such as power amplifiers, voltage controlled oscillators, front-end modules, Bluetooth, WLAN, UWB, and tuner circuits.

The multilayer ceramic core construction allows fine increments in inductance values and stable performance over temperature. Shielding reduces noise and crosstalk in densely packed PCB assemblies. Compact surface mount design enables space-efficient layouts in handheld electronic devices.

The device is moulded for mechanical strength and durability in automated manufacturing processes. Operating characteristics support use in automotive and consumer electronics with reliable tolerance of ±5% inductance.

Manufactured in Japan, this TDK MHQ1005P series inductor is a premium choice for engineers developing next-generation mobile communication hardware, ensuring robust operation under diverse environmental conditions.
