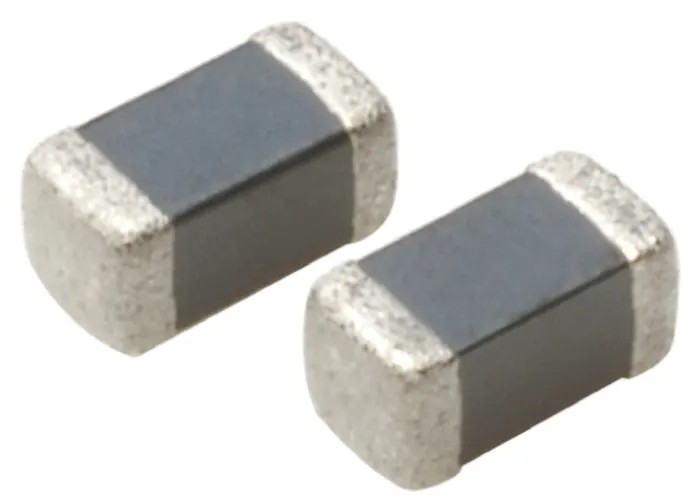

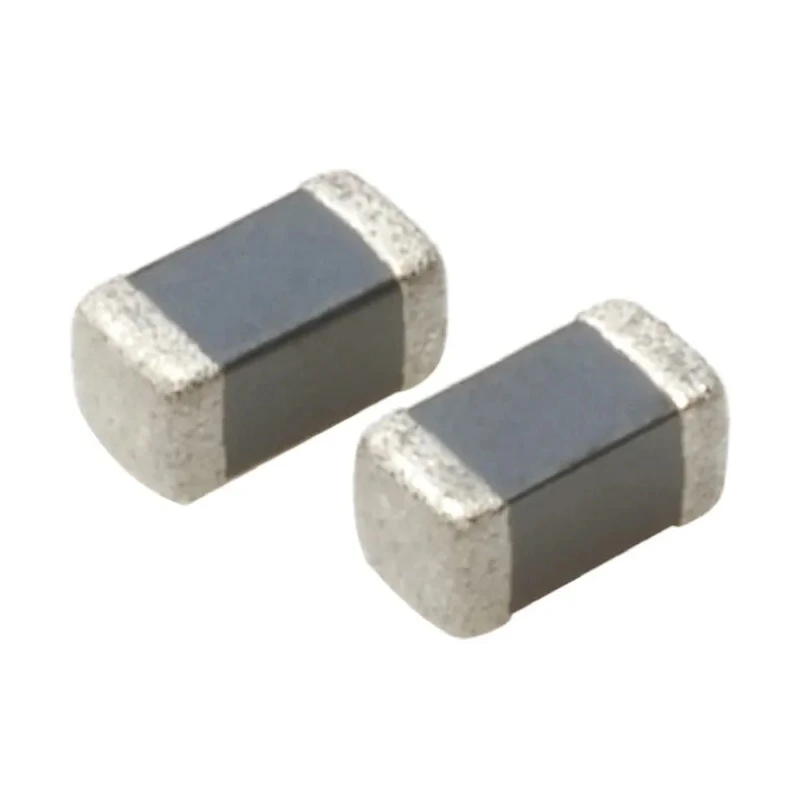

TDK 0603 MLF Series Shielded Multilayer Surface Mount Inductor 4.7μH ±10% 30mA Idc Ferrite Core MLF1608A4R7KTA00
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TDK |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | MLF1608A4R7KTA00 |
| Depth | 0.8mm |
| Series | MLF |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 4.7μH |
| Standards/Approvals | RoHS |
| Package/Case | 0603 |
| Maximum DC Current | 30mA |
| Pin Count | 2 |
| Maximum DC Resistance | 1.6Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 80MHz |
| Minimum Quality Factor | 35 |
| Inductor Construction | Multilayer |
| TDK, MLF 4.7 μH ±10% Ferrite Multilayer SMD Inductor, 0603 (1608M) SRF | 80MHz Q: 35 30mA dc 1.6Ω RdcBrand: TDK |
Key Features
- Features a compact 0603 package with dimensions 1.6mm length and 0.8mm height and depth.
- Constructed with a ferrite core for superior magnetic shielding and noise reduction.
- Maximum DC current rating of 30 mA and maximum DC resistance of 1.6 Ω.
- Wide operating temperature range from -40°C to 85°C for versatile industrial use.
- Multilayer monolithic construction ensures high reliability during flow and reflow soldering.
- Suitable for lead-free soldering processes supporting environmental compliance (RoHS).
- Maximum self-resonant frequency of 80 MHz with minimum quality factor of 35.
- Ideal for applications in digital cellular phones, tuners, personal computers, audio equipment, and various electronic devices.
Product Description
TDK MLF1608A4R7KTA00 is a 0603 size shielded multilayer surface mount inductor featuring a ferrite core with 4.7 μH inductance and ±10% tolerance. This inductor is designed for high-frequency signal line applications where magnetic shielding and low noise interference are critical. It operates reliably within a temperature range of -40°C to 85°C and supports a maximum DC current of 30 mA, making it suitable for a wide range of industrial and commercial electronic equipment.
The MLF1608 series boasts a multilayer monolithic structure that enhances durability and thermal stability for flow and reflow soldering processes, including lead-free soldering. It provides a maximum DC resistance of 1.6 Ω and a maximum self-resonant frequency of 80 MHz with a minimum quality factor of 35, ensuring efficient performance in signal filtering and energy storage.
This ferrite core inductor is magnetically shielded to reduce electromagnetic interference and signal loss, catering to applications in digital cellular phones, tuners, personal computers, audio devices, and various other electronic appliances.
Compact 0603 package with precise footprint dimensions: 1.6mm length, 0.8mm height and depth. Monolithic multilayer construction provides reliability under harsh soldering conditions. RoHS compliant and suitable for environmentally conscious manufacturing.
Wide operating temperature range for versatile industrial applications. Magnetically shielded ferrite core offers excellent noise suppression. Designed to support high-frequency operations up to 80 MHz. Ideal for consumer electronics and communication equipment.
Choose this TDK MLF1608A4R7KTA00 inductor for precision inductance needs in demanding surface mount electronic circuits and achieve robust, long-term performance. Explore more components and solutions in the Electronics Components category at EnvMart.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 4.7μH with a tolerance of ±10%.
This model has a maximum DC current rating of 30 mA.
The dimensions of the 0603 package are 1.6mm in length, 0.8mm in height, and 0.8mm in depth.
The maximum self-resonant frequency is 80 MHz.
It operates reliably within a temperature range of -40°C to 85°C.
The inductor is constructed with a ferrite core, which provides magnetic shielding and noise reduction.
Yes, this model is RoHS compliant, supporting environmentally conscious manufacturing processes.
The maximum DC resistance is 1.6 Ω.
The minimum quality factor for this inductor is 35.
This model features a surface mount termination style.
It is suitable for applications in digital cellular phones, tuners, personal computers, audio equipment, and various electronic devices.
The multilayer monolithic construction enhances durability and thermal stability during flow and reflow soldering processes.
