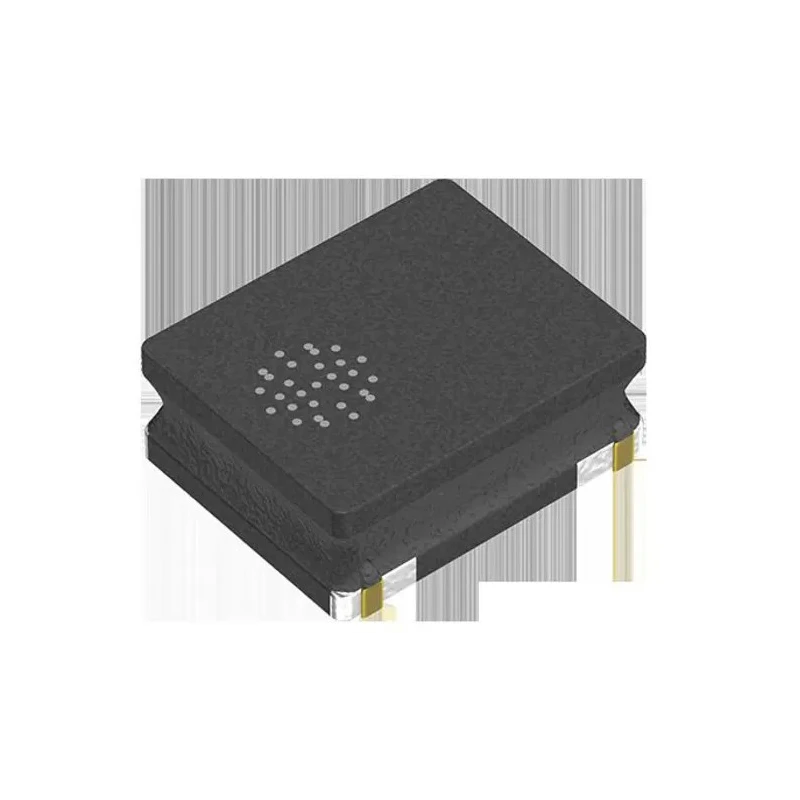

TDK Shielded Wirewound Surface Mount Inductor, Metal Core, 470 nH ±20%, 3.32 A, Package 252010 VLS252010HBX-R47M-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 1mm |
| Length | 2.5mm |
| Model | VLS252010HBX-R47M-1 |
| Depth | 2mm |
| Series | VLS-HBX-1 |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal |
| Inductance | 470nH |
| Standards/Approvals | Lead Free, REACH, RoHS, SVHC-free, Halogen Free |
| Package/Case | 252010 |
| Maximum DC Current | 3.32A |
| Maximum DC Resistance | 35mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Application guides | Smart phones/tablets |
Key Features
- Provides 470 nH inductance with ±20% tolerance for consistent performance.
- Rated for maximum DC current of 3.32 A to handle demanding power circuits.
- Low maximum DC resistance of 35 mΩ improves efficiency and reduces losses.
- Compact package size 252010, with dimensions of 2.5 mm length, 2 mm depth, and 1 mm height.
- Metal core and wirewound construction for high magnetic shielding and robust durability.
- Operating temperature range from -40°C to 105°C enables wide application environment compatibility.
- Lead-free, halogen-free, RoHS, REACH, and SVHC-compliant design for improved safety and environmental standards.
- Surface mount termination style supports high-density PCB layouts.
Product Description
TDK VLS252010HBX-R47M-1 is a shielded wirewound surface mount inductor designed for advanced electronic circuits requiring stable and high-current magnetic components. This inductor features a metallic magnetic core and wirewound construction to provide superior shielding and minimize electromagnetic interference.
With an inductance value of 470 nH and a tolerance of ±20%, this device is engineered for reliability and precision in power filtering, voltage regulation, and signal conditioning applications. Its maximum DC current handling of 3.32 A supports robust performance in a range of demanding environments, including power supply modules and high-current digital applications.
The VLS252010HBX-R47M-1 is housed in the industry-standard 252010 surface mount package, measuring 2.5 mm in length, 2 mm in depth, and 1 mm in height, making it ideal for compact and crowded PCB designs. The low maximum DC resistance of 35 mΩ ensures minimal power loss and high circuit efficiency.
Constructed with a metal core and wirewound configuration, the device delivers high magnetic shielding and is compatible with high-density mounting. Its robust construction enables operation within a wide temperature range of -40°C to 105°C, supporting both harsh industrial and commercial electronic environments.
The inductor complies with global safety and environmental standards, including Lead Free, RoHS, REACH, halogen-free, and SVHC-free status, making it suitable for applications where regulatory compliance is critical.
Surface mount termination style accommodates automated assembly processes and is compatible with modern SMT production lines. Typical applications include smartphones, tablet terminals, HDDs, SSDs, digital video cameras, mobile display panels, portable game devices, and compact power supply modules.
Explore EnvMart’s full range of TDK Surface Mount Inductors and passive components for optimized electronic circuit design.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 470 nH with a tolerance of ±20%.
It is rated for a maximum DC current of 3.32 A, making it suitable for high-current applications.
The inductor measures 2.5 mm in length, 2 mm in depth, and 1 mm in height.
The maximum DC resistance is 35 mΩ, which helps improve circuit efficiency by reducing power losses.
It operates within a temperature range of -40°C to 105°C, allowing for use in various environments.
This unit features a wirewound construction with a metal core, providing high magnetic shielding.
It complies with Lead Free, REACH, RoHS, SVHC-free, and halogen-free standards, ensuring safety and environmental responsibility.
It utilizes a surface mount termination style, which is suitable for high-density PCB layouts.
Typical applications include smartphones, tablet terminals, HDDs, SSDs, and compact power supply modules.
This inductor belongs to the VLS-HBX-1 series.
Yes, the surface mount termination style supports automated assembly processes, making it compatible with modern SMT production lines.
The core material is metal, which contributes to its performance and magnetic shielding capabilities.
