| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | LQW18ANR12G00D |
| Depth | 0.8mm |
| Packaging | Tape & Reel |
| Series | LQW |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Non-Magnetic Ceramic |
| Inductance | 120nH |
| Standards/Approvals | RoHS |
| Package/Case | 0603 |
| Maximum DC Current | 180mA |
| Maximum DC Resistance | 1.3Ω |
| Inductance Tolerance | ±2 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 1.6GHz |
| Minimum Quality Factor | 32 |
| Inductor Construction | Wirewound |

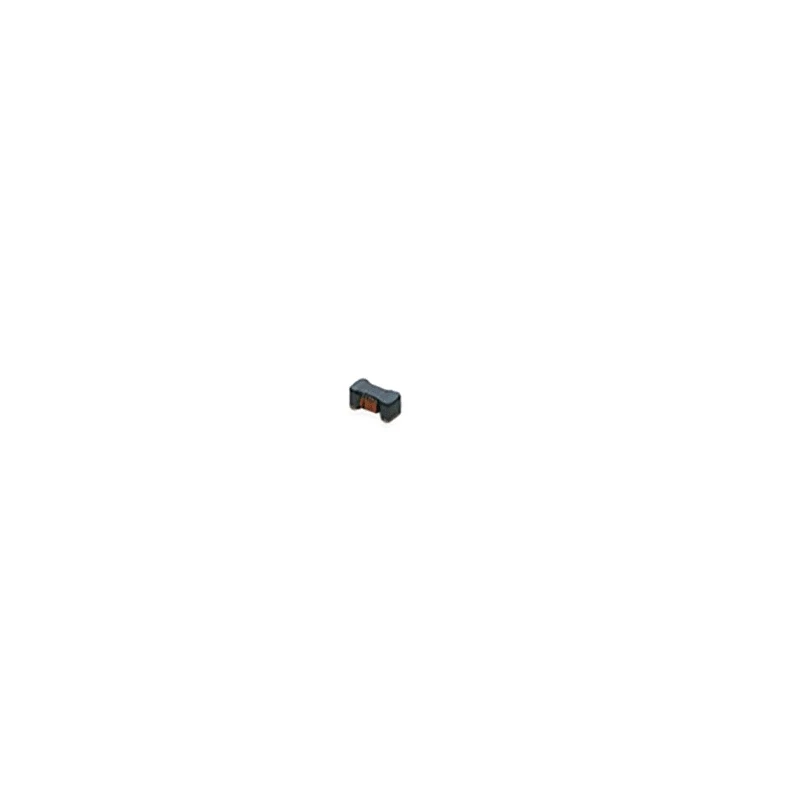

The Murata LQW Series LQW18ANR12G00D is a highly compact unshielded wirewound surface mount inductor in a 0603 case, specifically engineered for use in high-frequency circuit applications. It features a non-magnetic ceramic core, providing stable performance and minimizing unwanted magnetic interference.
This inductor offers an inductance of 120 nH with a tight tolerance of ±2% and supports up to 180 mA of DC current, making it well suited for RF modules, Wi-Fi and Bluetooth® circuits, and various signal matching applications. The wirewound construction enhances quality factor and current handling compared to multilayer alternatives.
The device is housed in an ultra-small 0603 package (1.6 mm x 0.8 mm x 0.8 mm), providing flexibility for densely populated PCB layouts. Surface mounting enables automated assembly and reliable electrical connections.
Operating across a broad temperature range from -55°C to +125°C, the LQW18ANR12G00D maintains stability even in demanding environments and industrial, telecommunications, and automotive electronics. Its maximum DC resistance is 1.3 Ω, ensuring energy efficiency, while the maximum self-resonant frequency of 1.6 GHz supports advanced high-frequency circuit designs.
The product is RoHS compliant, contributing to industrial safety and environmental responsibility. Common applications include mobile devices, communication infrastructure, wireless modules, and any precision matching or filtering circuits in laboratory, manufacturing, and consumer electronics.
Engineers and designers can select the Murata LQW18ANR12G00D for its reliable performance, compact form factor, and precise inductance control, optimized for surface mount and high-frequency operation within professional and industrial contexts.
Explore more Murata inductor solutions and surface mount passive components on EnvMart for high-performance circuit design needs.
