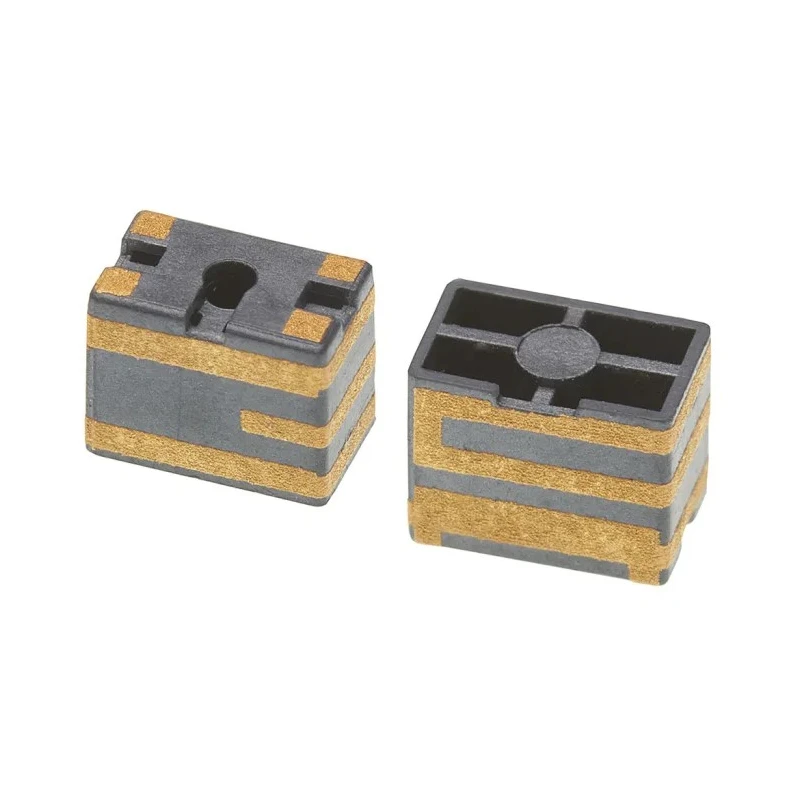

Molex Square WiFi Antenna with SMT Connector WiFi Dual Band 5150-5850MHz Gain 4.2dBi 146175-0001
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Connector Type | SMT |
| Bandwidth | 5850MHz |
| Series | 146175 |
| Gain | 4.2dBi |
| Standards/Approvals | EU RoHS China RoHS Compliant, REACH SVHC Not Contained Per - D(2020)9139-DC (19 Jan 2021), EU ELV Not Relevant |
| Maximum Frequency | 5850MHz |
| Connector Gender | Male |
| Minimum Frequency | 5150MHz |
| Internal/External | Internal |
| RF Protocols | WiFi (Dual Band) |
| Antenna Physical Form | Square |
| Antenna Mount Type | PCB |
| Directivity | Omni-Directional |
| Number of Bands | 2 |
Key Features
- This internal antenna is designed in a compact square form suitable for PCB mounting.
- Offers a gain of 4.2dBi with omni-directional directivity for widespread signal coverage.
- Connector type is SMT with a male gender for reliable soldering on PCBs.
- Supports multiple RF protocols including WiFi, Bluetooth, and ZigBee applications.
- Compliant with EU RoHS, China RoHS, and REACH standards ensuring environmental and safety compliance.
- Lightweight with a net weight of 0.058 grams and compact dimensions of 5mm length and 3mm width.
- Operates efficiently within 2.4 to 5 GHz MID band frequency spectrum.
- Ideal for use in electronic devices requiring high-quality wireless communications.
Product Description
Molex 146175-0001 Square WiFi Antenna with SMT Connector is a high-performance internal antenna designed for reliable dual band wireless communications operating between 5150MHz and 5850MHz. This antenna features a compact square physical form factor with measurements approximately 5mm in length and 3mm width, making it ideal for surface mounting on PCBs.
With an omni-directional directivity and a gain of 4.2dBi, the antenna provides consistent signal coverage suitable for WiFi, Bluetooth, and ZigBee RF protocols. The SMT male connector type ensures ease of integration into modern electronics.
Constructed to meet stringent industry standards, it complies with EU RoHS and China RoHS environmental regulations, with no hazardous substances under REACH SVHC. This makes it a dependable choice for manufacturers seeking compliance and performance.
This antenna supports dual band operation for versatile wireless applications. Its small size and low weight facilitate integration within compact electronic devices. The square form factor enables design flexibility on PCB layouts.
SMT connector type provides secure and stable mounting. Suitable for industrial, commercial, and consumer electronics communications needs.
Manufactured in China, the Molex 146175 series antenna is widely used in devices requiring robust wireless signal transmission over 2.4 to 5 GHz bands. It is especially beneficial where space constraints and performance demands overlap in networking and IoT devices.
Browse EnvMart’s Electronics Components category for a broad selection of advanced antenna solutions engineered for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This antenna operates efficiently within the frequency range of 5150MHz to 5850MHz, supporting dual band wireless communications.
The antenna features an SMT male connector type, ensuring reliable soldering on PCBs for secure integration.
This model has compact dimensions of approximately 5mm in length and 3mm in width, making it suitable for space-constrained applications.
It has an omni-directional directivity, allowing for widespread signal coverage in various orientations.
Yes, it complies with EU RoHS, China RoHS, and REACH standards, ensuring it does not contain hazardous substances.
The antenna has a net weight of 0.058 grams, contributing to its lightweight design suitable for compact devices.
It is designed for PCB mounting, which facilitates integration into electronic devices.
This antenna is ideal for use in electronic devices requiring high-quality wireless communications, particularly in networking and IoT devices.
The Molex Square WiFi Antenna is manufactured in China, adhering to industry standards for performance and compliance.
Its compact square form factor allows for design flexibility on PCB layouts, making it suitable for applications where space is limited.
