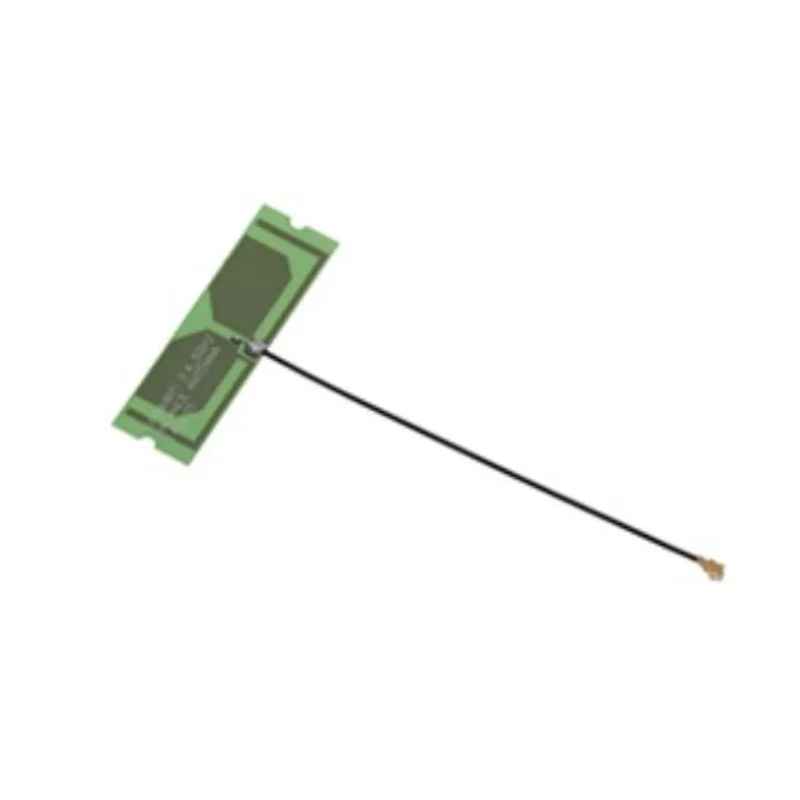

Molex T-Bar WiFi Antenna with UFL/IPEX MHF Connector, Internal, 1575.42MHz to 6000MHz Frequency Range, 3.3dBi 146220-0200
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Cable Length | 200mm |
| Connector Type | UFL/IPEX MHF |
| Series | 146220 |
| Gain | 3.3dBi |
| Standards/Approvals | EU ELV Not Relevant, REACH SVHC Not Contained Per - D(2020)9139-DC (19 Jan 2021), EU RoHS China RoHS Compliant |
| Maximum Frequency | 6000MHz |
| Connector Gender | Female |
| Minimum Frequency | 1575.42MHz |
| Internal/External | Internal |
| RF Protocols | WiFi |
| Antenna Physical Form | T-Bar |
| Antenna Mount Type | Through Hole/Bolted |
| Directivity | Omni-Directional |
| Number of Bands | 4 |
Key Features
- Designed for internal installation with through hole/bolted mounting.
- Supports WiFi RF protocols with omni-directional directivity.
- Compact T-bar form factor with cable length of 200mm.
- Female connector type ensures compatibility with UFL/IPEX MHF interfaces.
- Operates across 4 frequency bands for versatile wireless applications.
- Compliant with EU ELV, REACH SVHC, EU RoHS, and China RoHS standards.
- Constructed with ceramic material ensuring high-performance SMT antenna.
- Lightweight design with net weight approximately 3.812 grams.
Product Description
Molex 146220-0200 T-Bar WiFi Antenna is a high-performance internal antenna designed for a wide range of wireless applications. It operates over a broad frequency range from 1575.42MHz to 6000MHz, supporting WiFi RF protocols with omni-directional radiation pattern providing reliable and stable connectivity.
The antenna features a compact T-bar physical form factor, ideal for internal through-hole or bolted mounting configurations. It uses a female UFL/IPEX MHF connector facilitating easy integration with various wireless devices and systems. The antenna includes a 200mm cable for flexible installation options.
Constructed with ceramic materials, this SMT (Surface Mount Technology) wideband antenna is part of the 146220 series, known for excellent gain performance around 3.3dBi. It covers four frequency bands to enable versatile deployment across different wireless standards and requirements.
Compliance with internationally recognized standards such as EU ELV, REACH SVHC, EU RoHS, and China RoHS ensures the antenna meets environmental and safety regulations. Its lightweight design, weighing approximately 3.812 grams, makes it suitable for compact, space-constrained applications in consumer electronics, IoT devices, industrial automation, and telecommunications equipment.
This antenna is manufactured in China and belongs to the Molex 146220 series to guarantee quality and reliable performance. Designed for internal mounting with through hole/bolted antenna mount type. Supports WiFi protocols with omni-directional directivity and a gain of 3.3dBi.
Compact T-bar form factor and 200mm cable length for flexible installation. Female UFL/IPEX MHF connector type for wide compatibility. Operates across four frequency bands from 1575.42MHz to 6000MHz. Compliance with EU ELV, REACH SVHC, EU RoHS, and China RoHS standards.
Lightweight ceramic design, net weight approximately 3.812 grams.
Ideal for integration in wireless communication devices, embedded systems, networking modules, and IoT applications. Explore our extensive selection of WiFi Antennas and electronic components at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a female UFL/IPEX MHF connector, ensuring compatibility with various wireless devices and systems.
The antenna has a gain of 3.3dBi, providing reliable and stable connectivity for WiFi RF protocols.
It includes a cable length of 200mm, allowing for flexible installation options in various applications.
This unit is designed for internal mounting with a through hole or bolted mount type, suitable for various configurations.
It is constructed with ceramic materials, which contribute to its performance as a surface mount technology (SMT) antenna.
The antenna is compliant with EU ELV, REACH SVHC, EU RoHS, and China RoHS standards, ensuring it meets environmental and safety regulations.
The net weight of this model is approximately 3.812 grams, making it suitable for compact applications.
It features an omni-directional directivity, allowing it to provide reliable connectivity in multiple directions.
This antenna is ideal for integration in wireless communication devices, embedded systems, networking modules, and IoT applications.
This model is part of the Molex 146220 series, known for its excellent gain performance and reliability.
