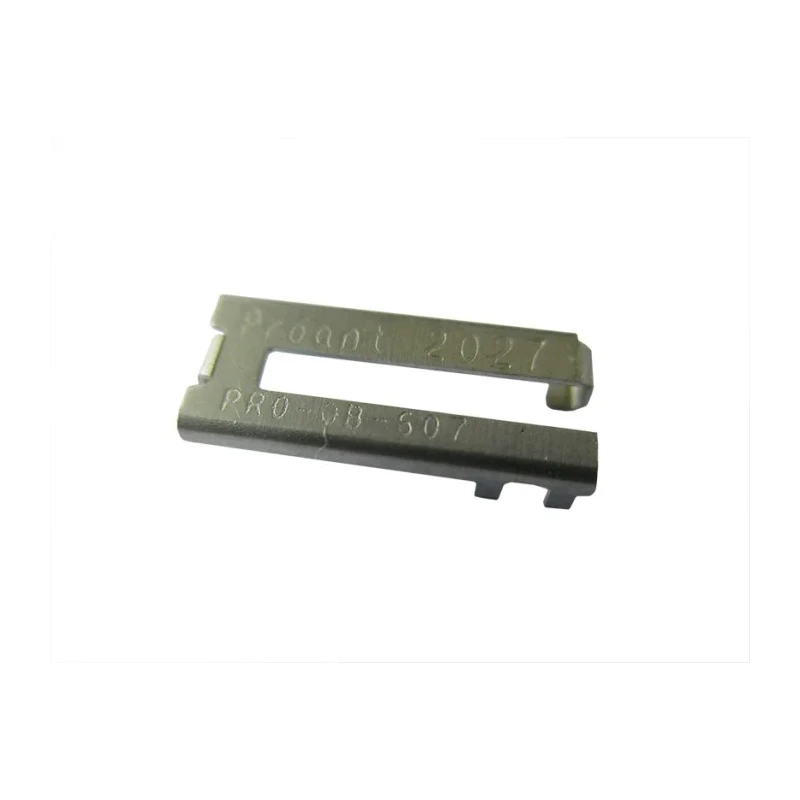

Abracon PRO-OB-607 WiFi Antenna with SMA Connector Bluetooth (BLE), WiFi, ZigBee PRO-OB-607
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Model | PRO-OB-607 |
| Cable Length | 10mm |
| Connector Type | SMA |
| Series | PRO-OB-607 |
| Gain | -0.6dBi |
| Standards/Approvals | RoHS/RoHS II |
| Maximum Frequency | 2497MHz |
| Minimum Frequency | 2400MHz |
| Internal/External | Internal |
| RF Protocols | Bluetooth (BLE), WiFi, ZigBee |
| Antenna Mount Type | Surface |
| Directivity | Omni-Directional |
| Number of Bands | 2 |
Key Features
- The antenna uses PIFA technology and requires mounting on a ground plane.
- It features an ultra-compact low profile with 2 mm height.
- Supports Bluetooth (BLE), WiFi, and ZigBee RF protocols.
- Operates within 2400 MHz to 2497 MHz frequency range across two bands.
- Surface mount antenna with SMA connector type for reliable connectivity.
- Peak gain is -0.6 dBi with an omni-directional radiation pattern.
- Includes a 10 mm cable length for flexible PCB mounting.
- RoHS and RoHS II compliant for adherence to environmental standards.
Product Description
The Abracon PRO-OB-607 WiFi Antenna with SMA Connector, model PRO-OB-607, is a high-performance internal antenna designed for Bluetooth (BLE), WiFi, and ZigBee RF protocols. Operating within a frequency range of 2400 MHz to 2497 MHz, this antenna employs PIFA technology that must be mounted on a ground plane to ensure signal integrity.
The antenna features an ultra-compact low-profile design with a height of just 2 mm and mixed linear polarization, enhancing its integration into compact circuit layouts. It supports two frequency bands and presents an omni-directional radiation pattern with a peak gain of -0.6 dBi, delivering reliable wireless connectivity.
The device is surface-mounted via an SMA connector, ensuring stable RF connections. The 10 mm cable length allows for convenient PCB integration. Ground clearance around the NC pads and RF feed pad is essential across all PCB layers to prevent interference. A matching network is strongly recommended for optimizing antenna impedance according to application requirements.
This antenna accommodates multilayer PCBs where components can be positioned beneath it. It complies with RoHS and RoHS II standards, aligning with environmental and manufacturing quality guidelines.
Industrial use cases include integration into electronic components, power and connectors assemblies, and networking modules where Bluetooth, WiFi, and ZigBee wireless communication is required. This antenna is ideal for embedded wireless applications demanding compact, efficient antenna solutions.
The antenna uses PIFA technology and requires mounting on a ground plane. Ultra-compact and low profile with 2 mm height. Supports Bluetooth (BLE), WiFi, and ZigBee protocols. Operates between 2400 MHz and 2497 MHz with 2 bands.
Surface mount with SMA connector type. Peak gain of -0.6 dBi in an omni-directional pattern. Includes 10 mm cable length for flexible PCB integration. RoHS and RoHS II compliant for environmental safety. Recommended ground clearance and matching network improve impedance and performance.
Explore more WiFi Antennas and electronic components at EnvMart for optimal wireless solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a frequency range of 2400 MHz to 2497 MHz, supporting two frequency bands.
It features an SMA connector type for reliable connectivity.
The antenna has an ultra-compact low-profile design with a height of just 2 mm.
The peak gain of the Abracon PRO-OB-607 is -0.6 dBi.
It supports Bluetooth (BLE), WiFi, and ZigBee RF protocols.
This antenna requires surface mounting on a ground plane to ensure proper signal integrity.
The antenna includes a cable length of 10 mm for flexible PCB integration.
It has an omni-directional radiation pattern, allowing for 360-degree signal coverage.
Yes, it is RoHS and RoHS II compliant, adhering to environmental safety standards.
This model employs PIFA (Planar Inverted-F Antenna) technology for its design.
The Abracon PRO-OB-607 is classified as an internal antenna.
