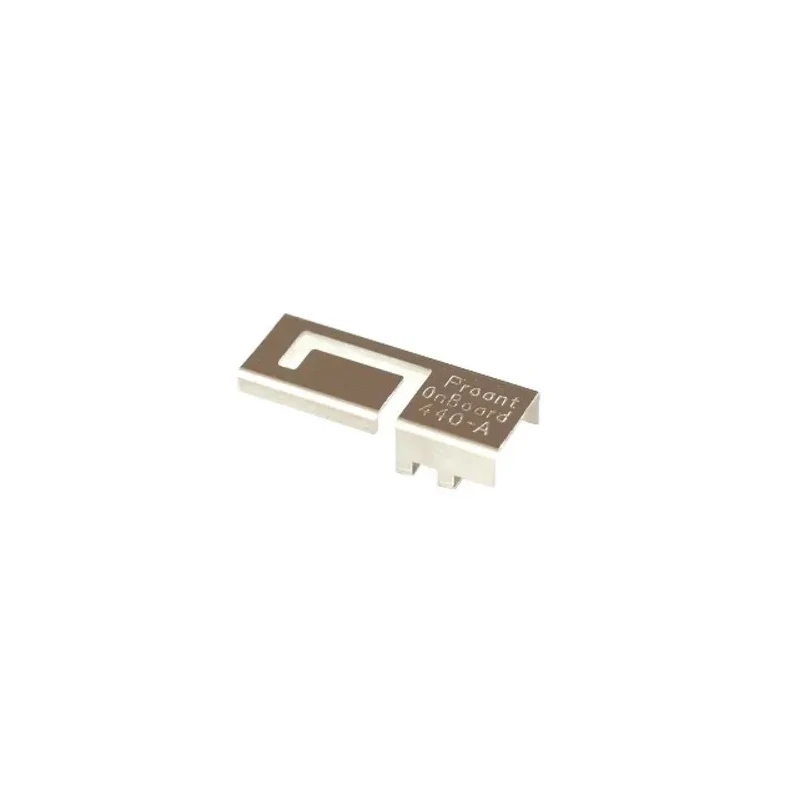

Abracon WiFi Antenna with SMA Connector, Internal Surface Mount, 2400-2500MHz, 4.9dBi Gain PRO-OB-440
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Model | PRO-OB-440 |
| Cable Length | 3.5mm |
| Connector Type | SMA |
| Bandwidth | 2.5GHz |
| Series | PRO-OB-440 |
| Gain | 4.9dBi |
| Standards/Approvals | ISO9001-2015, RoHS, RoHS II |
| Maximum Frequency | 2500MHz |
| Minimum Frequency | 2400MHz |
| Internal/External | Internal |
| RF Protocols | WiFi, Bluetooth (BLE), ZigBee |
| Antenna Mount Type | Surface |
| Directivity | Omni-Directional |
| Number of Bands | 1 |
Key Features
- Uses PIFA technology requiring a ground plane mounting.
- Supports multiple RF protocols including WiFi, Bluetooth (BLE), and ZigBee.
- Compact surface mount design with SMA connector and 3.5mm cable length.
- Omni-directional directivity providing wide signal coverage.
- Bandwidth of 2.5GHz enabling stable and efficient signal transmission.
- Efficiency greater than 65% with mixed linear polarization.
- Recommended ground clearance around NC and RF feed pads for impedance matching network.
- Suitable for industrial, electronic, and communication applications.
Product Description
Abracon PRO-OB-440 WiFi Antenna with SMA Connector is a high-quality internal antenna designed for surface mounting applications in wireless communication systems operating in the 2400MHz to 2500MHz frequency range. Featuring a gain of 4.9dBi and omni-directional directivity, it supports multiple RF protocols including WiFi, Bluetooth (BLE), and ZigBee, making it suitable for versatile industrial and electronic applications.
The antenna employs PIFA technology which requires mounting on a ground plane to achieve optimal performance. For printed circuit boards with multiple layers, it is advantageous to add vias to ensure smooth interconnection of ground areas and avoid splits in the ground plane. Additionally, a ground clearance around the NC pads and the RF feed pad through all PCB layers is essential. Implementing a matching network is recommended to optimize antenna impedance.
This compact antenna includes a 3.5mm cable length with an SMA connector for reliable connectivity. It exhibits a bandwidth of 2.5GHz and a peak gain of 4.9dBi with a mixed linear polarization and an efficiency greater than 65%. The components can be positioned under the antenna making it convenient for compact designs.
The PRO-OB-440 antenna is RoHS compliant and conforms to ISO9001-2015 standards, ensuring quality and environmental safety. It is ideal for integration in industrial, communication, laboratory, and IoT devices that require stable and efficient wireless signal reception and transmission.
Also available is the PRO-EB-450 Evaluation Kit recommended for testing and development purposes with this antenna model. Uses PIFA technology requiring ground plane mounting. Supports WiFi, Bluetooth (BLE), and ZigBee protocols.
Internal surface mount with 3.5mm SMA cable connector. Operates over 2400-2500MHz frequency range with 2.5GHz bandwidth. Offers 4.9dBi peak gain with omni-directional directivity. Efficiency exceeds 65% with mixed linear polarization.
Compact, low cost, and conforming to ISO9001-2015 and RoHS standards. Explore more WiFi Antenna solutions on EnvMart for diverse industrial and commercial wireless communication needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within the 2400MHz to 2500MHz frequency range.
The Abracon PRO-OB-440 antenna has a peak gain of 4.9dBi.
It features an SMA connector for reliable connectivity.
It supports multiple RF protocols including WiFi, Bluetooth (BLE), and ZigBee.
The bandwidth of this antenna is 2.5GHz, enabling stable signal transmission.
This model is designed for surface mounting applications.
It exhibits an efficiency greater than 65% with mixed linear polarization.
It requires mounting on a ground plane and a ground clearance around the NC and RF feed pads for optimal performance.
The antenna includes a compact design with a cable length of 3.5mm.
It is RoHS compliant and conforms to ISO9001-2015 standards.
It is suitable for industrial, communication, laboratory, and IoT devices requiring stable wireless signal reception and transmission.
The PRO-EB-450 Evaluation Kit is recommended for testing and development purposes with this antenna model.
