Broadcom 8 Dot Matrix LED Light Pipe Green 7.5mcd 5 mm HDSP-2133

Free Delivery in India | Lowest Global Shipping Charges

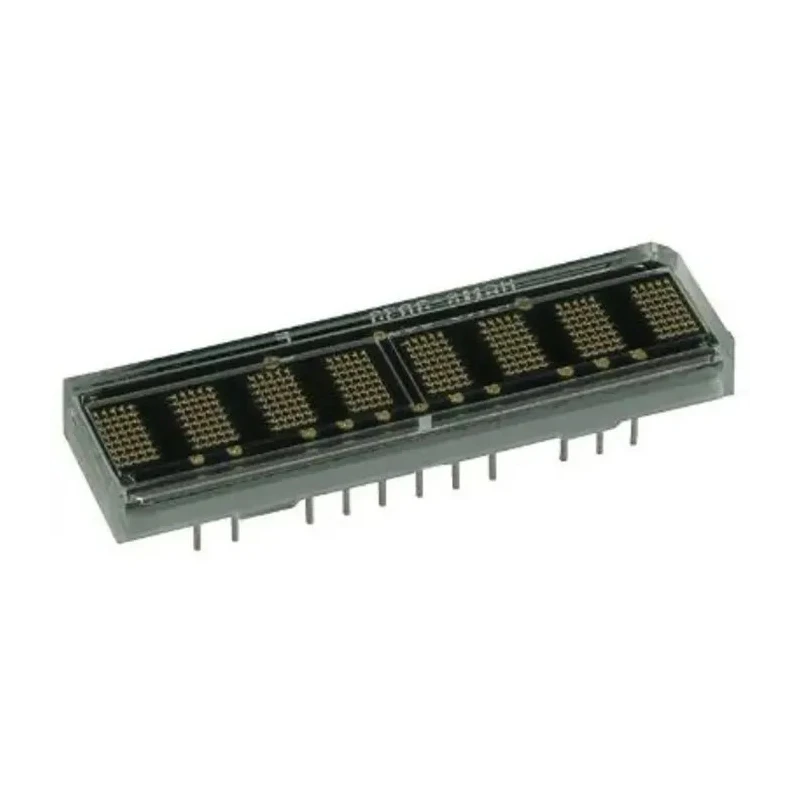

Broadcom 8 Dot Matrix LED Light Pipe Green 7.5mcd 5 mm HDSP-2133

Name: Broadcom 8 Dot Matrix LED Light Pipe Green 7.5mcd 5 mm HDSP-2133
Brand: Broadcom
SKU: 169674
Price: 440.59 USD
Availability: InStock



Category LED Light Pipe Brand Broadcom Condition New

Specifications

Country of Origin	India
Display Type	Dot Matrix
Brand	Broadcom
Model	HDSP-2133
Series	HDSP
Character height	5mm
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-55°C
Number Of Segments	35
Luminous Intensity	7.5mcd
Standards/Approvals	IEC/EN/DIN EN 60747-5-5, UL 1577, RoHS, CSA
LED Colour	Green
Dominant Wavelength	626nm
Colour of Face	White
Number of Characters	8

Key Features

Features a standard 7.64mm, 32-pin DIP package suitable for microprocessor interfaces.
Includes on-board CMOS IC capable of decoding 128 ASCII characters with 16 user-programmable symbols.
Offers seven brightness levels for adjustable display intensity and power consumption.
Operates within a wide temperature range from -55°C to 85°C.
Designed with a white face color and meets IEC/EN/DIN EN 60747-5-5, UL 1577, RoHS, and CSA standards.
Supports individual character flashing, full display blinking, multi-level dimming, blanking, and self-test features.
Suited for applications requiring a hermetic, low power alphanumeric display.
Enables bidirectional eight-bit data bus control for flexible display management.

Product Description

Broadcom HDSP-2133 is an 8-digit, 5x7 dot matrix alphanumeric LED Light Pipe designed for precise and reliable alphanumeric display needs. Featuring a 5.0mm character height, this module is housed in a compact standard 7.64mm, 32-pin DIP package ensuring convenient integration in various electronic systems. The green LED offers a luminous intensity of 7.5mcd at a dominant wavelength of 626nm, providing clear visibility in multiple environments.

Powered by an onboard CMOS integrated circuit, the HDSP-2133 can decode a comprehensive set of 128 ASCII characters from its internal ROM and supports 16 programmable symbols via onboard RAM. This flexibility is enhanced with seven adjustable brightness levels, allowing for tailored display intensity and efficient power management. The device operates effectively across a wide temperature spectrum from -55°C to 85°C, making it suitable for harsh industrial and electronic applications.

The white face enhances contrast and readability, while the module incorporates features such as individual character flashing, full display blinking, and multi-level dimming and blanking. Built-in self-test and clear functions simplify system diagnostics and operation. The HDSP-2133 interfaces through a bidirectional eight-bit data bus, enabling seamless integration with standard microprocessors.

Compliant with IEC/EN/DIN EN 60747-5-5, UL 1577, RoHS, and CSA standards, this alphanumeric display is ideal for industrial, laboratory, and commercial electronic equipment requiring reliable, low power and hermetic display solutions.

Features 128 ASCII character decoding and 16 user-definable characters. Offers programmable display features including flashing and blinking. Adjustable brightness levels for optimized performance. Wide operating temperature range from -55°C to 85°C.

Compliant with multiple international safety and quality standards.
