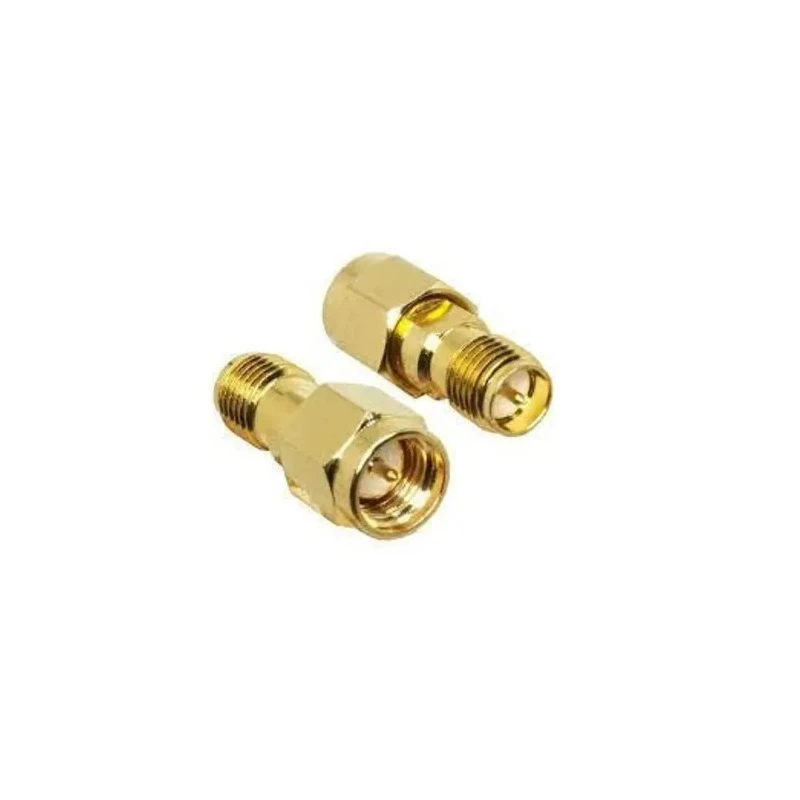

Linx SMA Plug to R-SMA Plug Straight Coaxial Adapter 0 to 18 GHz Frequency Range Gold Plating ADP-SMAM-RPSF-G

The Linx ADP-SMAM-RPSF-G is a high-performance SMA Plug to RP-SMA Plug straight coaxial adapter designed for frequencies ranging from 0 to 18 GHz. It is ideal for applications in RF communication, laboratory testing, and electronic evaluation requiring precise and reliable signal transmission.

Constructed with a brass body finished with gold plating, this adapter ensures excellent conductivity and resistance to corrosion. The gold-plated beryllium copper alloy center contact maintains signal integrity and durability over repeated connections. With 50 ohm impedance and 750 V RMS voltage rating, it meets demanding electrical requirements.

Its 1/4in-36 threaded coupling style provides secure and stable connections, while the straight body orientation facilitates in-line cable assemblies. Equipped with a silicon rubber gasket, the adapter offers effective environmental sealing within the operating temperature range of -65°C to +165°C, making it suitable for harsh industrial environments.

This coaxial adapter conforms to EU and RoHS directives, ensuring compliance with environmental and safety regulations. Its design follows the MIL-STD-348A interface for interoperability with standard RF connectors.

The adapter is commonly used in industrial, laboratory, manufacturing, and telecommunications fields for testing and evaluation of RF products and systems. Its compact length of 0.76 mm allows easy integration into various setups.

This coaxial adapter features gold plating for superior conductivity and corrosion resistance. It has a straight cable orientation and threaded coupling style for secure connections. The adapter supports 50 ohm impedance and offers a voltage rating of 750 V RMS.

Constructed with brass body and beryllium copper alloy contacts for durability and performance. Its temperature range spans from -65°C to +165°C suitable for various environments. The adapter includes a silicon rubber gasket for enhanced sealing and reliability.

Typical uses include testing, evaluation, and RF communication applications. Compliance with EU and RoHS standards ensures environmental and safety adherence. This product originates from Taiwan, Province Of China. Explore other Coaxial Adapters and connectors in the Electronics Components category at EnvMart for diverse industrial and communication needs.
