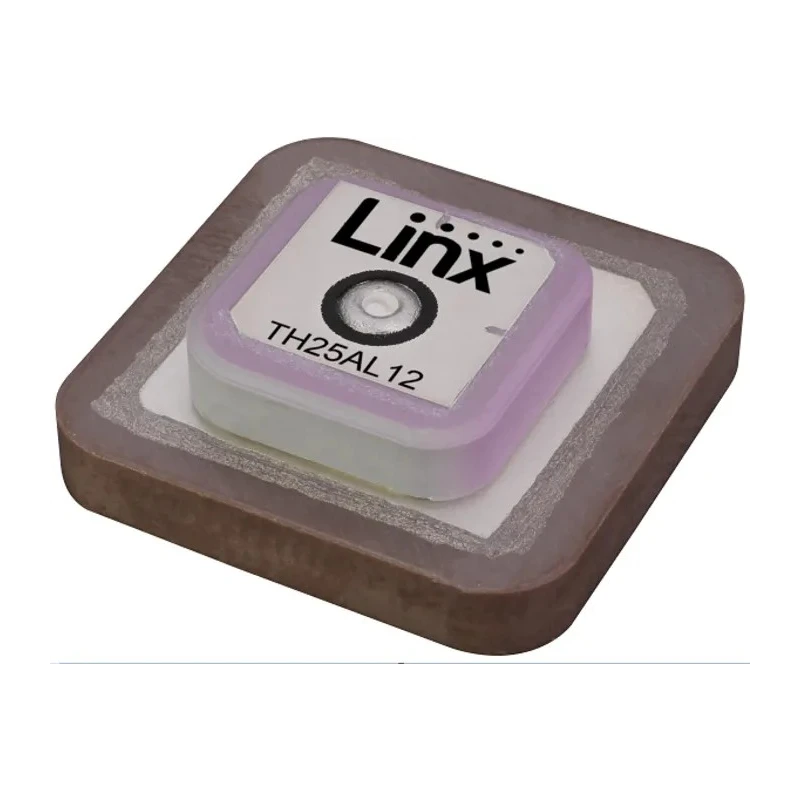

Linx Patch Multi-Band Antenna with Pin-Type Connector, 1210 MHz - 1610 MHz, GPS ANT-GNCP-TH25AL12

Free Delivery in India | Lowest Global Shipping Charges

Linx Patch Multi-Band Antenna with Pin-Type Connector, 1210 MHz - 1610 MHz, GPS ANT-GNCP-TH25AL12

Name: Linx Patch Multi-Band Antenna with Pin-Type Connector, 1210 MHz - 1610 MHz, GPS ANT-GNCP-TH25AL12
Brand: Linx
SKU: 424451
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Linx Condition New

Specifications

Country of Origin	Taiwan
Brand	Linx
Model	ANT-GNCP-TH25AL12
Connector Type	Pin-Type
Series	ANT-GNCP-TH25AL12
Gain	4dB
Standards/Approvals	AEC-Q200 Grade 2
Maximum Frequency	1610MHz
Minimum Frequency	1210MHz
Internal/External	Internal
RF Protocols	GPS
Antenna Physical Form	Patch
Antenna Mount Type	PCB
Directivity	Directional
Antenna Internal Construction	Ceramic Patch Antenna
Number of Bands	2

Key Features

Supports GPS, Galileo, GLONASS, Beidou, and QZSS satellite systems.
Operates across 1210 MHz to 1610 MHz frequency bands.
Ceramic patch antenna with 4 dB directional gain.
Right-hand circular polarization (RHCP) for enhanced signal reception.
Designed for internal PCB adhesive mounting and solder pin connection.
Meets automotive standard AEC-Q200 Grade 2.
Extended operating temperature up to +105 °C.
Compact form suitable for industrial and automotive applications.

Product Description

The Linx ANT-GNCP-TH25AL12 is a precision patch multi-band antenna designed for reliable GPS and GNSS signal reception on frequencies ranging from 1210 MHz to 1610 MHz. It supports multiple satellite navigation systems including GPS, Galileo, GLONASS, Beidou, and QZSS across L1/E1/B1 and L2/L2C bands, making it ideal for applications requiring rapid satellite acquisition and accurate positioning.

This internal ceramic patch antenna features a directional radiation pattern orthogonal to the antenna surface. It employs right-hand circular polarization (RHCP) to improve signal reliability in challenging environments. The antenna is designed for PCB adhesive mounting and includes a pin-type connector for straightforward soldering onto printed circuit boards, supporting compact and robust integration in industrial and commercial electronics.

Built to AEC-Q200 Grade 2 standards, the ANT-GNCP-TH25AL12 ensures automotive-level reliability and performance. The antenna’s extended operating temperature range to +105 °C contributes to its ability to function reliably in demanding conditions.

This product is engineered primarily for use in industries such as automotive, industrial automation, telecommunications, and navigation systems where precise location data is critical. Its compact ceramic construction and high gain of 4 dB enhance signal quality and device performance.

Supports global satellite navigation systems for comprehensive location tracking. Robust ceramic patch design with directional gain ensures reliable signal transmission. Ideal for integration on PCBs with adhesive mounting and solder pin connections.

Conforms to automotive-grade quality standards (AEC-Q200 Grade 2). Extended operational temperature range enhances application versatility. Compact design for space-constrained electronic assemblies. Explore more Linx high-performance multi-band antennas and related electronic components for advanced connectivity solutions at EnvMart.
