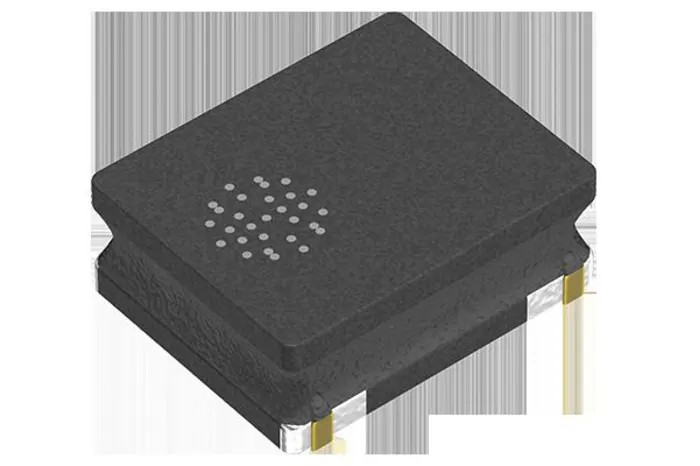

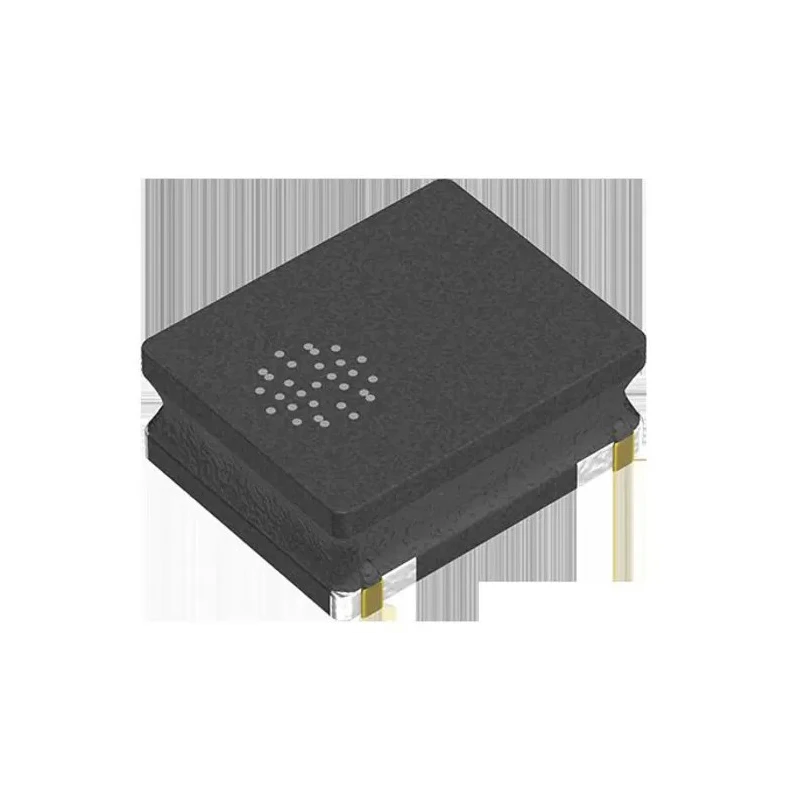

TDK VLS-CX-1 252010 Shielded Wirewound Surface Mount Inductor, Ferrite Core, 1μH ±20%, 2.29A, VLS252010CX-1R0M-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 1mm |
| Length | 2.5mm |
| Model | VLS252010CX-1R0M-1 |
| Depth | 2mm |
| Series | VLS-CX-1 |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 1μH |
| Standards/Approvals | Lead Free, REACH SVHC-Free, RoHS, Halogen Free |
| Package/Case | 252010 |
| Maximum DC Current | 2.29A |
| Maximum DC Resistance | 65mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Application guides | Smart phones/tablets |
Key Features
- Shielded wirewound design ensures reliable performance in power circuits.
- Inductance rated at 1μH with ±20% tolerance for consistent operation.
- Maximum DC current handling of 2.29A supports demanding electronic applications.
- Compact package size (2.5mm x 2mm x 1mm) fits high-density assemblies.
- Low DC resistance of 65mΩ for efficient current flow and minimal heat generation.
- Wide operating temperature range of -40°C to 105°C accommodates diverse environments.
- Complies with Lead-Free, RoHS, REACH SVHC-Free, and Halogen-Free standards.
- Ferrite core construction enhances magnetic shielding and noise reduction.
Product Description
TDK VLS252010CX-1R0M-1 is a high-quality shielded wirewound surface mount inductor constructed with a ferrite core, engineered for use in advanced power supply circuits. With a precise inductance of 1μH and a tolerance of ±20%, it ensures stable magnetic performance essential for electronic applications that require accurate power regulation and filtering.
This compact inductor utilizes magnetic shield-type winding, making it ideal for environments where electromagnetic interference must be minimized. Its wirewound construction optimizes the ferrite magnetic figure, enabling higher current capability and lower DC resistance, which translates to enhanced efficiency and reliability.
The product offers a maximum DC current rating of 2.29A and a low DC resistance of 65mΩ, facilitating robust current handling with minimal energy loss. Its 252010 package is specifically designed for surface mount configurations, measuring just 2.5mm in length, 2mm in depth, and 1mm in height, thus supporting high-density electronic assemblies such as portable devices and compact modules.
VLS252010CX-1R0M-1 complies with Lead-Free, RoHS, REACH SVHC-Free, and Halogen-Free requirements, making it suited for manufacturers prioritizing environmental and safety standards. The core material is ferrite, reinforcing its effectiveness in noise suppression and performance within a temperature range of -40°C to 105°C.
Typical applications include smart phones, tablet terminals, hard disk drives, solid-state drives, digital cameras, mobile display panels, portable gaming devices, and compact power supply modules. These sectors demand reliable and efficient inductors capable of supporting dense assembly and high-power needs.
The termination style is surface mount, supporting automated PCB assembly processes. Shielding is integral, enhancing electromagnetic compatibility especially in sensitive electronics. Not targeted for automotive standards, the inductor is optimized for consumer and industrial electronics.
Explore the full range of Surface Mount Inductors in the Electronics & Electricals category, and browse more TDK magnetic components for precision power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 1μH with a tolerance of ±20%.
It has a maximum DC current rating of 2.29A, making it suitable for demanding electronic applications.
This unit measures 2.5mm in length, 2mm in depth, and 1mm in height, fitting well in high-density assemblies.
The inductor has a low DC resistance of 65mΩ, which contributes to efficient current flow and minimal heat generation.
It operates within a temperature range of -40°C to 105°C, accommodating diverse environmental conditions.
This inductor complies with Lead-Free, RoHS, REACH SVHC-Free, and Halogen-Free standards.
It features a wirewound construction with a ferrite core, which enhances its magnetic shielding and noise reduction capabilities.
The termination style is surface mount, which supports automated PCB assembly processes.
Typical applications include smart phones, tablet terminals, hard disk drives, solid-state drives, and portable gaming devices.
The shielding enhances electromagnetic compatibility, making it ideal for sensitive electronic environments.
It comes in a 252010 package, which is designed for surface mount configurations.
The ferrite core construction enhances magnetic shielding and noise reduction, improving performance in power circuits.
