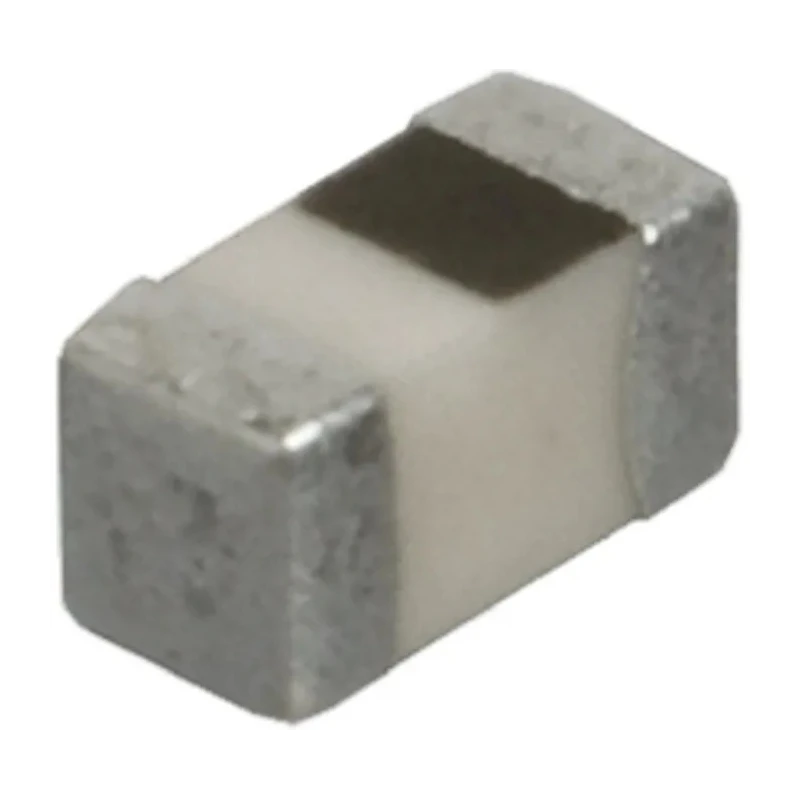

TDK 0402 Shielded Multilayer Surface Mount Inductor 100 nH ±5 % 200 mA Idc Q:8 MLG1005S

TDK MLG1005S 0402 Shielded Multilayer Surface Mount Inductor is a precision passive component designed for advanced electronics requiring compact and reliable inductors. Its 100 nH inductance with ±5 % tolerance provides consistent performance ideal for radio frequency (RF) and high-frequency signal applications.

The 0402 package offers a miniature footprint measuring 1 mm in length, 0.5 mm in height, and 0.5 mm in depth, enabling dense PCB layouts in mobile phones, high frequency tuners, and wireless communication devices such as Bluetooth and WLAN modules.

This inductor features shielding to minimize electromagnetic interference (EMI) and a multilayer construction that enhances its electrical characteristics. It operates over a wide temperature range from -55°C to 125°C, ensuring durability and stable performance under varied environmental conditions.

With a maximum DC current rating of 200 mA and a low maximum DC resistance of 2 Ω, this component delivers efficient current handling and lower power losses. Its minimum quality factor of 8 and a maximum self-resonant frequency of 900 MHz suit applications demanding high-frequency stability and low signal loss.

The inductor's surface mount termination style facilitates automated PCB assembly, while its 2 pin count supports straightforward circuit integration. The product is RoHS compliant and moulded to meet environmental standards and mechanical robustness.

Typical use cases include mobile phones, high frequency tuners, Bluetooth devices, WLAN systems, and other RF electronics where compact size and EMI shielding are critical. The MLG1005S series allows designers to achieve high performance in miniature electronic devices.

Supports a maximum DC current of 200 mA. Compact 0402 package dimensions of 1 mm × 0.5 mm × 0.5 mm. Shielded multilayer construction for EMI reduction. Wide operating temperature range from -55°C to 125°C. Low DC resistance of 2 Ω to minimize power loss.

High self-resonant frequency of 900 MHz ensures application in high-frequency circuits. Minimum quality factor of 8 for efficient signal handling. Surface mount termination style for automated assembly. RoHS compliant and environmentally safe.

Suitable for mobile, Bluetooth, and WLAN applications. Explore the full range of TDK Surface Mount Inductors on EnvMart for diverse electronic design requirements.
