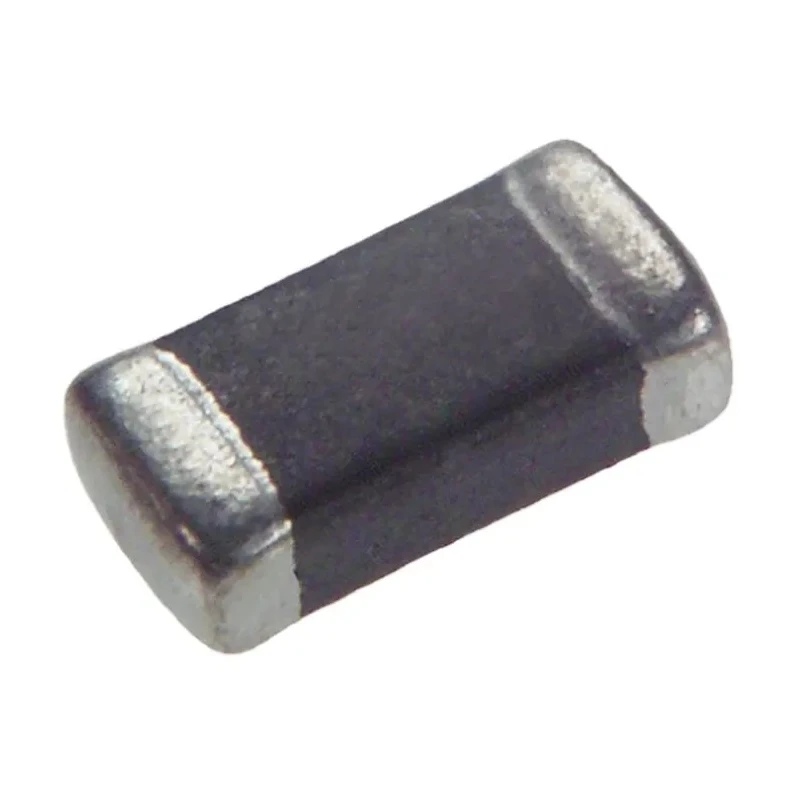

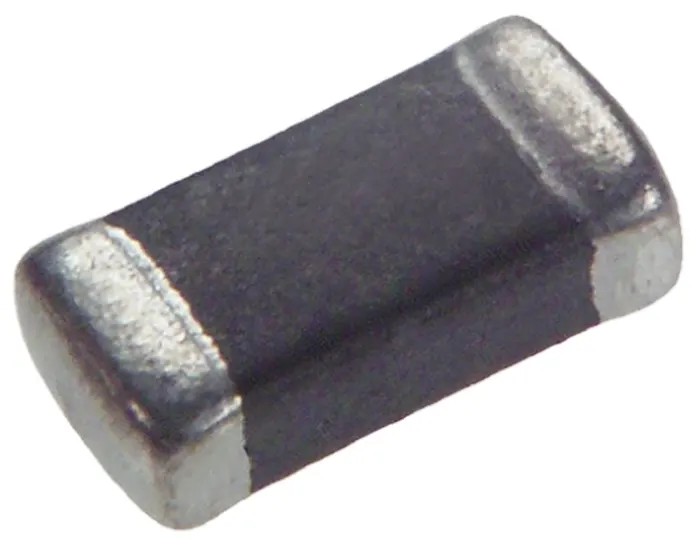

TDK 0.6 mm Surface Mount 0603 Chip Ferrite Bead 600 Ω Impedance at 100 MHz MMZ1608B601CTAH0

Free Delivery in India | Lowest Global Shipping Charges

TDK 0.6 mm Surface Mount 0603 Chip Ferrite Bead 600 Ω Impedance at 100 MHz MMZ1608B601CTAH0



Category Ferrite Bead Brand TDK Condition New

Specifications

Country of Origin	Japan
Brand	TDK
Height	0.6mm
Length	1.6mm
Model	MMZ1608B601CTAH0
Depth	0.8mm
Packaging	Taping
Mount Type	Surface
Current Rating	500mA
Series	MMZ
Maximum Operating Temperature	125°C
Package Type	0603
Sub Type	Chip Bead
Minimum Operating Temperature	-55°C
Standards/Approvals	Compatible with lead-free solders, Halogen-Free, RoHS Directive
Maximum DC Resistance	0.4Ω
Impedance at 100 MHz	600Ω

Key Features

Multilayer chip bead in 0603 surface mount package for high-density PCB mounting.
Provides 600 Ω impedance at 100 MHz for effective EMI noise suppression.
Maximum DC resistance of 0.4 Ω ensures minimal signal loss.
Current rating of 500mA suitable for signal line noise filtering.
Wide operating temperature range from -55°C to 125°C for reliable performance.
Halogen-free, RoHS compliant, and compatible with lead-free solders.
Magnetically shielded multilayer design improves high-frequency response.

Product Description

TDK MMZ1608B601CTAH0 is a high-performance surface mount ferrite bead designed for EMI noise suppression on signal lines in electronic devices. It features a compact 0603 package with 0.6 mm height, enabling dense mounting on printed circuit boards.

This multilayer chip bead offers a characteristic impedance of 600 Ω at 100 MHz, effectively reducing electromagnetic interference in applications such as cellular phones, portable audio devices, digital still cameras, and portable gaming consoles.

The internal conductor design minimizes floating capacitance between conductors, improving high-frequency response and expanding EMI suppression capability into the GHz range. With a maximum DC resistance of 0.4 Ω and a current rating of 500mA, this component ensures both efficient filtering and minimal signal degradation.

It operates reliably across a wide temperature range from -55°C to 125°C, suitable for demanding industrial and consumer electronics environments. The ferrite bead complies with RoHS Directive, is halogen-free, and compatible with lead-free solder processes, supporting environmentally friendly manufacturing.

Multilayer chip bead in 0603 surface mount package for high-density PCB mounting. Provides 600 Ω impedance at 100 MHz for effective EMI noise suppression. Maximum DC resistance of 0.4 Ω ensures minimal signal loss. Current rating of 500mA suitable for signal line noise filtering.

Wide operating temperature range from -55°C to 125°C for reliable performance. Halogen-free, RoHS compliant, and compatible with lead-free solders. Compact dimensions: 1.6 mm length, 0.8 mm depth, 0.6 mm height for precise PCB footprint.

Magnetically shielded multilayer design improves high-frequency response. This product is ideal for use in industrial, consumer electronics, telecommunications, and automotive signal line noise suppression applications. Explore more high-quality TDK EMI filters and Ferrite Beads in EnvMart's comprehensive catalog for professional and industrial electronics design.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It provides an impedance of 600 Ω at 100 MHz, which is effective for EMI noise suppression.

The current rating for this ferrite bead is 500 mA, making it suitable for signal line noise filtering.

This model has dimensions of 1.6 mm in length, 0.8 mm in depth, and 0.6 mm in height.

The maximum DC resistance is 0.4 Ω, which helps ensure minimal signal loss.

It operates reliably within a wide temperature range from -55°C to 125°C.

Yes, it is RoHS compliant and also halogen-free, supporting environmentally friendly manufacturing processes.

This ferrite bead is designed for surface mounting, specifically in a 0603 package.

It is commonly used in applications such as cellular phones, portable audio devices, digital still cameras, and portable gaming consoles for EMI noise suppression.

This model is packaged in taping, which is suitable for automated assembly processes.

The internal conductor design minimizes floating capacitance between conductors, enhancing high-frequency response and expanding EMI suppression capability into the GHz range.

It belongs to the MMZ series, which is known for its effective EMI noise suppression capabilities.

It is compatible with lead-free solders and complies with the RoHS Directive.
