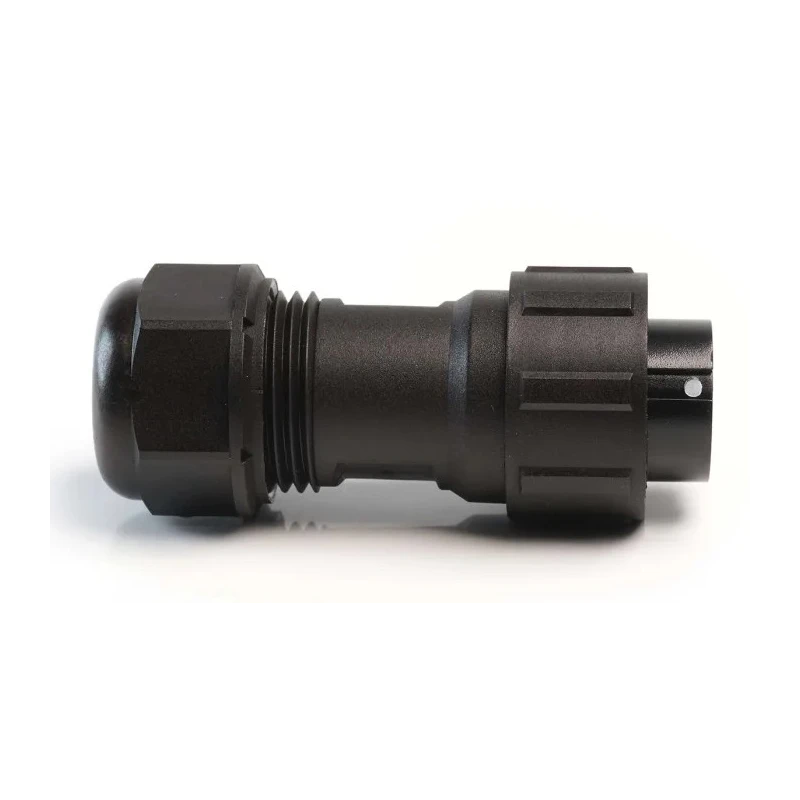

RS PRO Industrial Circular Connector, 3 Contacts, Cable Mount, Plug, Male, IP68, 10A, 500V, Polyamide 66 Shell 124-6662
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 10A |
| Model | 124-6662 |
| IP Rating | IP68 |
| Mount Type | Cable |
| Housing Material | Polyamide 66, Polycarbonate |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 3 |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shell Size | 17 mm |
| Mating Type | Threaded |
| Connector Size | Standard |
| Plug/Socket | Plug |
| Cable outer diameter acceptance | 6 mm - 10 mm 124-6661 |
| Panel hole cutout diameter | 17 mm |
Key Features
- Supports 10A current with a voltage rating of 500V.
- Constructed with high-quality Polyamide 66 and Polycarbonate housing materials for strength and durability.
- Threaded mating type with a standard shell size of 17 mm for secure connections.
- Gold-plated brass contacts ensure reliable conductivity and corrosion resistance.
- Operates reliably between -40°C and 85°C temperature range.
- Accepts cable outer diameters from 6 mm to 10 mm with crimp termination for secure cable attachment.
- Designed for straight orientation and 3 pole format to meet industrial needs.
- Ideal for industrial electronic, power, and control applications requiring rugged connectors.
Product Description
RS PRO 124-6662 is a robust industrial circular connector plug designed for demanding electronic and power applications. Featuring 3 gold-plated brass contacts with crimp termination, this cable mount connector supports currents up to 10A and voltages up to 500V, ensuring stable and secure electrical performance.
The housing is molded from durable Polyamide 66 and polycarbonate materials providing excellent mechanical strength and chemical resistance. With an IP68 ingress protection rating, this connector excels in harsh environments by preventing dust and water ingress, making it suitable for outdoor and industrial settings.
The connector has a standard shell size of 17 mm and accommodates cable diameters ranging from 6 mm to 10 mm. The threaded mating type ensures a secure and vibration-resistant connection. Its operational temperature range from -40°C to 85°C caters to a wide range of climatic conditions.
Its straight orientation and 3 pole configuration make it ideal for power distribution, control equipment, and industrial machinery requiring reliable cable connections. The gold plating on the contacts guarantees excellent conductivity and long-term corrosion resistance.
This RS PRO circular connector delivers dependable performance for electrical and industrial applications, combining rugged mechanical construction with precise electrical contact design and an easy-to-use cable termination system.
Supports 10A current at up to 500V voltage rating. Gold-plated brass contacts for superior conductivity and corrosion resistance. Housing made of Polyamide 66 and Polycarbonate for durability. Threaded mating type with standard 17 mm shell size.
IP68 rated to withstand harsh environmental conditions. Wide operating temperature range from -40°C to 85°C. Accommodates cable outer diameters from 6 mm to 10 mm. Crimp termination ensures secure cable attachment. 3 pole format and straight orientation for industrial use.
Choose this RS PRO 124-6662 circular connector for high-performance, reliable cable plug connections in industrial electronics, power distribution, and control systems. Explore EnvMart's extensive range of Circular Connectors and industrial power connectors for all your electrical and electronics application needs.
