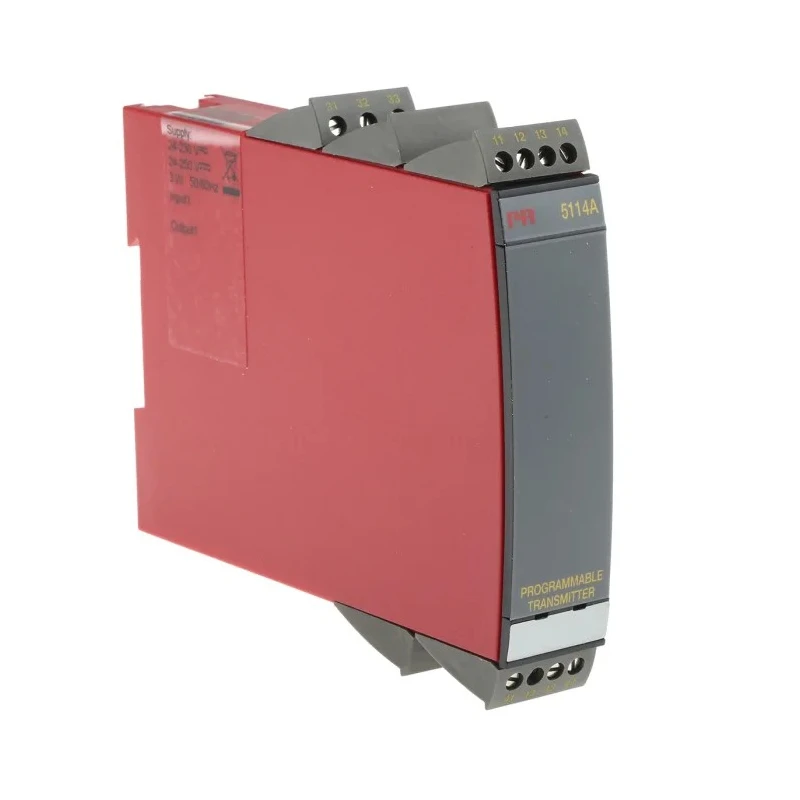

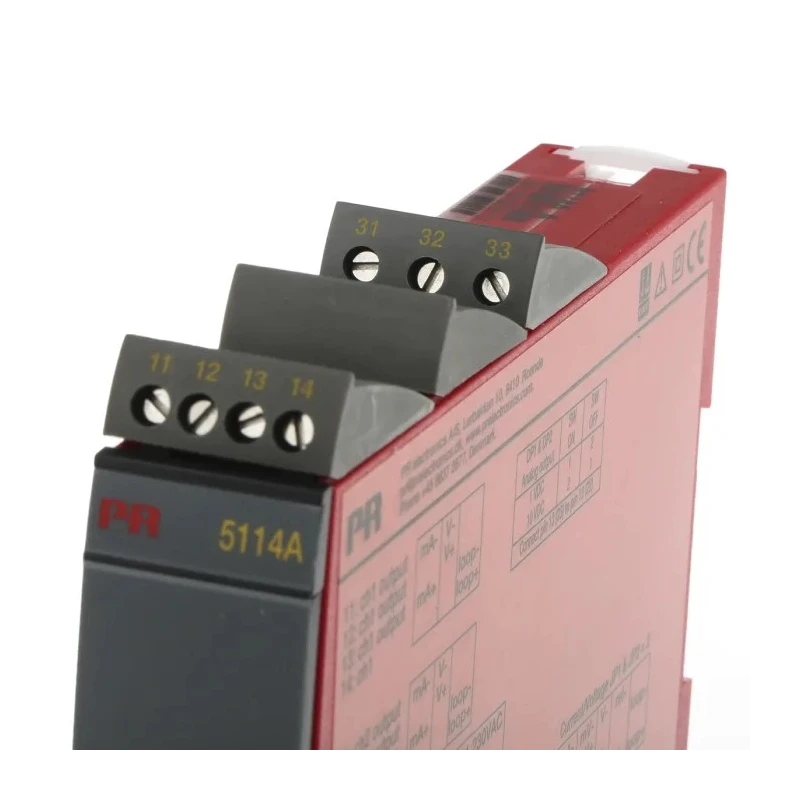

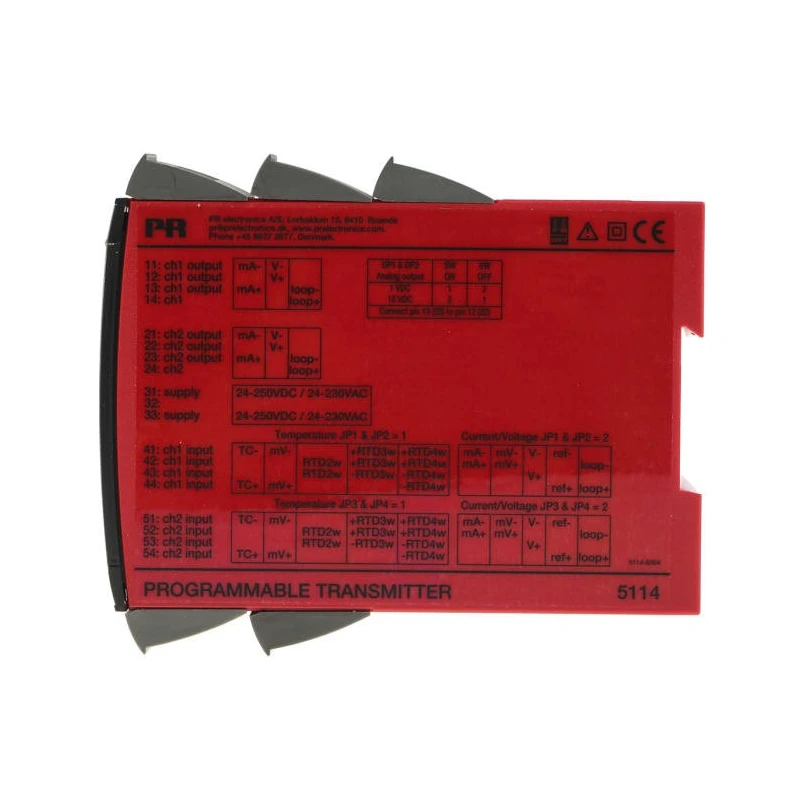

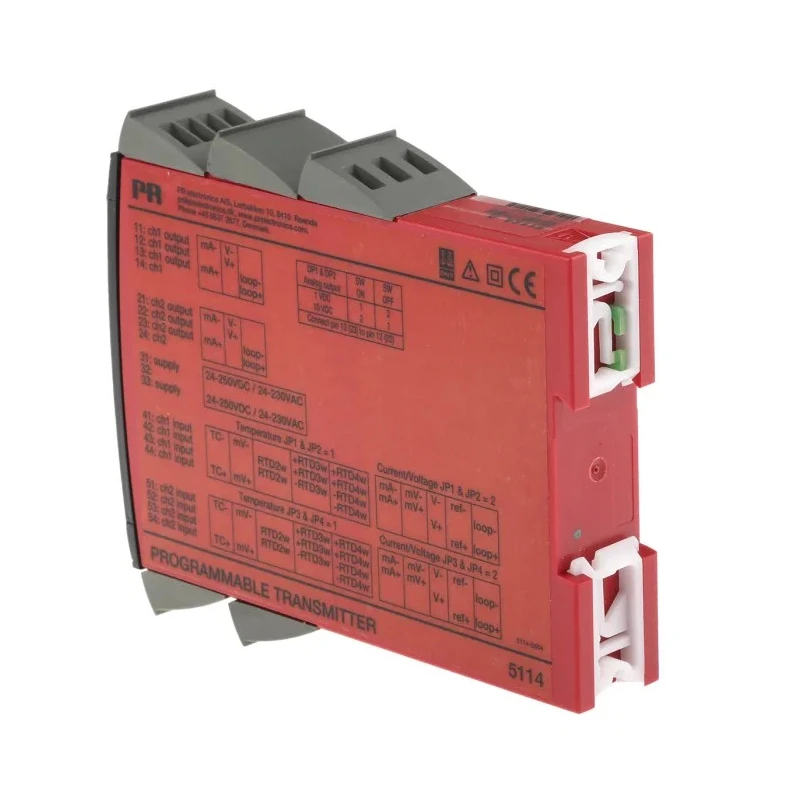

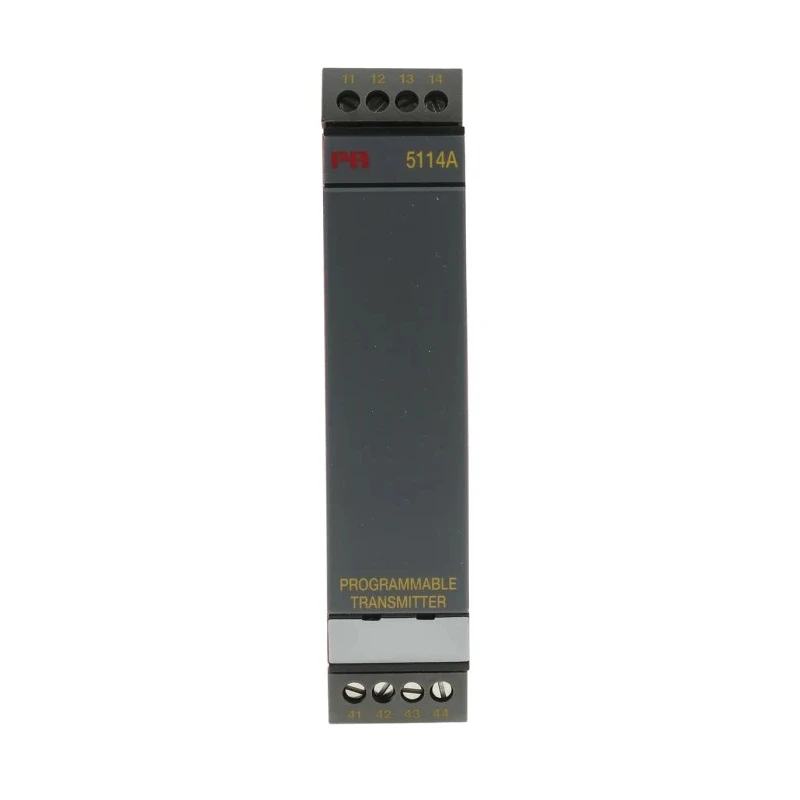

PR Electronics 5 Series Signal Conditioner, Current Input, Voltage Output, 21.6V, 253V Supply, ATEX 5114AA

PR Electronics presents the 5114AA model from their 5 Series Signal Conditioners, crafted for industrial and hazardous environment applications. This device converts current input signals to voltage output with precision and reliability. It supports a supply voltage range of 21.6V to 253V and is ATEX certified, making it suitable for use in potentially explosive atmospheres.

This signal conditioner features 3.75kV AC galvanic isolation providing protection from electrical noise and interference, enhancing the safety and integrity of control systems. The input range covers -150 to 150 mV with an output range of 0 to 10 V, suitable for interfacing diverse control and monitoring equipment.

Designed for convenience, the module mounts easily on DIN rails and provides screw terminals for robust electrical connection. The unit operates efficiently within a wide temperature range of -20°C to 60°C, ensuring operation in harsh industrial conditions.

Compliance with major global certifications such as CE, CSA, EAC, DNV GL, and UL underscores the product's reliability and safety. The single-channel design fits applications requiring precise single-point signal conditioning.

The 5114AA is configurable via the PR 4501 detachable display, allowing simple programming of input and output parameters and advanced functions like two-point calibration, process simulation, and diagnostics with password protection to prevent unauthorized configuration changes.

The unit supports a variety of input signals including RTD, thermocouples, millivolts, linear resistance, milliamps, and voltages. Automatic three- or four-wire cable compensation and programmable two-wire compensation improve measurement accuracy.

Selectable active or passive current output and voltage output types provide versatile signal interfacing. Universal voltage supply accommodates challenging power environments. Configurable sensor error detection complies with NAMUR NE43 standards.

Protections and separations for PELV/SELV installations ensure installation safety.

Manufactured in Denmark, this product exemplifies high European quality standards, ideal for industrial, electrical, automation, and process control applications requiring reliable signal conditioning. The signal conditioner is ideal for applications in automation, manufacturing, water treatment, HVAC, and hazardous area installations.

Enhance your industrial signal processing with the PR Electronics 5114AA signal conditioner, available through EnvMart’s comprehensive electronics components category.
