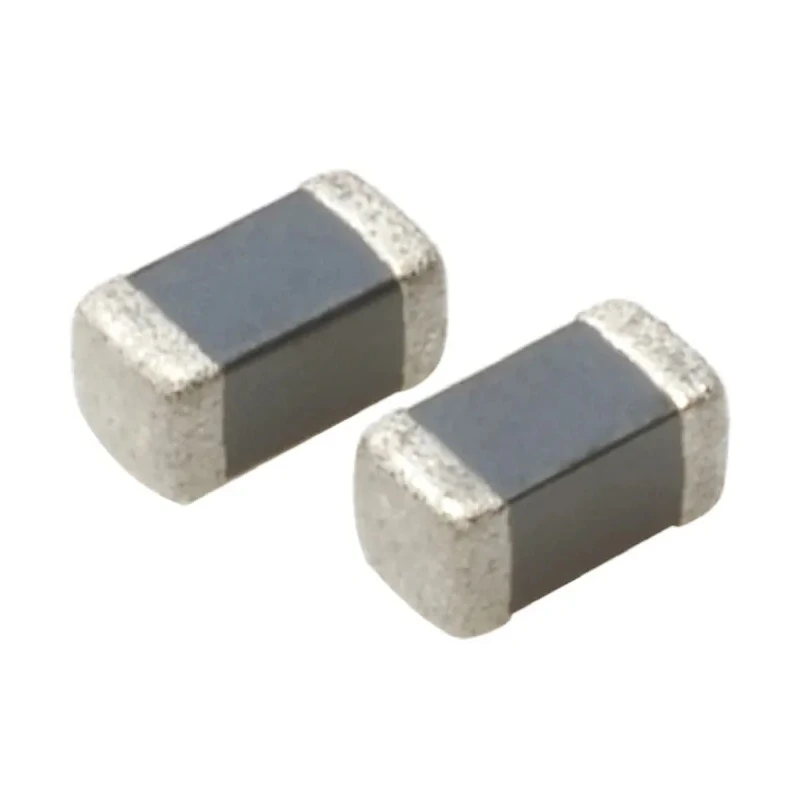

TDK 0603 Shielded Multilayer Surface Mount Inductor Ferrite Core 22μH ±10% 2mA Idc Q20 MLF1608C220KTA00
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TDK |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | MLF1608C220KTA00 |
| Depth | 0.8mm |
| Series | MLF |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 0603 |
| Maximum DC Current | 2mA |
| Pin Count | 2 |
| Maximum DC Resistance | 1.7Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 38MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Multilayer |
| TDK, MLF 22 μH ±10% Ferrite Multilayer SMD Inductor, 0603 (1608M) SRF | 38MHz Q: 20 2mA dc 1.7Ω RdcBrand: TDK |
Key Features
- Constructed with a multilayer design for enhanced signal performance.
- Compact 0603 package (1.6mm x 0.8mm x 0.8mm) suitable for dense PCB layouts.
- Magnetically shielded with a ferrite core to reduce electromagnetic interference.
- Operating temperature range from -40°C to 85°C for reliable usage.
- Maximum DC resistance of 1.7Ω ensuring minimal power loss.
- Rated self-resonant frequency of 38MHz and a minimum quality factor of 20.
- Supports lead-free and reflow soldering processes with excellent heat resistance.
- Complies with RoHS standards for environmental and safety compliance.
Product Description
TDK MLF1608C220KTA00 is a 0603 size shielded multilayer surface mount inductor featuring a ferrite core, offering an inductance of 22μH ±10% tolerance. Designed to support a maximum DC current of 2mA with a quality factor of 20, this inductor provides reliable performance for signal line applications.
The multilayer construction ensures compactness and high reliability, while the magnetic shielding reduces electromagnetic interference, making it suitable for sensitive electronic environments. Its compact dimensions of 1.6mm length, 0.8mm width, and 0.8mm height enable use in space-constrained PCB layouts.
The component supports both flow and reflow soldering techniques, including lead-free soldering due to its excellent heat resistance. It operates efficiently within the temperature range of -40°C to 85°C, ensuring stability under various environmental conditions.
Maximum DC resistance is rated at 1.7Ω, minimizing power loss during operation. The inductor has a self-resonant frequency of 38MHz, enabling use in high-frequency circuits. Compliance with RoHS standards confirms the product's adherence to environmental regulations, making it suitable for modern electronics manufacturing.
Common applications include use in digital cellular phones, tuners, personal computers, audio devices, and various other electronic appliances requiring compact, shielded inductors.
Constructed with multilayer design for signal integrity and reliability. Magnetically shielded with ferrite core to reduce interference. Compact 0603 package for versatile PCB placement. Supports lead-free and reflow soldering processes.
Wide operating temperature range for industrial and consumer electronics. RoHS compliant for environmental safety. Low DC resistance ensures efficient current handling. High self-resonant frequency supports RF applications.
Suitable for mobile phones, tuners, PCs, and audio devices. Explore more Surface Mount Inductors to suit various electronic design needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 22μH with a tolerance of ±10%.
The maximum DC current for this inductor is rated at 2mA.
The dimensions of this unit are 1.6mm in length, 0.8mm in width, and 0.8mm in height.
The maximum DC resistance is rated at 1.7Ω, ensuring minimal power loss during operation.
It has a rated self-resonant frequency of 38MHz, suitable for high-frequency applications.
The operating temperature range is from -40°C to 85°C, allowing for reliable performance in various environments.
This inductor supports both lead-free and reflow soldering processes, making it versatile for modern manufacturing.
It has a minimum quality factor of 20, which contributes to its performance in signal applications.
Yes, it complies with RoHS standards, ensuring it meets environmental and safety regulations.
The core material of this model is ferrite, which aids in reducing electromagnetic interference.
Common applications include digital cellular phones, tuners, personal computers, and audio devices.
It comes in a compact 0603 package, making it suitable for dense PCB layouts.
