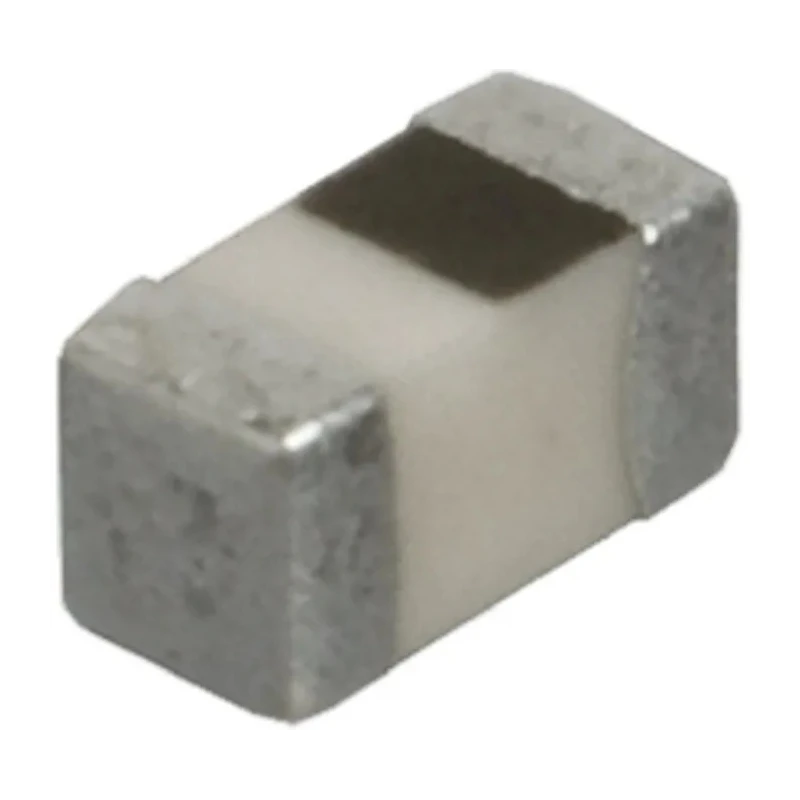

TDK 0402 Shielded Multilayer Surface Mount Inductor 9.1 nH ±5% 500 mA Idc Q:8 MLG1005S

TDK MLG1005S 0402 Shielded Multilayer Surface Mount Inductor offers a precise inductance of 9.1 nH with a tolerance of ±5%, optimized for high-frequency electronic circuits. This surface mount device features a compact 0402 package with dimensions of 1 mm length, 0.5 mm height, and 0.5 mm depth, making it ideal for space constrained applications.

The inductor is constructed with a multilayer monolithic structure and includes shielding to reduce electromagnetic interference, enhancing circuit performance in sensitive environments such as mobile phones, Bluetooth devices, WLAN, and high-frequency tuners.

Rated for a maximum DC current of 500 mA with a low resistance of 300 mΩ, it ensures efficient current flow and thermal stability up to 125°C. The high quality factor (Q) of 8 at a self-resonant frequency of 3.8 GHz provides superior signal integrity for RF applications.

This TDK 0402 MLG1005S inductor operates effectively over a wide temperature range from -55°C to 125°C, complying with RoHS standards and molded for mechanical reliability. Its surface mount termination style simplifies automated PCB assembly processes.

Compact 0402 package for high density circuit boards. Shielded multilayer design for EMI reduction. Stable inductance with ±5% tolerance. Supports 500 mA maximum DC current with low resistance. High Q factor ideal for RF and high frequency applications.

Wide operating temperature range for durability. RoHS compliant for environmental safety. Molded construction enhances durability and handling.

This multilayer Surface Mount Inductor is widely used in industrial electronics, telecommunications, wireless communication devices, and consumer electronics for filtering, tuning, and energy storage applications.
