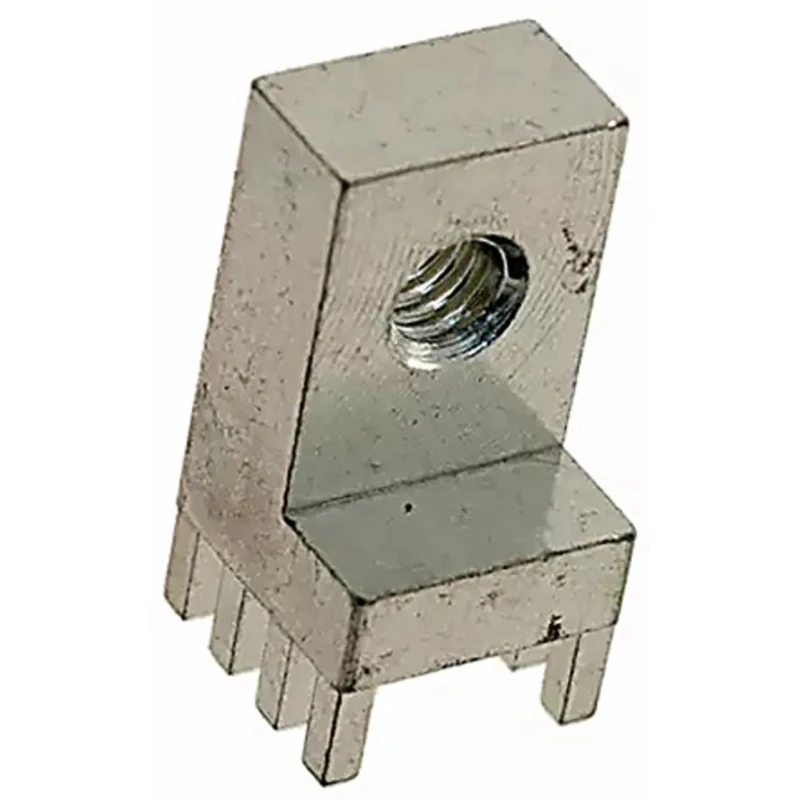

Wurth Elektronik Brass Right Angle Screw Terminal 160A, Snap-In, Pitch 2.54mm, M4 Screw Size 7461063

Wurth Elektronik 7461063 is a Brass Right Angle Screw Terminal designed for transferring high currents up to 160A safely and reliably. It is constructed from brass with a tin-plated body for excellent corrosion resistance and electrical conductivity. The connector features a right angle orientation and uses press-fit snap-in mounting technology, which creates a gas-tight connection to the PCB, ensuring robustness against vibration and shock.

This press-fit technology eliminates the need for soldering, allowing for easier and faster assembly while reducing thermal loads on circuit boards. The terminal includes 8 legs arranged in 4 rows with a 2.54mm pitch, offering stable and precise mechanical and electrical integration. Its M4 screw size provides secure and effective wire termination.

Designed for demanding industrial and commercial applications, these screw terminals are ideal for use in power supplies, converters, battery management systems, and DC to AC inverter systems. Their rugged construction and reliable connection make them suitable for renewable energy sectors, medical devices, automotive electronics, agricultural machinery, and industrial manufacturing equipment.

Constructed from brass with tin plating to prevent corrosion. Right angle orientation for optimal PCB layout and space saving. Snap-in press-fit technology ensures secure and vibration-resistant mounting. Rated for high current of 160A with capability up to 300A in some configurations.

Includes 8 legs in 4 rows with 2.54mm pitch for accurate PCB integration. Utilizes M4 screw size for reliable wire attachment. Eliminates soldering, reducing assembly time and thermal impact on PCB. Highly reliable for industrial applications including renewable energy and automotive.

Cost-effective solution for high current PCB power element connections.

These Wurth Elektronik REDCUBE series screw terminals represent a high-quality solution for PCB mounted power connections where durability and performance under stress are essential. Their design enables easy integration into mass production with simple tooling, providing reliable electrical performance and mechanical stability.
