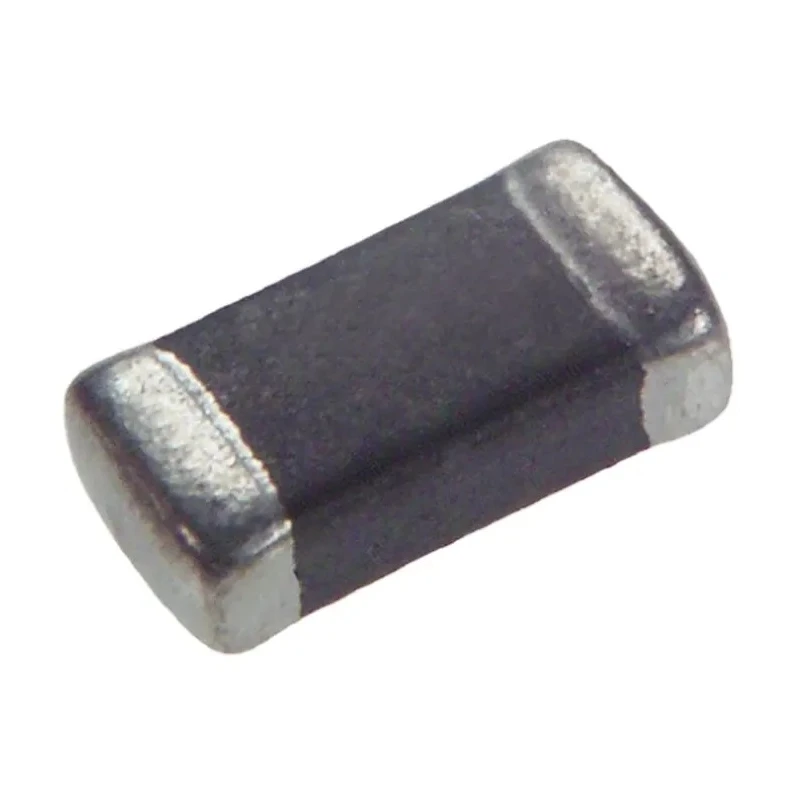

TDK 0.8 mm Surface Mount Ferrite Bead 0603 Chip Bead 1500 Ω Impedance at 100 MHz MMZ1608Y152BTA00

TDK MMZ1608Y152BTA00 is a 0.8 mm surface mount multilayer chip ferrite bead in a 0603 package, providing 1500 Ω impedance at 100 MHz for effective electromagnetic interference (EMI) suppression.

This chip bead features a magnetically shielded multilayer construction, allowing for high-density mounting configurations on printed circuit boards. Its internal conductor design reduces floating capacitance, greatly improving high-frequency characteristics and expanding noise suppression into the GHz range.

Designed for signal line noise removal, the MMZ1608Y152BTA00 bead is ideal for use in mobile phones, portable audio devices, digital still cameras, and portable gaming machines. It supports a maximum operating temperature of 125°C and a minimum operating temperature of -55°C, allowing for robust operation in demanding industrial and consumer electronics environments.

The device has a maximum DC resistance of 0.6 Ω and a current rating of 300 mA, making it suitable for low-power circuit lines requiring EMI filtering. Its compact 1.6 mm length and 0.8 mm height and depth dimensions facilitate integration into dense PCB layouts, while surface mounting enables efficient automated soldering processes.

This chip bead provides high impedance to reduce EMI noise in electronic circuits. Compatible with automated surface mount assembly technology. Wide operating temperature range ensures reliability across various conditions.

Supports effective EMI suppression in high-frequency applications up to GHz range. Compact dimensions enable use in space-constrained designs. Ideal for industrial, telecommunications, consumer electronics, and automotive signal line filtering.

As a high-quality ferrite bead from the TDK MMZ1608 series, this component enhances signal integrity and device reliability. Explore more products in the Ferrite Beads category for comprehensive EMI filter solutions at EnvMart.
