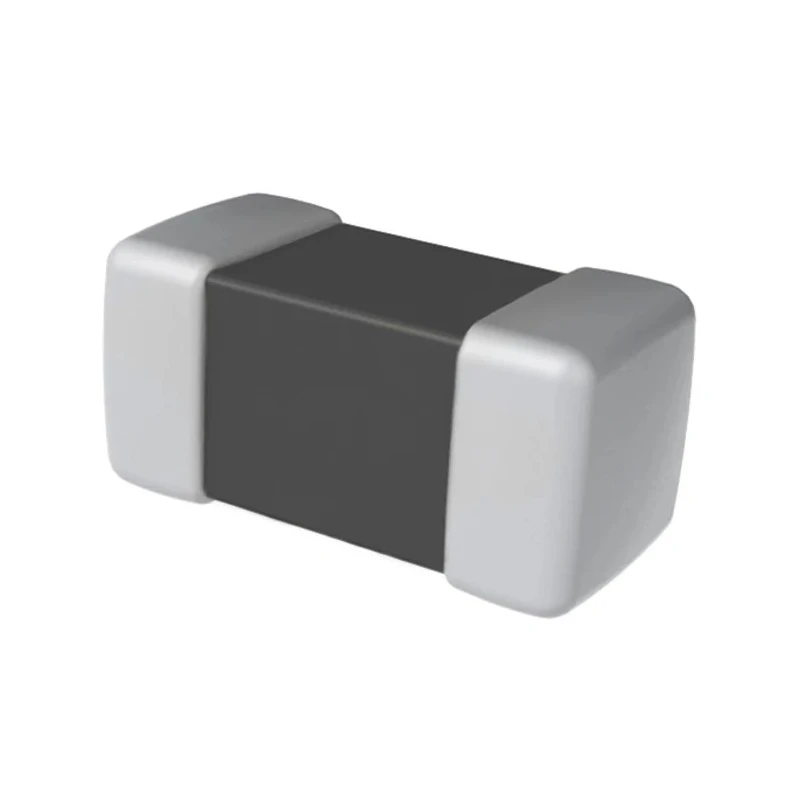

KEMET Ferrite Bead 0.126 mm Tape & Reel Chip Bead, 329 Ω at 25 MHz, 680 Ω at 100 MHz, 746.8 Ω Z1812C681BPWZT
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | KEMET |
| Material | Ferrite |
| Height | 0.126mm |
| Length | 0.177mm |
| Model | Z1812C681BPWZT |
| Depth | 0.126mm |
| Packaging | Tape & Reel |
| Current Rating | 4A |
| Series | Z-PWZ |
| Maximum Operating Temperature | 125°C |
| Package Type | Tape & Reel |
| Sub Type | Chip Bead |
| Minimum Operating Temperature | 40°C |
| Standards/Approvals | RoHS and REACH compliant |
| Maximum DC Resistance | 0.45Ω |
| Impedance at 100 MHz | 680Ω |
| Impedance at 25 MHz | 329Ω |
| Impedance at 300 MHz | 746.8Ω |
| Impedance at 50 MHz | 521.3Ω |
| Impedance at 1 GHz | 290Ω |
Key Features
- High impedance values of 329 Ω at 25 MHz and 680 Ω at 100 MHz enable effective EMI suppression.
- Operates efficiently within a temperature range of -40°C to 125°C.
- Rated current capacity of 4A for reliable performance under load.
- Low maximum DC resistance of 0.45 Ω ensures minimal power loss.
- Compact chip bead design with dimensions 0.177 mm length and 0.126 mm height and depth.
- Constructed from ferrite material providing high reliability and noise filtering.
- RoHS and REACH compliant, suitable for environmentally conscious applications.
- Packaged on tape & reel for automated assembly processes.
Product Description
KEMET Z1812C681BPWZT ferrite bead is a high-impedance chip bead designed for EMI filtering in electronic circuits, especially power line noise suppression. With a compact size of 0.126 mm and tape & reel packaging, it is ideal for automated PCB assembly in industrial and manufacturing contexts.
This bead provides impedance values of 329 Ω at 25 MHz and 680 Ω at 100 MHz, supporting effective suppression of high-frequency signals. The maximum DC resistance is low at 0.45 Ω, minimizing power loss while maintaining reliable current carrying capability up to 4A.
The ferrite material construction ensures durability and consistent performance under a wide temperature range from -40°C to 125°C. It complies with RoHS and REACH environmental standards, making it suitable for modern environmentally compliant electronics.
The Z-PWZ series Ferrite Beads are designed for high impedance and large currents to suppress radiated noise on power lines. Their chip size orientation enables waveform correction of digital signals, critical for noise-sensitive digital mobile and low power consumption devices.
Additional impedance ratings include 521.3 Ω at 50 MHz, 746.8 Ω at 300 MHz, and 290 Ω at 1 GHz, supporting a broad frequency range in noise reduction applications. High impedance values to suppress EMI effectively across multiple frequencies.
Compact chip bead form factor suitable for automated assembly. Wide operating temperature range for reliable industrial use. Constructed from ferrite for high reliability and noise filtering. Compliant with environmental regulations including RoHS and REACH.
Rated to handle high current loads up to 4A.
This ferrite bead is commonly utilized in electronics manufacturing, industrial power line filtering, communication equipment, mobile devices, and other digital signal processing applications. It ensures signal integrity and reduces electromagnetic interference for better device performance and regulatory compliance.
Discover more electronic components and EMI filtering solutions in the EnvMart Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The impedance of this ferrite bead at 25 MHz is 329 Ω.
This model has a maximum current rating of 4A.
The maximum DC resistance of this chip bead is 0.45 Ω, which minimizes power loss.
It operates efficiently within a temperature range of -40°C to 125°C.
The dimensions of this model are 0.177 mm in length and 0.126 mm in height and depth.
This ferrite bead is packaged on tape & reel, suitable for automated assembly processes.
The impedance values are 329 Ω at 25 MHz, 680 Ω at 100 MHz, 521.3 Ω at 50 MHz, 746.8 Ω at 300 MHz, and 290 Ω at 1 GHz.
Yes, it is RoHS and REACH compliant, making it suitable for environmentally conscious applications.
This model is constructed from ferrite material, providing high reliability and noise filtering.
It is commonly utilized in electronics manufacturing, industrial power line filtering, and communication equipment.
This ferrite bead belongs to the Z-PWZ series, designed for high impedance and large currents.
The compact chip bead design allows for easy integration into automated PCB assembly, making it ideal for manufacturing contexts.
