Siretta Puck Multi-Band Antenna, 410 - 5990 MHz, External, Omni-Directional, FME Female Connector, 10m OSCAR1A/10M/FMEF/S/S/31
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Siretta |
| Dimensions | 205 mm height x 25 mm diameter |
| Operating Temperature Range | -20 to +80 °C |
| Temperature range | -30 to +70°C |
| Model | OSCAR1A/10M/FMEF/S/S/31 |
| Cable | Low Loss CFD195 4.95 mm diameter |
| Connector Type | FME |
| Gross Weight | 250 g |
| Series | Oscar 1A |
| Connector | FME Female |
| Polarization | Vertical |
| Gain | 5dB |
| Lead Length | 10m |
| Impedance | 50 Ohm |
| Max Input Power | 50 W |
| Mounting Method | L-type Mount |
| Standards/Approvals | IEEE 802.15.4 |
| Maximum Frequency | 5990MHz |
| Connector Gender | Female |
| Minimum Frequency | 410MHz |
| Internal/External | External |
| RF Protocols | ZigBee, 4G, NB IoT, Bluetooth (BLE), IEEE 802.15.4, 5G (LTE), LoRaWAN, 3G (UMTS), ISM, 2G (GSM/GPRS), 4G (LTE), ISM Band, 5G, 4G (LTE Cat-M), Cat-M, WiFi |
| Antenna Physical Form | Puck |
| Antenna Mount Type | Screw |
| Directivity | Omni-Directional |
| Polarisation | Vertical (Omnidirectional) |
| Radiating element | Monopole |
| Antenna Diameter | 25 mm (cylinder) |
| Housing materials | ABS (casing), Aluminium (radiator) |
| Quad Band GSM/GPRS | 850, 900, 1800, 1900 MHz |
| 3G | 2.1 GHz |

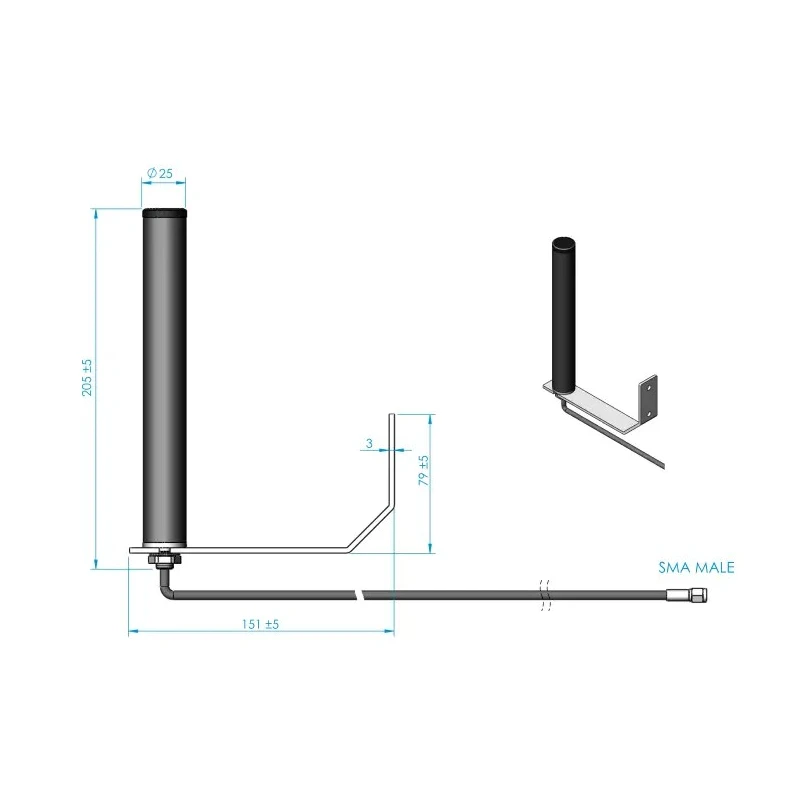

| Antenna height | 205 ±5 mm |
| Bracket length | 151 ±5 mm |
| Bracket height | 79 ±5 mm |
| Bracket thickness | 3 mm |
Key Features
- Wide compatibility from 410 MHz to 5990 MHz for major wireless protocols.
- Omni-directional puck-form antenna provides reliable reception.
- Durable ABS casing and aluminium bracket suitable for industrial installations.
- 10 meter low-loss cable with FME female connector included.
- Peak gain of 5 dB ensures strong signal performance for demanding use cases.
- Impedance of 50 Ohm, supports up to 50 W input power.
- Ideal for LoRa, Sigfox, GSM/GPRS, LTE, 5G NR, and WiFi applications.
- Operates in temperature ranges from -20 to +80 °C.
Product Description

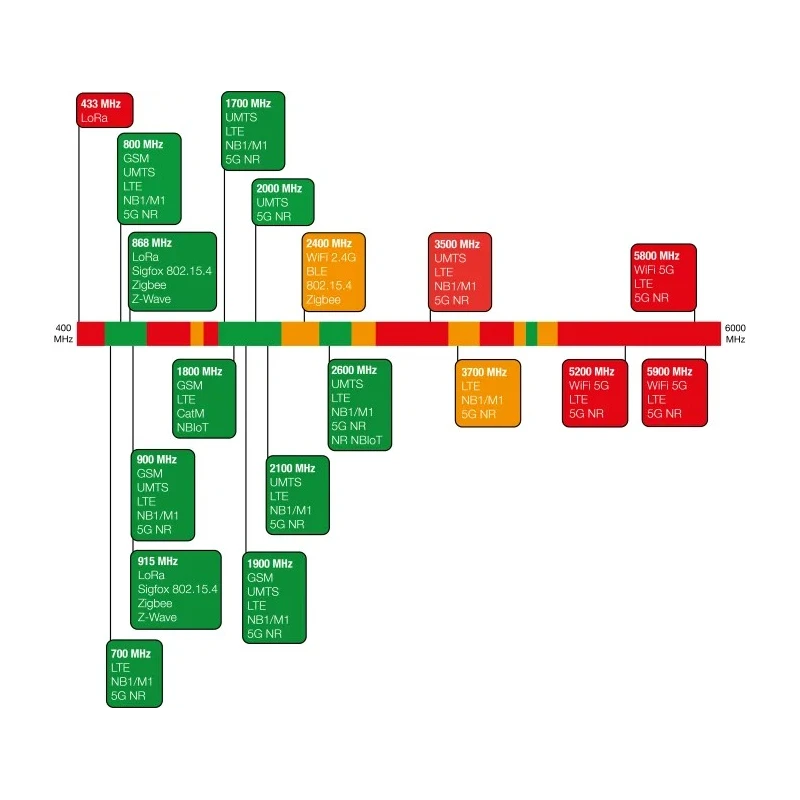

The Siretta OSCAR1A/10M/FMEF/S/S/31 is a high-performance puck multi-band antenna engineered for robust wireless connectivity across a broad frequency range (410 MHz - 5990 MHz). Designed for applications requiring reliable coverage in industrial, commercial, and IoT environments, this antenna supports protocols including ZigBee, 4G, NB IoT, Bluetooth BLE, IEEE 802.15.4, 5G LTE, LoRaWAN, 3G UMTS, ISM, 2G GSM/GPRS, WiFi, and more.

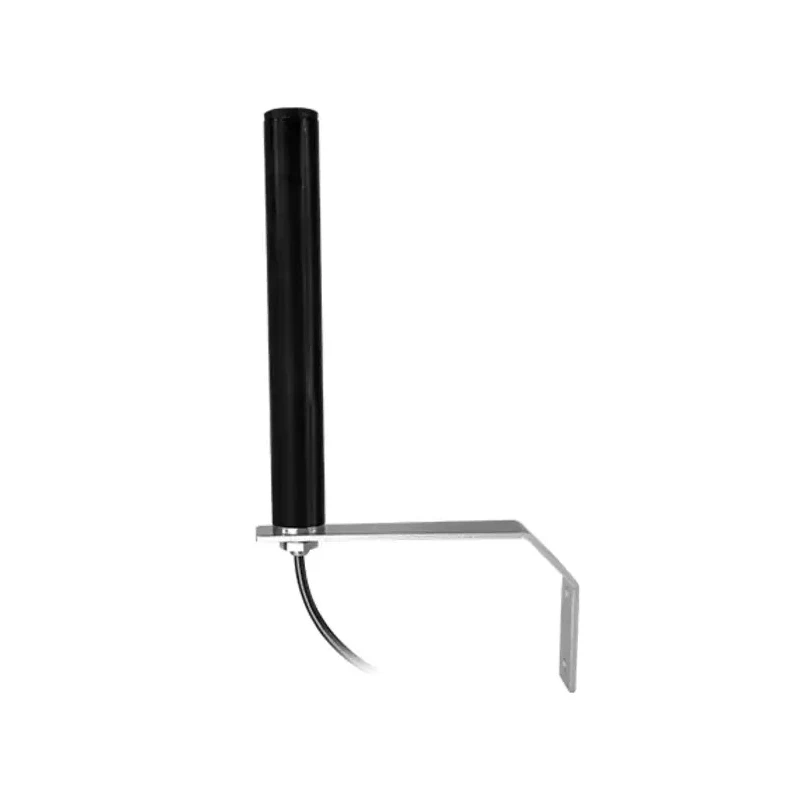

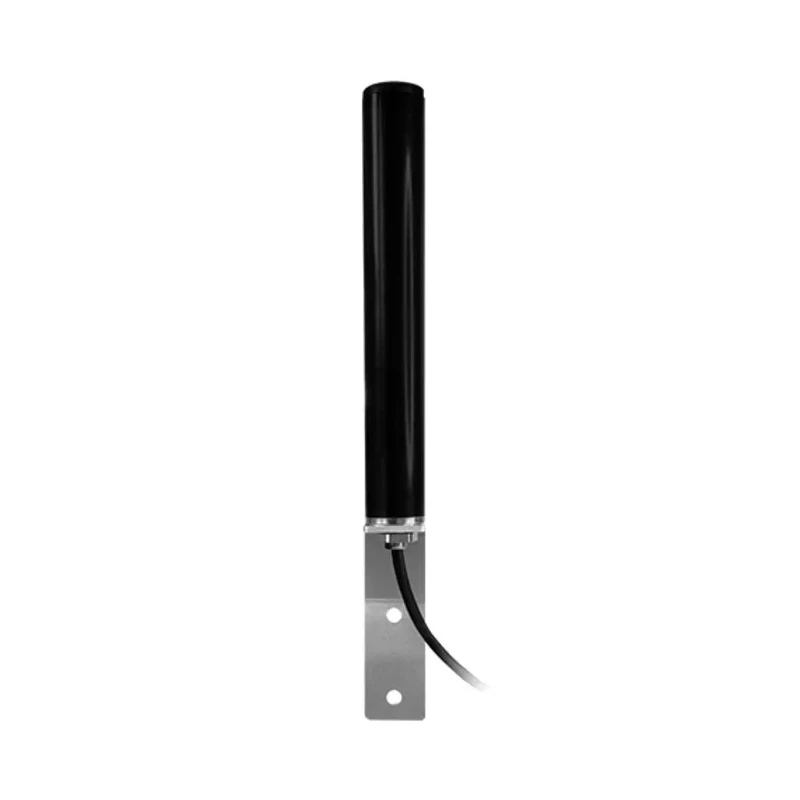

Constructed with a rugged ABS casing and a lightweight aluminium mounting bracket, the OSCAR1A series delivers durability and efficient installation for wall or bracket-mounted deployments. The puck-shaped antenna is externally mounted, featuring omni-directional directivity to ensure optimal signal reception and transmission in all directions - ideal for large-scale sensor networks, security alarm systems, remote monitoring devices, and demanding all-weather IoT installations.
Equipped with a 10 meter CFD195 low-loss cable (4.95 mm diameter), the antenna terminates in a secure FME female connector. This setup improves signal integrity and simplifies integration with industrial wireless equipment. With a peak gain of up to 5 dB and impedance of 50 Ohm, the OSCAR1A/10M/FMEF/S/S/31 supports high-quality monopole performance, enhancing communication reliability.
Wide frequency operation from 410 MHz to 5990 MHz for compatibility with diverse wireless protocols. Omni-directional puck form improves coverage and adaptability in various mounting conditions. Durable ABS and aluminium materials ensure longevity and resistance to environmental factors.
10 m cable length allows flexible installation and placement in industrial settings. Supports LoRa, Sigfox, GSM/GPRS, LTE Cat M, NB IoT, 5G NR, and WiFi systems. Operating temperature range suitable for demanding external applications (-20 to +80 °C).
No dependence on ground plane, simplifying system integration for manufacturers and engineers.
The antenna is optimized for use cases such as industrial automation, laboratory instrument telemetry, commercial building security, manufacturing plant wireless control, water treatment system monitoring, agricultural sensor deployments, and general IoT applications requiring robust and flexible antenna solutions.
Dimensions measure 205 mm in height by 25 mm diameter, with a gross weight of 250 g. The L-type mounting bracket ensures secure, permanent installation even in exposed outdoor areas. The OSCAR1A is recognized under IEEE 802.15.4 standards and delivers all-weather performance for critical communications.
Explore Siretta Multi-Band Antennas and advanced industrial wireless solutions in the EnvMart Electronics & Electricals category for comprehensive connectivity options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The antenna operates over a frequency range of 410 MHz to 5990 MHz, supporting various wireless protocols.
This model has a peak gain of 5 dB, which enhances signal performance for demanding applications.
The antenna has an impedance of 50 Ohm, making it compatible with a wide range of devices.
It features an FME female connector, allowing for secure integration with compatible equipment.
The antenna comes with a 10 meter low-loss CFD195 cable, which facilitates flexible installation.
The operating temperature range is from -20 to +80 °C, suitable for various environmental conditions.
The antenna measures 205 mm in height and has a diameter of 25 mm.
It utilizes an L-type mounting method, ensuring secure installation in various settings.
This model supports protocols such as ZigBee, 4G, NB IoT, Bluetooth BLE, IEEE 802.15.4, 5G LTE, LoRaWAN, and more.
The antenna is constructed with an ABS casing and an aluminium bracket, providing durability for industrial use.
The gross weight of this model is 250 g, making it lightweight for easy installation.
