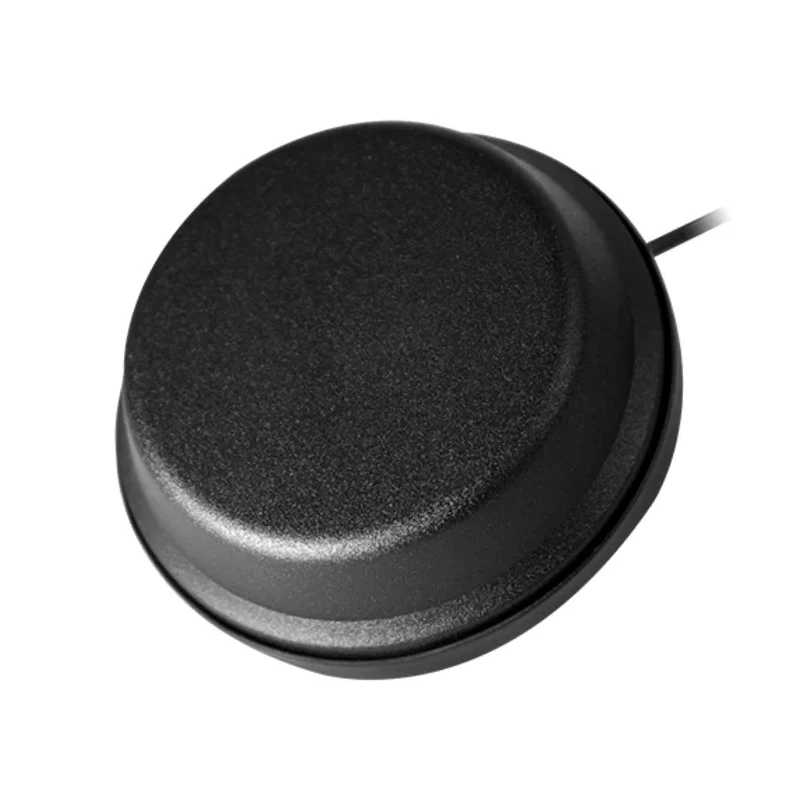

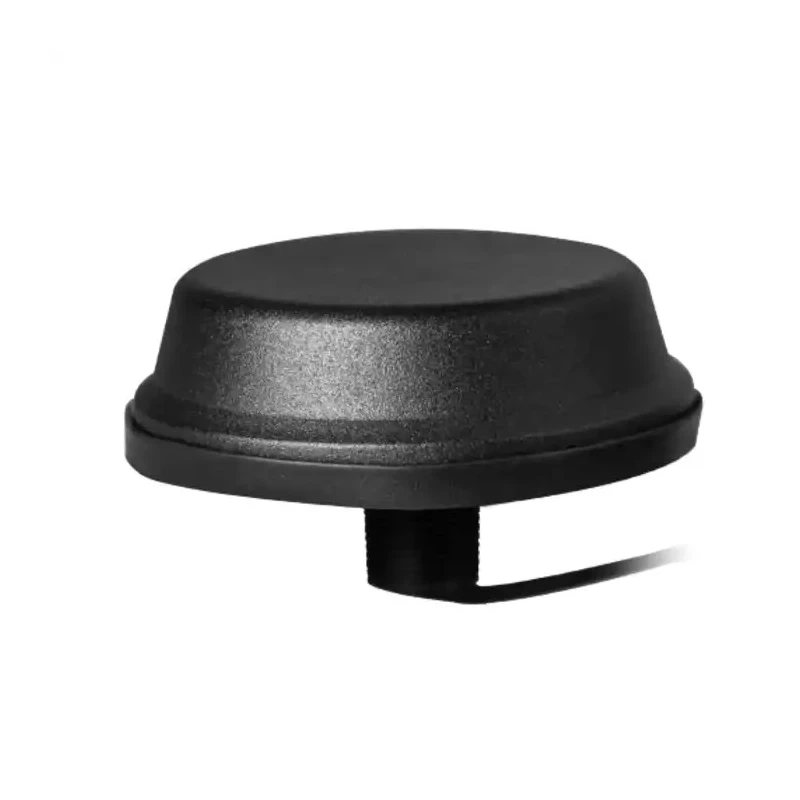

Siretta Puck Multi-Band Antenna with SMA Male Connector 2.5m Cable ZigBee LoRaWAN Wi-Fi 6 TANGO11A/2.5M/SMAM/S/S/19
Specifications
| Country of Origin | Taiwan |
|---|---|
| Diameter | 80 mm |
| Brand | Siretta |

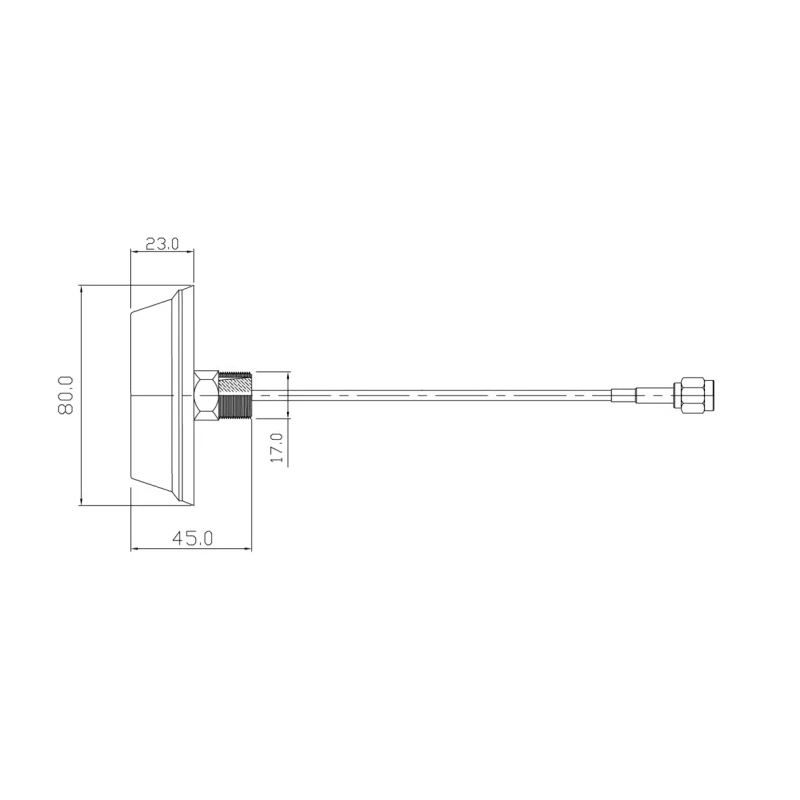

| Dimensions | 23 mm height x 80 mm diameter |
| Height | 23 mm |
| Operating Temperature Range | -40 to +85 °C |
| Model | TANGO11A/2.5M/SMAM/S/S/19 |
| Cable | RG174 |
| Connector Type | SMA Male |
| Gross Weight | 80 g |
| Series | Tango 11A |
| Polarization | Vertical |
| Gain | 7dB |
| Lead Length | 2.5m |
| Protection | IP67 rated |
| Impedance | 50 Ohm |
| Max Input Power | 50 W |
| Mounting Method | M17 Screw Mount |
| Standards/Approvals | IP67 |
| Maximum Frequency | 5990MHz |
| Connector Gender | Male |
| Minimum Frequency | 410MHz |
| RF Protocols | ZigBee, LoRaWAN, IEEE 802.15.4, Wi-Fi 6, Bluetooth (BLE), Cat-M, ISM Band, 4G (LTE Cat-M), WiFi (Dual Band), ISM, WiFi, 2G (GSM/GPRS), 5G (LTE), 3G (UMTS), 4G, 4G (LTE), 5G, NB IoT |
| Antenna Physical Form | Puck |
| Antenna Mount Type | Through Hole |
| Directivity | Omni-Directional |
| Antenna Internal Construction | Low Profile |
| Polarisation | Linear Vertical |
| Mounting Screw Length | 22 mm |
| Max Panel Thickness | 10 mm |
| Radome materials | Nylon PA6 |
| The Tango 11A are suitable for a range of applications including | car park metering, utilities metering, traffic monitoring and many other M2M applications that require data transfer over the GSM or 3G bandwidths |
Key Features

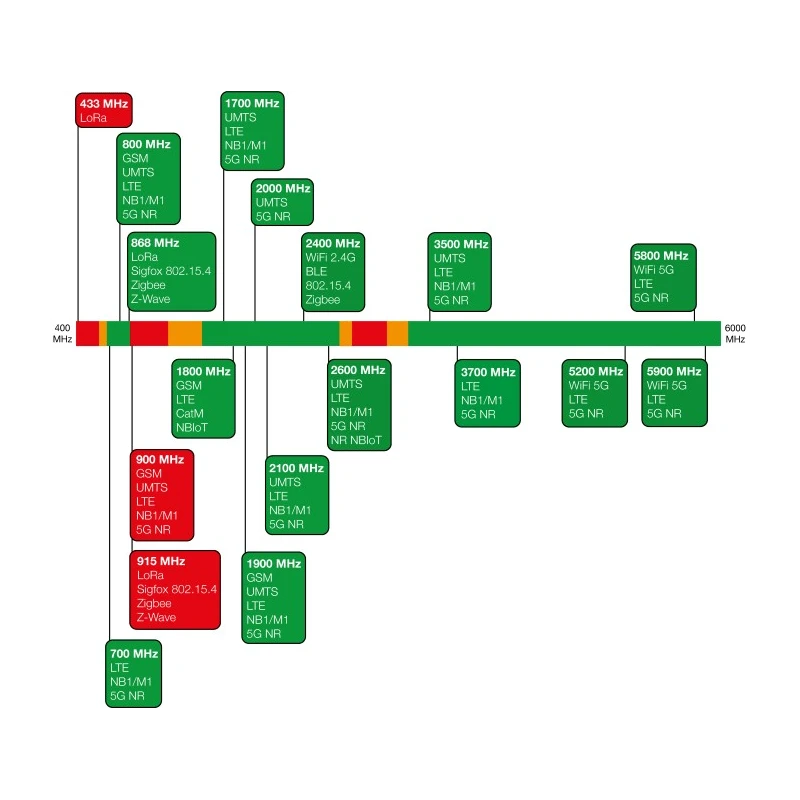

- Operates on frequency bands from 700 MHz to 6000 MHz covering 5G NR and 4G LTE networks.
- Features a 2.5 meter RG174 cable with SMA Male connector for robust connectivity.
- Omni-directional puck antenna with a gain of 7 dB and low profile design.
- IP67 rated for protection against dust and water ingress suitable for outdoor environments.
- Compact dimensions of 23 mm height and 80 mm diameter enable covert installation.
- Wide operating temperature range from -40 to +85 °C for reliable performance.
- Mounts via through hole M17 screw with mounting screw length of 22 mm.
- Constructed with durable Nylon PA6 radome for weather resistance.
Product Description
Siretta TANGO11A/2.5M/SMAM/S/S/19 Puck Multi-Band Antenna with SMA Male Connector is a robust and versatile antenna supporting a wide variety of RF protocols including ZigBee, LoRaWAN, IEEE 802.15.4, Wi-Fi 6, Bluetooth (BLE), Cat-M, 4G LTE Cat-M and NB IoT, 5G NR, and more. This antenna operates over minimum and maximum frequencies of 410 MHz and 5990 MHz respectively, covering essential global cellular and wireless communication bands.
The antenna features a 2.5 meter RG174 cable terminated with an SMA Male connector, allowing easy integration into diverse device setups requiring high reliability connections. Its puck-shaped form factor is omni-directional with a gain of 7 dB and designed for low profile installs with dimensions of 23 mm in height and 80 mm in diameter, making it ideal for covert and anti-theft applications.
Built for challenging outdoor environments, the TANGO11A antenna is IP67 rated, delivering full protection against dust and immersion in water up to 1 meter deep for 30 minutes. This makes it highly suitable for automotive, industrial, agricultural, and utility metering applications requiring durable and weatherproof antennas with stable data transfer over cellular and Wi-Fi networks.

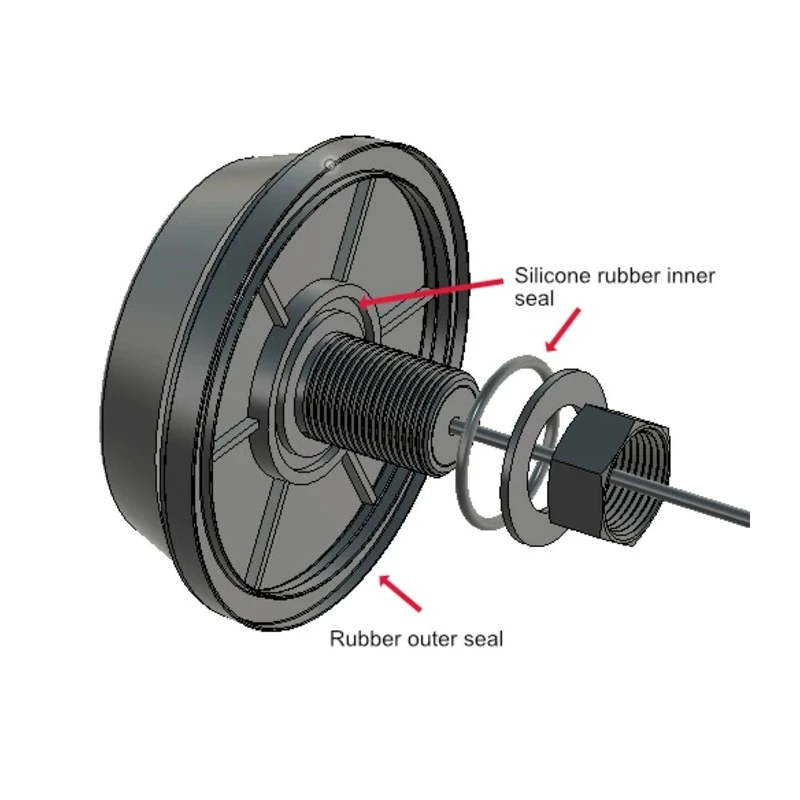

The antenna mounts via a through hole M17 screw mount with a mounting screw length of 22 mm and supports panel thickness of up to 10 mm. Constructed with a Nylon PA6 radome, it offers excellent resilience to harsh environmental conditions. The ground plane independent design enhances installation flexibility in constrained spaces.
Typical applications include car park metering, utilities metering, traffic monitoring, and other M2M telemetry requiring reliable data communication across GSM, 3G, 4G LTE, and emerging 5G networks worldwide. Its wide operating temperature range from -40 to +85 °C ensures consistent operation across diverse climate conditions.
Operates on multiple cellular and RF protocols including 5G NR, 4G LTE, ZigBee, LoRaWAN, and Wi-Fi 6. Omni-directional puck antenna design with 7 dB gain and low profile for covert mounting. IP67 rated for dust and water ingress protection in outdoor environments.
2.5 meter cable with SMA Male connector for integration flexibility. Wide temperature range from -40 to +85 °C for harsh conditions. Nylon PA6 radome offers robust weather resistance and durability. Through hole M17 screw mounting supports secure installation with 22 mm screw length.
Compact dimensions of 23 mm height and 80 mm diameter suit low visibility applications. Explore the Siretta range and other Multi-Band Antennas on EnvMart for industrial, commercial, and communication solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates on frequency bands from 410 MHz to 5990 MHz, covering essential global cellular and wireless communication bands including 5G NR and 4G LTE.
This model features a gain of 7 dB, which enhances its performance in receiving signals.
It is equipped with an SMA Male connector, allowing for easy integration into various device setups.
The antenna comes with a 2.5 meter RG174 cable, providing flexibility in installation.
It mounts via a through hole M17 screw, with a mounting screw length of 22 mm, and supports a maximum panel thickness of 10 mm.
The antenna has compact dimensions of 23 mm in height and 80 mm in diameter, making it suitable for covert installations.
It operates effectively in a wide temperature range from -40 to +85 °C, ensuring reliable performance in various climates.
It supports multiple RF protocols including ZigBee, LoRaWAN, Wi-Fi 6, Bluetooth (BLE), and various cellular standards like 4G LTE and 5G NR.
Typical applications include car park metering, utilities metering, traffic monitoring, and other M2M telemetry requiring reliable data communication.
The maximum input power for this model is 50 W, allowing it to handle significant signal levels without damage.
