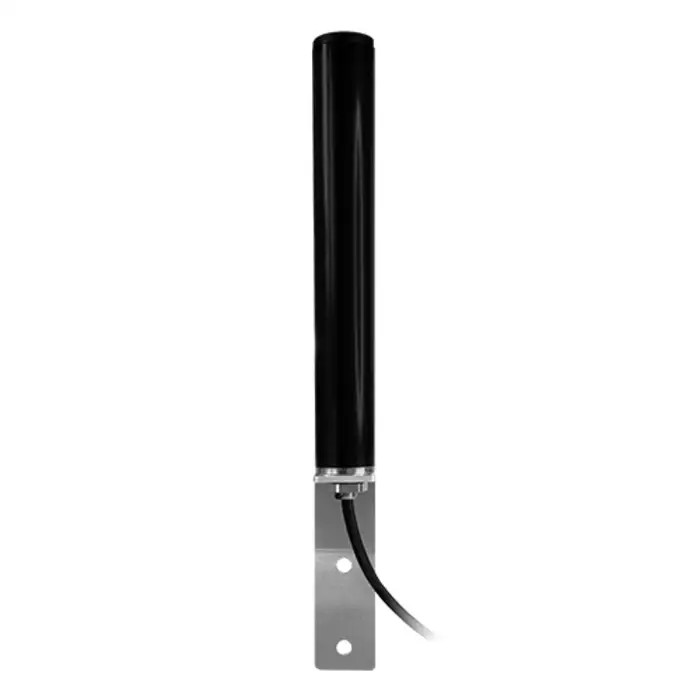

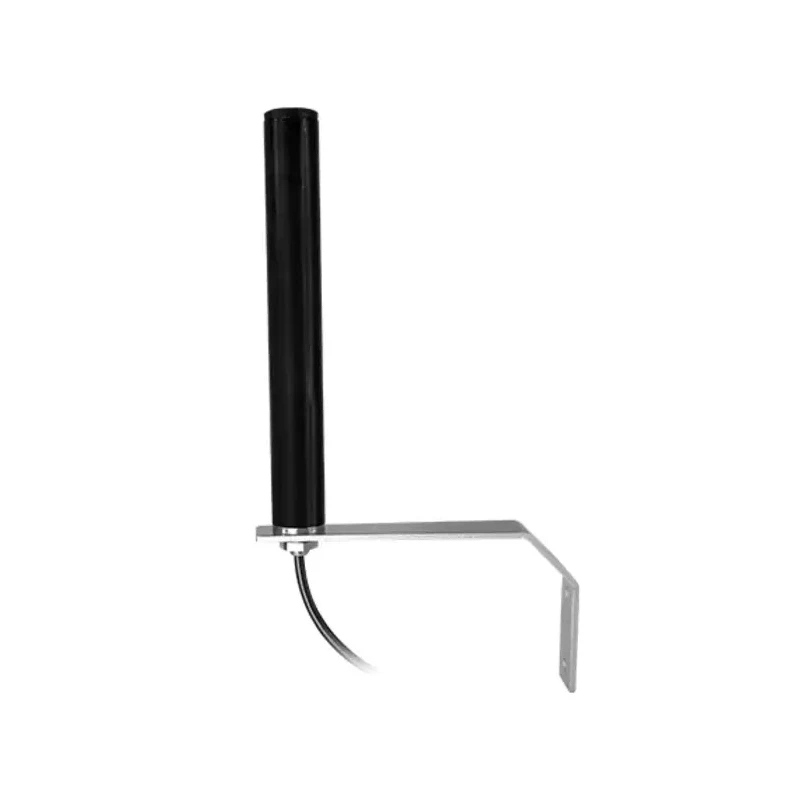

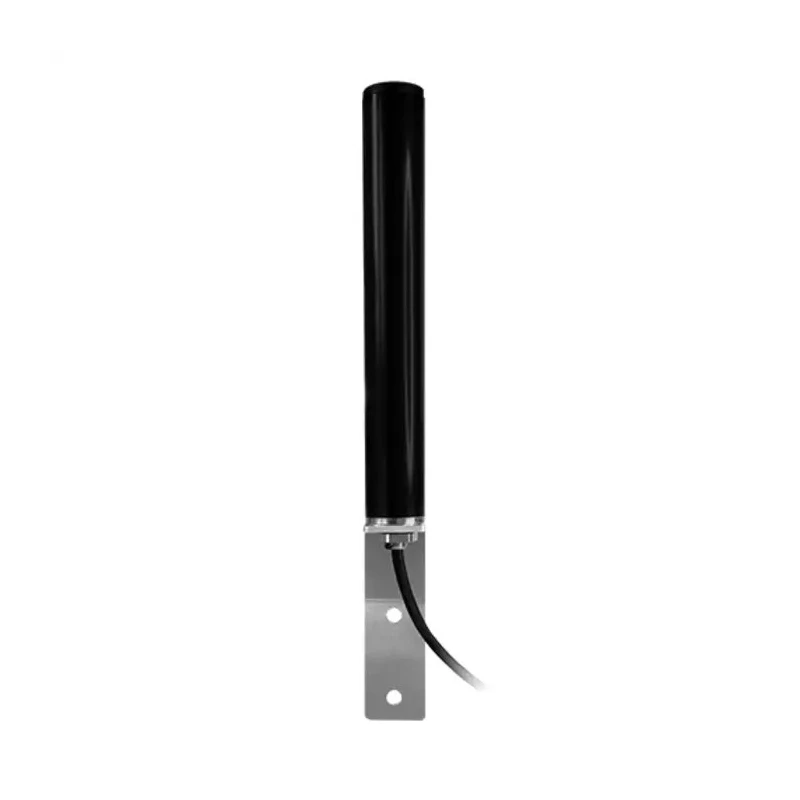

Siretta Puck Multi-Band Antenna with SMA Male Connector 410 MHz - 5990 MHz, Omni-Directional, 10m OSCAR1A/10M/SMAM/S/S/31
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Siretta |
| Dimensions | 205 mm height x 25 mm diameter |
| Operating Temperature Range | -20 to +80 °C |
| Temperature range | -30 to +70°C |
| Model | OSCAR1A/10M/SMAM/S/S/31 |
| Cable | Low Loss CFD195 4.95 mm diameter |
| Connector Type | SMA Male |
| Gross Weight | 250 g |
| Series | Oscar 1A |
| Polarization | Vertical |
| Gain | 5dB |
| Lead Length | 10m |
| Impedance | 50 Ohm |
| Max Input Power | 50 W |
| Mounting Method | L-type Mount |
| Standards/Approvals | RoHS |
| Maximum Frequency | 5990MHz |
| Connector Gender | Male |
| Minimum Frequency | 410MHz |
| Internal/External | External |

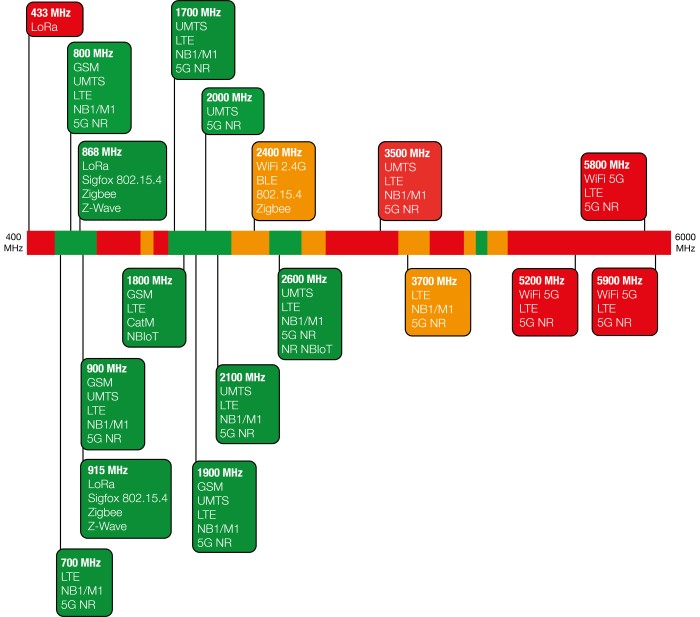

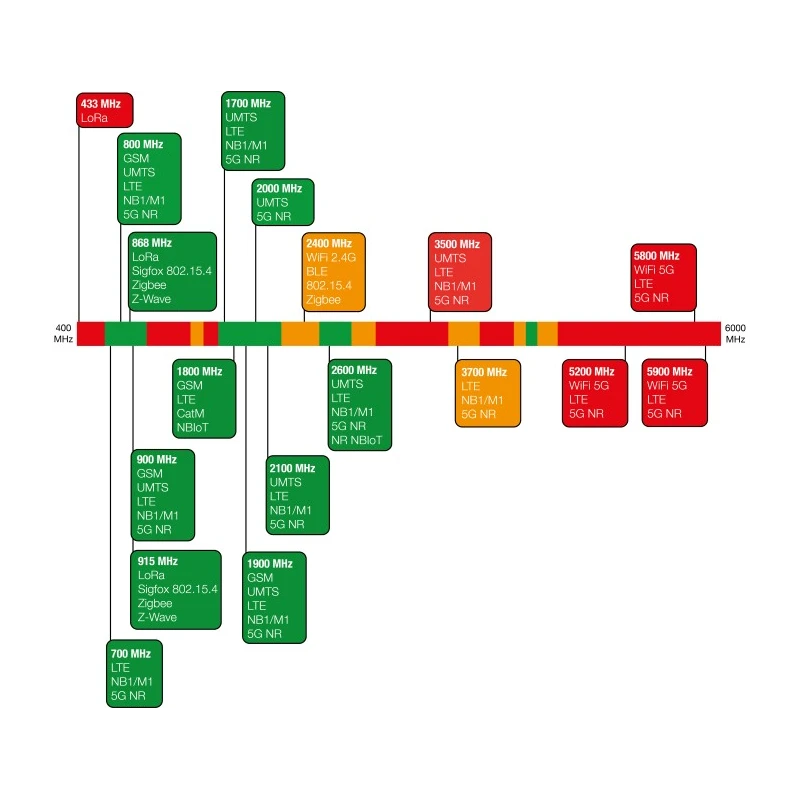

| RF Protocols | IEEE 802.15.4, WiFi, 4G (LTE), Bluetooth (BLE), ISM Band, 5G, 3G (UMTS), Cat-M, ISM, LoRaWAN, NB IoT, 2G (GSM/GPRS), 4G (LTE Cat-M), 4G, 5G (LTE), ZigBee |
| Antenna Physical Form | Puck |
| Antenna Mount Type | Screw |
| Directivity | Omni-Directional |
| Polarisation | Vertical (Omnidirectional) |
| Radiating element | Monopole |
| Antenna Diameter | 25 mm (cylinder) |
| Housing materials | ABS (casing), Aluminium (radiator) |
| Quad Band GSM/GPRS | 850, 900, 1800, 1900 MHz |
| 3G | 2.1 GHz |

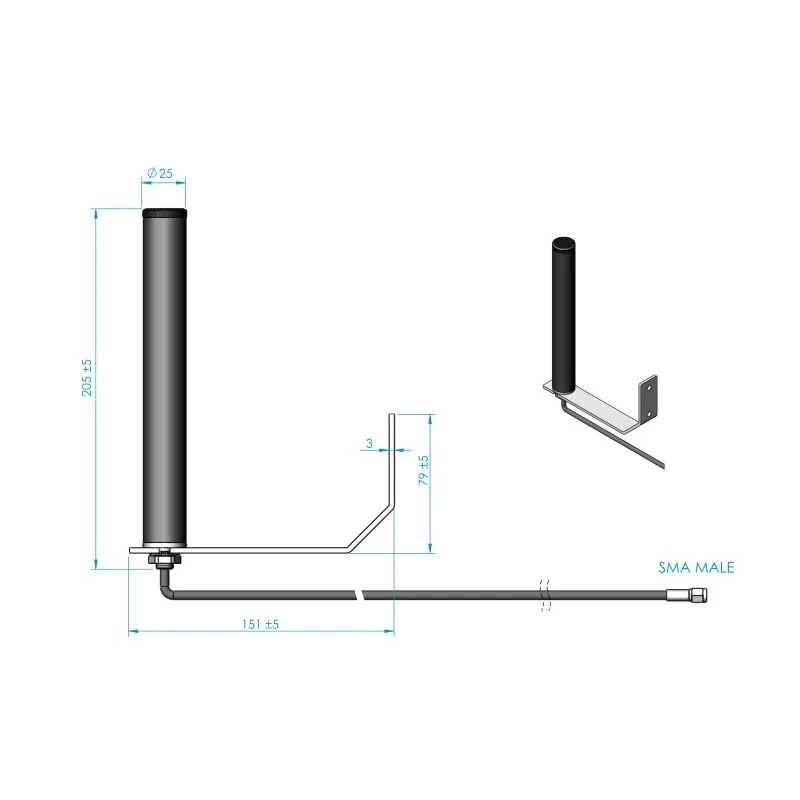

| Antenna height | 205 ±5 mm |
| Bracket length | 151 ±5 mm |
| Bracket height | 79 ±5 mm |
| Bracket thickness | 3 mm |
Key Features
- This antenna is omnidirectional with a peak gain of 5 dBi for optimal signal reception.
- Designed with rugged ABS plastic casing and a durable aluminium mounting bracket.
- Compatible with protocols including IEEE 802.15.4, WiFi, 2G GSM/GPRS, 3G UMTS, 4G LTE, 5G NR, Bluetooth BLE, LoRaWAN, Sigfox, and ZigBee.
- External antenna mount type using screw fixings with ground plane independence.
- Operates reliably in temperatures from -20°C to +80°C for harsh outdoor environments.
- Includes a 10 meter low loss CFD195 cable with SMA male connector suitable for various IoT and security applications.
- Lightweight design with 250 g weight facilitates easy wall or bracket mounting.
- Meets RoHS compliance standards and is manufactured in Taiwan, Province Of China.
Product Description
Siretta OSCAR1A/10M/SMAM/S/S/31 puck multi-band antenna is a high-performance omnidirectional antenna designed for global 4G and 5G frequencies with broad ISM band support from 410 MHz to 5990 MHz. This model includes a 10 meter low loss CFD195 cable terminated with an SMA male connector.
The durable antenna features a black ABS plastic casing and a lightweight aluminium mounting bracket designed for secure wall or bracket installation using screw mount type fixings. Its monopole radiating element ensures improved signal reliability and communication performance across multiple protocols including IEEE 802.15.4, WiFi, Bluetooth BLE, LoRaWAN, ZigBee, Sigfox, and cellular communication standards from 2G GSM/GPRS through 5G NR.
Suitable for industrial, IoT, security, and remote sensor monitoring applications, this antenna supports LTE Cat-M, NB IoT, and LTE Cat NB bands enhancing connectivity for a wide range of communication devices. Its robust design allows operation in demanding environments with temperature tolerances from -20 to +80 degrees Celsius and a maximum input power of 50 W.
The 5 dBi gain and omni-directional directivity aid in maximizing signal capture, while the ground plane independent design simplifies installation on various surfaces without requiring metallic mounting bases.
Omnidirectional multi-band antenna suited for IoT and industrial connectivity. Robust ABS casing with aluminium bracket ensures weather resistance. Supports diverse RF protocols including WiFi, 5G, and LoRaWAN. 10 meter low loss cable with SMA male connector included.
Operational temperature range from -20°C to +80°C for outdoor use. Compliant with RoHS standards for safety and environmental care.
This antenna is ideal for enhancing connectivity in smart city deployments, alarm and security systems, agricultural monitoring, and other remote communication industrial applications requiring consistent broadband access.
Explore more Multi-Band Antennas and related connectivity products in our Electronics Components category at EnvMart for expert-grade options and reliable performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates across a frequency range of 410 MHz to 5990 MHz, supporting various RF protocols including 4G, 5G, and LoRaWAN.
The antenna has a peak gain of 5 dBi, which aids in maximizing signal capture.
It has a height of 205 mm and a diameter of 25 mm, making it compact for various installations.
It features an SMA male connector, which is compatible with various devices and systems.
The antenna uses a screw mount type for installation, which allows for secure attachment to walls or brackets.
The antenna casing is made of ABS plastic, while the mounting bracket is constructed from aluminum, providing a lightweight yet durable design.
It supports a wide range of RF protocols including IEEE 802.15.4, WiFi, Bluetooth BLE, LoRaWAN, ZigBee, and cellular standards from 2G to 5G.
The gross weight of the antenna is 250 g, making it lightweight for easy mounting.
The maximum input power is rated at 50 W, allowing for robust performance across various applications.
Yes, it meets RoHS compliance standards, ensuring it adheres to safety and environmental regulations.
This antenna is suitable for industrial, IoT, security, and remote sensor monitoring applications, enhancing connectivity in various environments.
