Siretta Puck Multi-Band Antenna with FME Connector 410 MHz to 5990 MHz, Omni-Directional, 5 dB Gain OSCAR1A/5M/FMEF/S/S/31

Siretta OSCAR1A/5M/FMEF/S/S/31 Puck Multi-Band Antenna with model code OSCAR1A/5M/FMEF/S/S/31 is a high-performance external omnidirectional antenna designed for use across a wide frequency range of 410 MHz to 5990 MHz.

Featuring a robust monopole design with 5 dB gain, this antenna ensures consistent signal quality and coverage for industrial, IoT, security, and remote sensor monitoring applications.

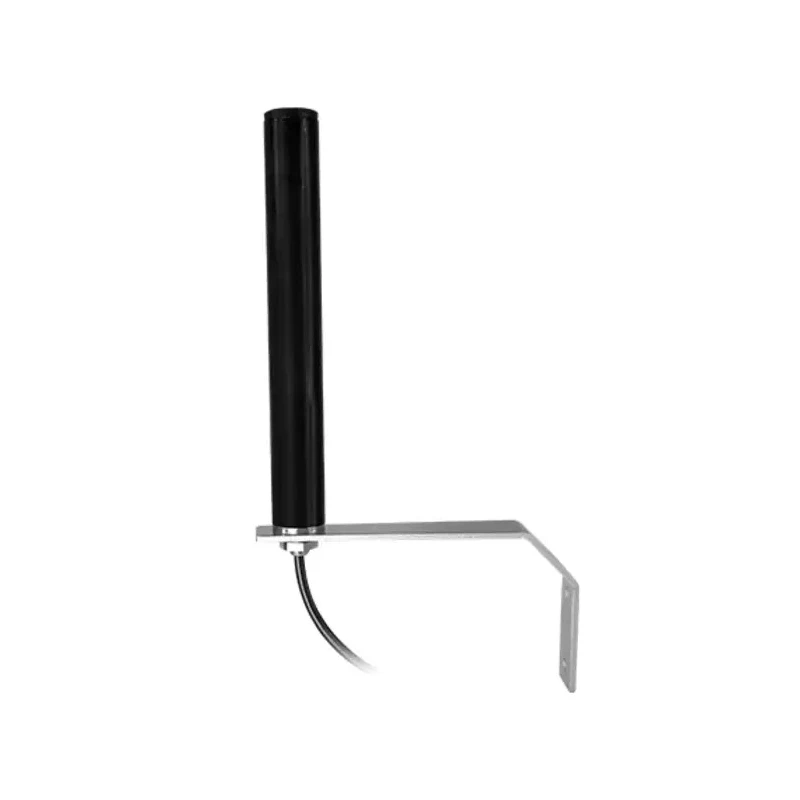

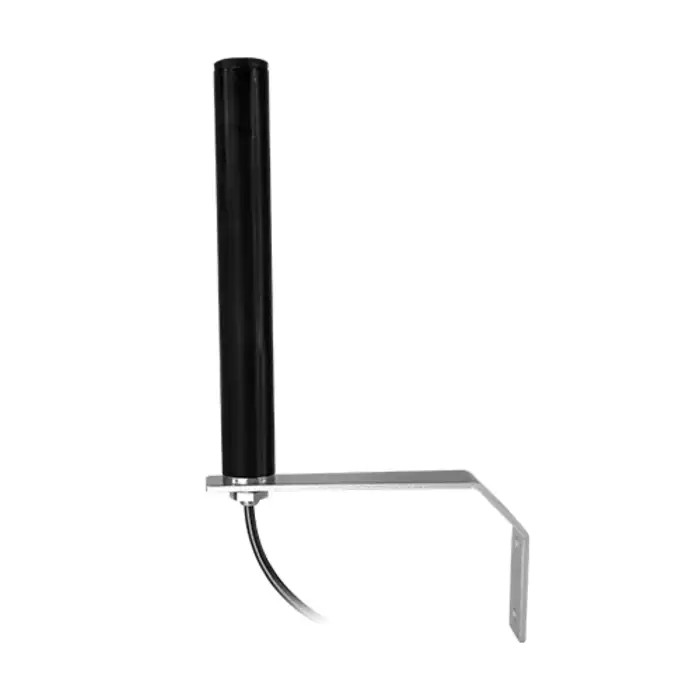

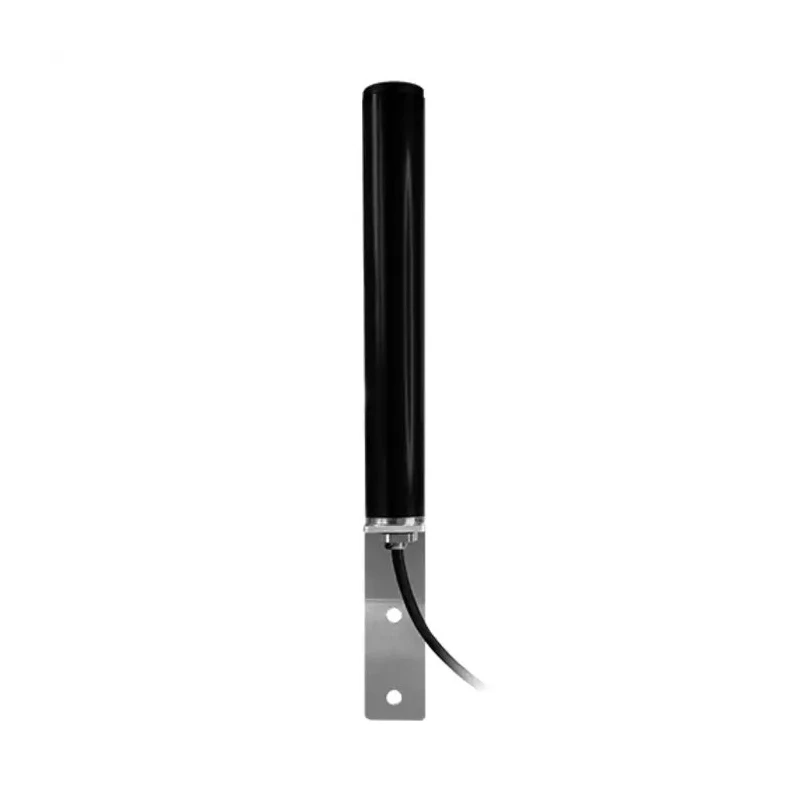

The antenna's construction includes a durable ABS plastic casing and a lightweight yet strong aluminium L-type mounting bracket allowing secure installation on walls or brackets. It is equipped with a 5-meter long, low loss CFD195 cable with a 4.95 mm diameter, terminated with a female FME connector.

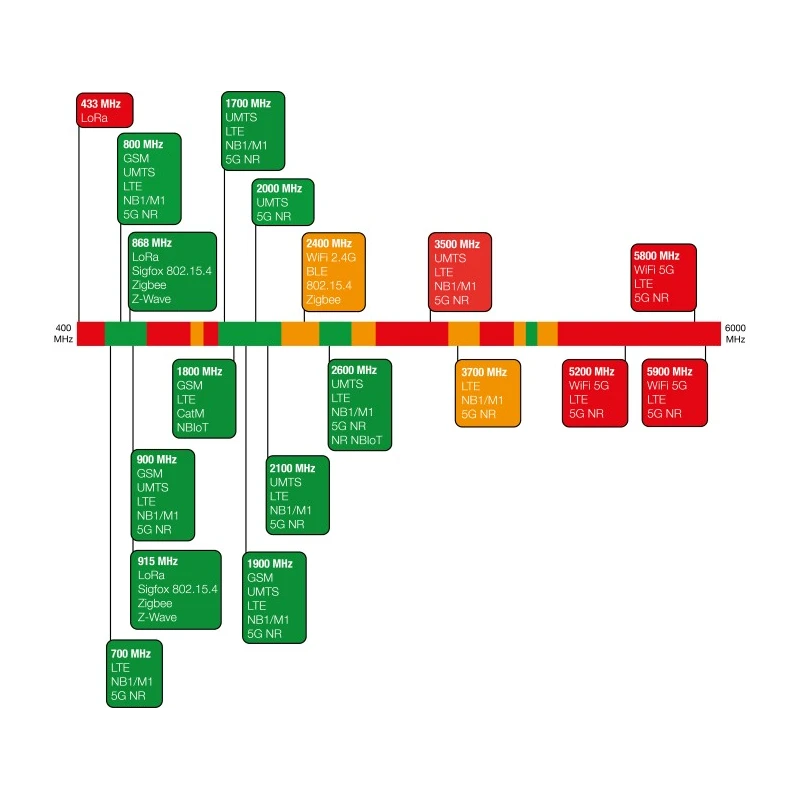

It supports multiple RF protocols such as IEEE 802.15.4, WiFi, ISM bands, Bluetooth (BLE), LoRaWAN, NB IoT, GSM (2G/3G/4G/5G), ZigBee, and LTE Cat M variants making it versatile for modern wireless communication systems.

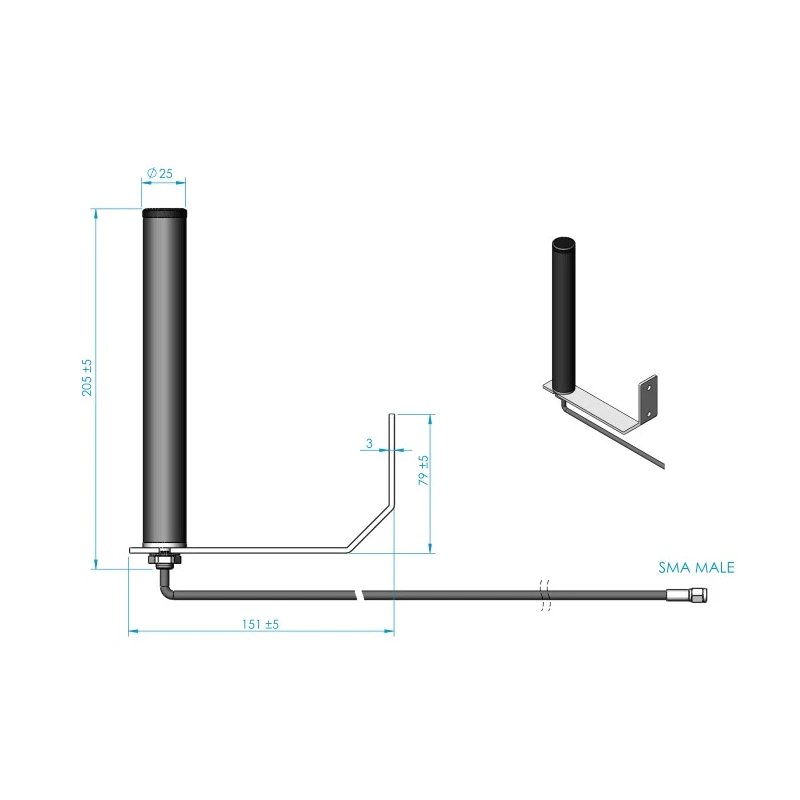

The design is ground plane independent and operates reliably in temperatures ranging from -20 to +80 °C. Its compact dimensions measure 205 mm in height and 25 mm in diameter, weighing 250 grams, which facilitates easy handling and mounting.

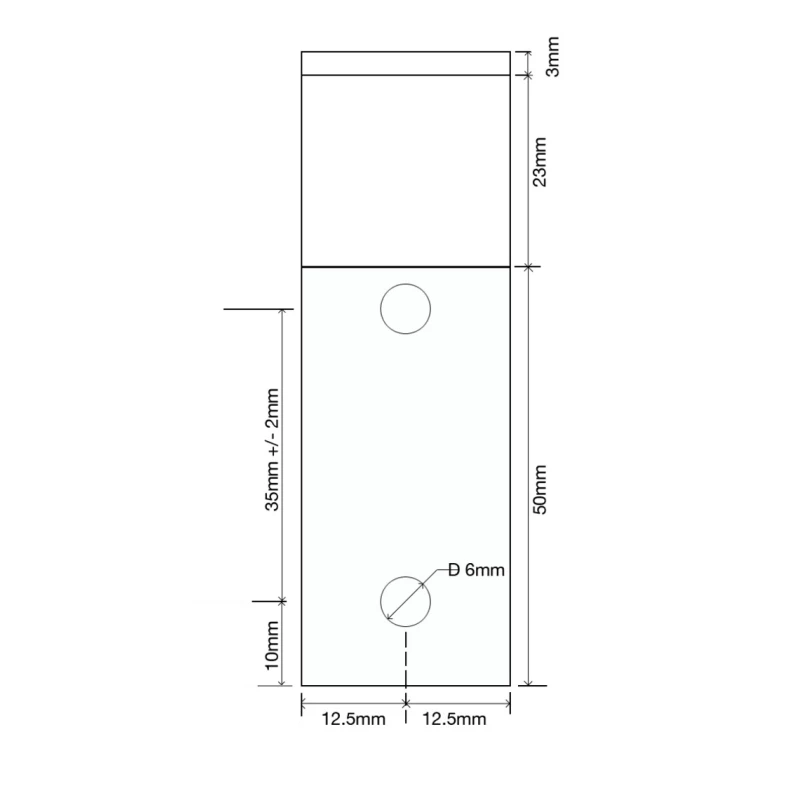

The antenna includes features such as vertical polarization, 50 Ohm impedance, and a max input power rating of 50 W. The aluminium bracket provides stable mechanical support with dimensions of 151 mm length, 79 mm height, and 3 mm thickness.

This reliable antenna is suited for industrial, manufacturing, commercial, and HVAC monitoring systems, as well as water treatment, agricultural IoT, and security installations requiring robust all-weather antennas.

Explore the Siretta Multi-Band Antenna range on EnvMart for advanced wireless connectivity solutions.
