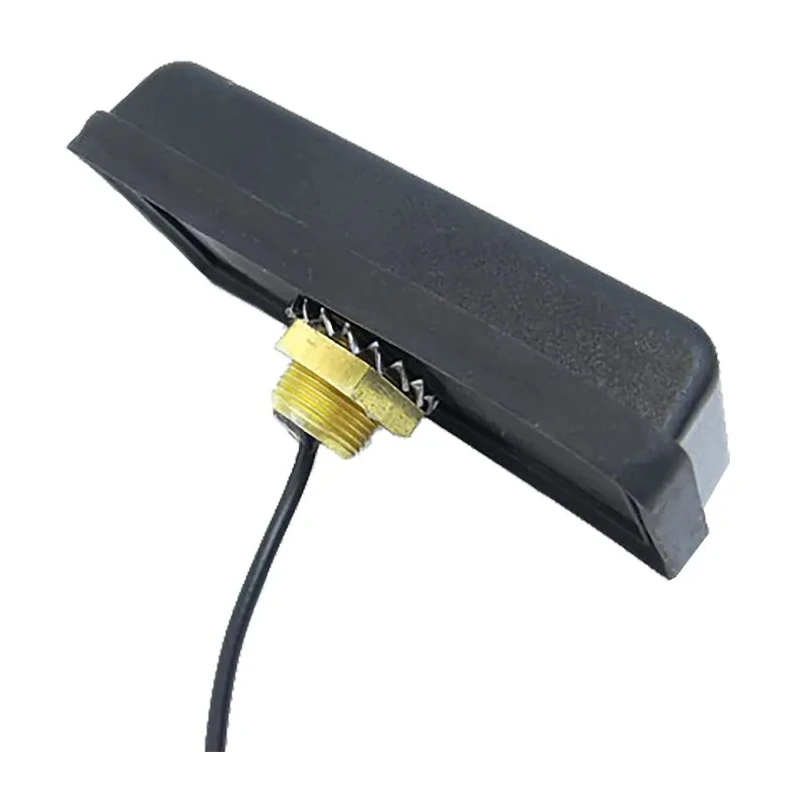

Siretta Puck Multi-Band Antenna, 700 MHz - 2.1 GHz, SMA Male Connector, 1m Lead, External TANGO1/1M/SMAM/S/S/4
Specifications
| Country of Origin | India |
|---|---|
| Brand | Siretta |
| Operating Temperature | -40 to +85C |
| Height | 17 mm |
| Length | 95 mm |
| Model | TANGO1/1M/SMAM/S/S/4 |
| Connector Type | SMA |
| Width | 45 mm |
| Series | Tango 1 |
| Gain | 2dBi |
| Lead Length | 1m |
| Impedance | 50 Ω |
| Standards/Approvals | RoHS |
| Maximum Frequency | 2.1GHz |
| Connector Gender | Male |
| Minimum Frequency | 700MHz |
| Internal/External | External |
| RF Protocols | 2G (GSM/GPRS), 3G (UTMS), 4G (LTE), WiFi |
| Antenna Physical Form | Puck |
| Antenna Mount Type | Through Hole/Bolted |
| Directivity | Omni-Directional |
| Antenna Internal Construction | Dipole |
| Number of Bands | 2 |
| Polarisation | Vertical |
Key Features
- The antenna operates between 700 MHz and 2.1 GHz frequency bands.
- It features an SMA male connector with a 1 meter RG174 cable lead included.
- The puck-shaped antenna is designed for external mounting with a through hole/bolted fixture.
- It provides an omni-directional radiation pattern with a gain of 2 dBi.
- The enclosure is toughened plastic with moisture-resistant rubber seal suitable for industrial applications.
- Operating temperature range is from -40 to +85 degrees Celsius.
- The antenna construction utilizes a quarter-wave dipole design for reliable signal reception.
- It meets RoHS standards, ensuring compliance with environmental regulations.
Product Description
Siretta TANGO1/1M/SMAM/S/S/4 Puck Multi-Band Antenna is a durable external antenna designed for wireless communication applications supporting 2G (GSM/GPRS), 3G (UTMS), 4G (LTE), and WiFi protocols.
This low profile puck antenna features a robust plastic housing with a rubber seal to protect against moisture ingress, making it suitable for harsh industrial environments, including mobile applications such as trucks and buses.
The antenna is tuned as a quarter-wave dipole covering frequencies from 700 MHz up to 2.1 GHz, delivering an omni-directional coverage with a gain of 2 dBi. It connects via a male SMA connector with an included 1 meter RG174 cable lead, secured by through-hole bolting for stable installation.
Operating effectively across multiple bands, it supports quad band GSM/GPRS speeds as well as 3G and WiFi signals, making it ideal for industrial, commercial, and transportation communication systems requiring reliable wideband connectivity.
Technical features include a 50 ohm impedance, vertical polarization, and a temperature tolerance from -40 to +85 degrees Celsius, enabling consistent performance in varied environmental conditions.
Physical dimensions measure 95 mm long, 45 mm wide, and 17 mm high, balancing compact size with functionality. It complies with RoHS environmental standards, supporting eco-friendly applications.
The antenna operates between 700 MHz and 2.1 GHz frequency bands. It includes an SMA male connector and 1 meter RG174 cable lead. The puck antenna is designed for external use with a secure threaded mounting. It delivers a gain of 2 dBi in an omni-directional radiation pattern.
The plastic enclosure with rubber seal protects against moisture and industrial conditions. Suitable for industrial, transportation, and commercial wireless communications. Operating temperature range is -40 to +85 °C for rugged environments.
Quarter-wave dipole internal construction ensures robust reception. Meets RoHS compliance for environmental standards. Compact dimensions of 95 x 45 x 17 mm allow flexible placement.
This antenna is suitable for applications in industries including telecommunications, transportation, manufacturing, and IoT systems, providing reliable multi-band connectivity in challenging environments.
Discover more options and accessories in the Multi-Band Antenna category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates between 700 MHz and 2.1 GHz frequency bands.
The antenna provides a gain of 2 dBi.
It features a male SMA connector.
The antenna includes a 1 meter RG174 cable lead.
It can operate effectively within a temperature range of -40 to +85 degrees Celsius.
The antenna measures 95 mm in length, 45 mm in width, and 17 mm in height.
It is designed for external mounting with a through hole/bolted fixture.
It utilizes a quarter-wave dipole design for reliable signal reception.
Yes, it meets RoHS standards for environmental compliance.
The antenna is manufactured in India.
