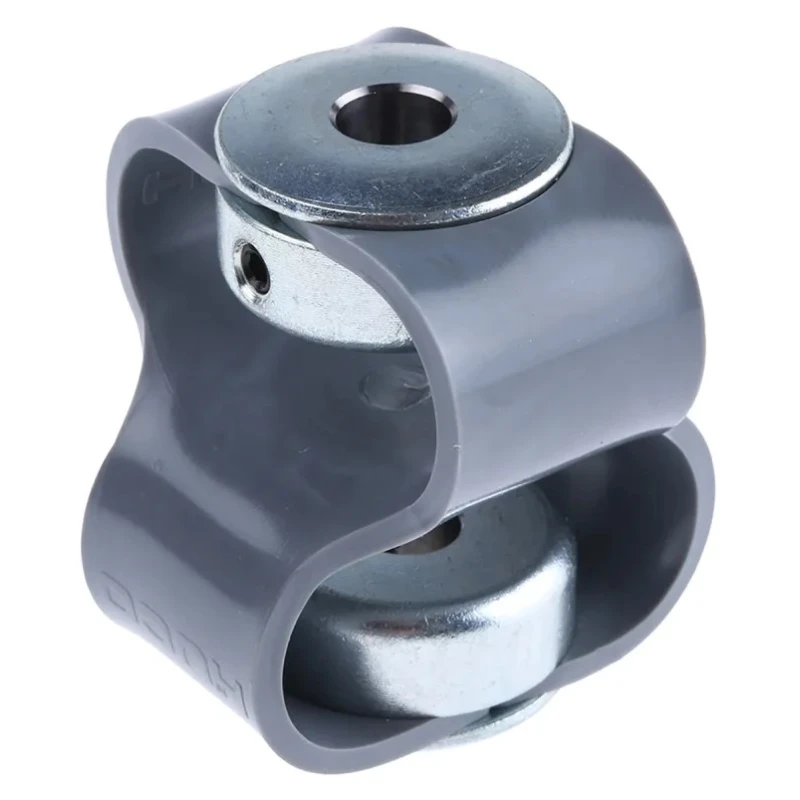

Huco 48 mm Diameter Coupler, 48 mm Length, 8 mm Bore A, 8 mm Bore B Flex-P Series 047.20.2828.RS

Huco 047.20.2828.RS is a 48 mm diameter mechanical power transmission coupler belonging to the Flex-P series. It features a 48 mm length with 8 mm bore on both sides, designed for use in a variety of industrial mechanical power transmission settings.

Made of high-quality steel, this coupler offers strong corrosion resistance and excellent mechanical strength. The coupling employs a set screw style fitting that allows for straightforward installation and reliable clamping.

The design includes a double loop coupling configuration combined with a Hytrel polyester elastomer flex element. This flex element provides excellent strength while also delivering heat and chemical resistance, making it versatile for demanding environments.

The coupler tolerates radial, angular, and axial misalignment making it suitable for applications involving shaft alignment corrections. It supports misalignment of up to 15° angular and 7.5 mm axial, allowing efficient transmission of torque up to 1.8 Nm at operational speeds reaching 3000 rpm.

It performs reliably over a broad temperature range from -40°C minimum to 100°C maximum operating temperature. This durability and flexibility make it suitable for mechanical power transmission tasks in industrial machinery, manufacturing, HVAC systems, and other fluid power applications.

Corrosion-resistant steel construction for durability and long service life. Set screw fitting type for secure and easy installation. Flexible coupling design corrects angular, radial, and axial misalignment. Hytrel polyester elastomer flex element ensures strength and resistance to heat and chemicals.

Supports speeds up to 3000 RPM and torque up to 1.8 Nm. Operates effectively between -40°C and 100°C temperature range. Ideal for industrial, mechanical, and power transmission applications. Manufactured in the United Kingdom ensuring adherence to quality standards.

This coupling is part of the Flex-P series, designed for robust and flexible mechanical power transmission solutions. It is available as a single piece with specifications suitable for various mechanical and industrial assembly uses.
