Fordata LCD Graphic Display, Yellow-Green Illumination, 2 x 16 Characters, Viewing Area 66x16 mm, Model FC1602G01-RNNYBW-66SE

Free Delivery in India | Lowest Global Shipping Charges

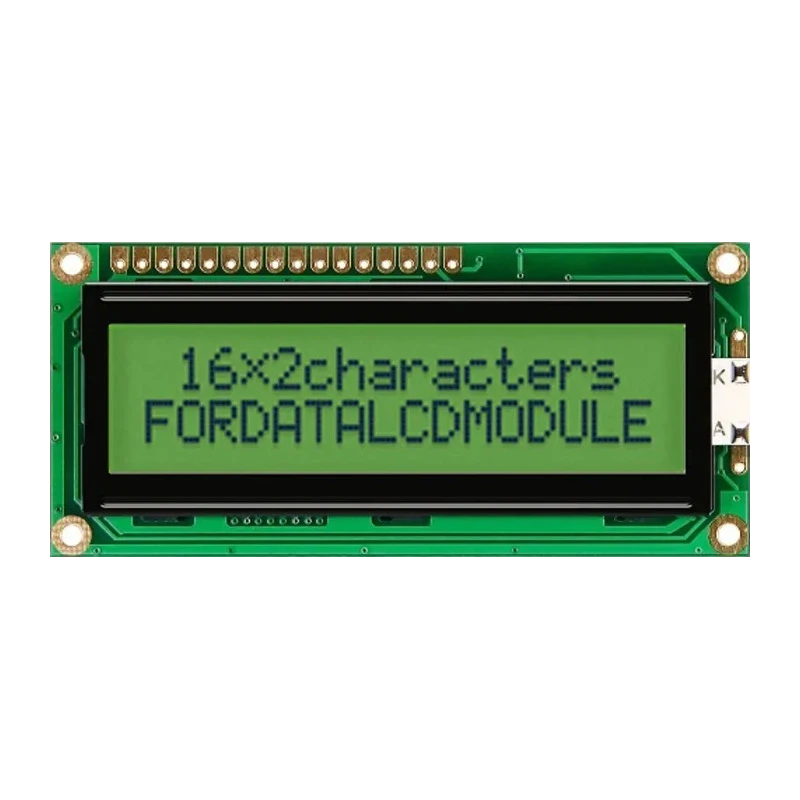

Fordata LCD Graphic Display, Yellow-Green Illumination, 2 x 16 Characters, Viewing Area 66x16 mm, Model FC1602G01-RNNYBW-66SE

Name: Fordata LCD Graphic Display, Yellow-Green Illumination, 2 x 16 Characters, Viewing Area 66x16 mm, Model FC1602G01-RNNYBW-66SE
Brand: Fordata
SKU: 148628
Price: 16.16 USD
Availability: InStock



Category LCD Graphic Display Brand Fordata Condition New

Specifications

Country of Origin	China
Display Type	LCD
Brand	Fordata
Model	FC1602G01-RNNYBW-66SE
Series	FC
Character height	5.8mm
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-20°C
External Width	80mm
External Depth	9.5mm
External Height	36mm
Standards/Approvals	RoHS
Character Width	3mm
Illumination Colour	Yellow, Green
Viewing Area Dimensions	66 x 16 mm
Character Matrix	2 x 16

Key Features

2 x 16 character matrix with 5.8mm character height.
Viewing area dimensions are 66 x 16 mm with external dimensions 80 x 36 x 9.5 mm.
Built-in controller (SPLC780D or equivalent) with 1/16 duty cycle.
Operates within a temperature range from -20°C to 70°C.
Compatible with 4-bit or 8-bit MPU interface and +5.0V power supply.
Backlighting driven by PIN1, PIN2, PIN15, PIN16, or A, K pins.
RoHS compliant ensuring environmental safety standards.

Product Description

Fordata FC1602G01-RNNYBW-66SE LCD Graphic Display offers a 2 x 16 character matrix specifically designed for electronic component applications requiring yellow and green illumination. It provides clear visibility in various industrial conditions with a viewing area of 66 by 16 millimeters and a compact external size of 80 millimeters width, 36 millimeters height, and 9.5 millimeters depth.

Equipped with a built-in SPLC780D equivalent controller, this display supports 1/16 duty cycle operation and interfaces effortlessly via 4-bit or 8-bit MPU, powered by a +5.0V supply. It functions reliably over a wide temperature range from -20°C to 70°C, suitable for demanding environmental conditions.

The display’s backlight can be activated through multiple pin options, allowing flexibility in integration. Compliant with RoHS standards, it adheres to environmental and safety norms ensuring sustainable manufacturing and usability.

2 x 16 character matrix with 5.8mm high characters for clear readability. Compact dimensions of 80 x 36 x 9.5 mm for easy mounting in electronic devices. Operating temperature range from -20°C to 70°C for versatile industrial use.

Controller included with support for 4-bit and 8-bit interface modes. Yellow-green illumination enhances display contrast and visibility. RoHS compliance guarantees adherence to hazardous substance restrictions. Commonly used in electronic assembly, instrumentation, control panels, and communication devices.

This display module is ideal for industrial automation, laboratory instrumentation, HVAC control systems, and embedded electronics where reliable visual feedback is essential. The versatility and technical features of the Fordata FC1602G01-RNNYBW-66SE make it a dependable choice for manufacturers and engineers.
