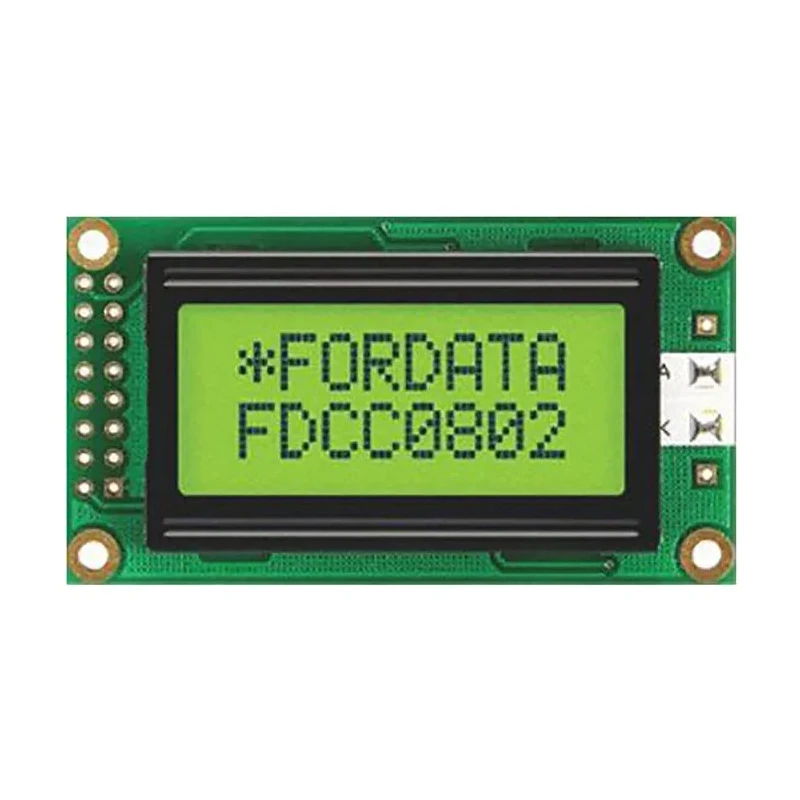

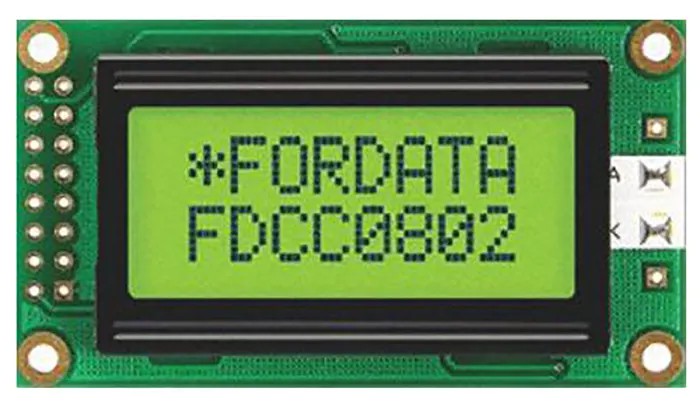

Fordata LCD Alphanumeric Display 2 x 8 Characters Yellow Green LED Backlight 5 V 4 Bit Interface FC0802B00-FHYYBW-51SE
Specifications
| Country of Origin | China |
|---|---|
| Display Type | Alphanumeric |
| Brand | Fordata |
| Model | FC0802B00-FHYYBW-51SE |
| Series | FC |
| Character height | 5.6mm |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| External Width | 58mm |
| External Depth | 10.8mm |
| External Height | 32mm |
| Interface Type | 4 Bit |
| Standards/Approvals | RoHS |
| Character Width | 3mm |
| Illumination Colour | Yellow, Green |
| Viewing Area Dimensions | 38 x 16 mm |
| Backlight Type | LED |
| Character Matrix | 2 x 8 |
Key Features
- Features a 2 x 8 character matrix with 5 x 8 dots per character.
- Uses a 4-bit interface for versatile connectivity.
- Backlight uses yellow and green LEDs for illumination.
- Operating voltage is 5 V with a 1/16 duty cycle power supply.
- Operating temperature ranges from -20°C to 70°C.
- Viewing area measures 38 x 16 mm for concise display output.
- Employs transflective STN LCD technology for better power efficiency and readability.
- Compliant with RoHS standards assuring environmental safety.
Product Description
Fordata FC0802B00-FHYYBW-51SE LCD Alphanumeric Display is a precise 2 x 8 character module designed with LED backlighting in yellow and green colors and powered at 5 V. It integrates a transflective Super-Twisted Nematic (STN) LCD matrix that allows crisp text display with low power consumption suitable for various electronic applications.
The 5 x 8 dot character matrix ensures clear alphanumeric representation with individual character height of 5.6 mm and width of 3 mm. The display module supports a 4-bit interface for easy integration into embedded systems and electronic devices, providing dependable performance in diverse operating temperatures ranging from -20°C to 70°C. Its compact external dimensions (58 mm width, 32 mm height, and 10.8 mm depth) make it adaptable for confined spaces.
The module’s LED backlight with yellow and green illumination improves visibility even in low light environments while conserving energy due to low power requirements typical of STN technology. This display complies with RoHS standards, ensuring eco-friendly manufacturing.
Applications range across industrial control panels, instrumentation, laboratory equipment, and consumer electronics requiring reliable alphanumeric data display with outstanding readability and durability.
2 x 8 character alphanumeric LCD with LED backlight in yellow and green. Transflective STN LCD technology for efficient power use and wide viewing angles. 4-bit interface compatible with standard electronic system architectures.
Operating temperature range from -20°C to 70°C suitable for harsh environments. Compact size for versatile device applications. RoHS compliant for environmental and safety standards.
Explore related Fordata LCD displays and modules to find the best solution for your electronics design and industrial control system needs. EnvMart offers detailed catalogues of Fordata brand displays for professional and industrial applications.
Explore more products in our LCD Monochrome Display category.
