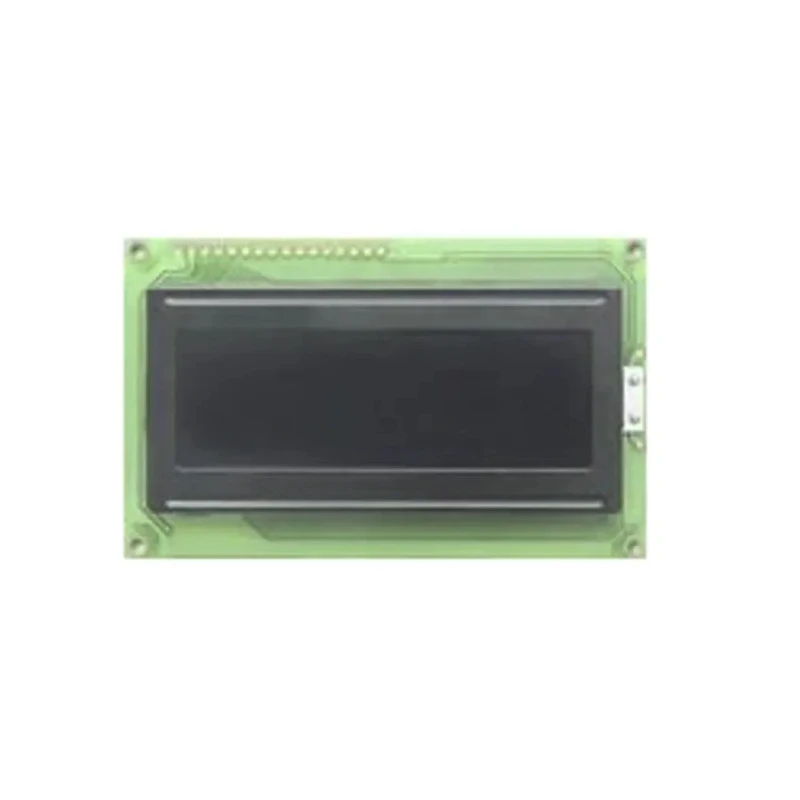

Fordata LCD Graphic Display 4 x 20 Characters Yellow Green FC2004B01-RNNYBW-66SE
Specifications
| Country of Origin | China |
|---|---|
| Display Type | LCD |
| Brand | Fordata |
| Model | FC2004B01-RNNYBW-66SE |
| Series | FC |
| Character height | 5.4mm |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| External Width | 98mm |
| External Depth | 9.5mm |
| External Height | 60mm |
| Standards/Approvals | RoHS |
| Character Width | 3mm |
| Illumination Colour | Yellow, Green |
| Viewing Area Dimensions | 76 x 25 mm |
| Character Matrix | 4 x 20 |
Key Features
- This display offers a viewing area dimension of 76 x 25 mm suitable for various electronic applications.
- It operates within a temperature range of -20°C to 70°C ensuring reliability in harsh environments.
- The display thickness is compact at 9.5 mm, easing integration into tight spaces.
- The character height and width are 5.4 mm and 3 mm respectively for clear readability.
- Designed with a built-in SPLC780D controller compatible with 4-bit or 8-bit MPU interfaces.
- Supports a 1/16 duty cycle and requires a +5.0 V power supply option.
- Compliant with RoHS standards, ensuring environmental safety.
Product Description
Fordata FC2004B01-RNNYBW-66SE is an advanced LCD Graphic Display designed for industrial and electronic component uses. With a character matrix of 4 x 20, it offers high clarity and functional display capabilities with yellow and green illumination colors. The display features a viewing area of 76 x 25 mm and a slim external depth of 9.5 mm, making it ideal for compact electronic devices.
This display operates reliably over a wide temperature range from -20°C to 70°C, suitable for industrial, laboratory, and commercial environments. Characters measure 5.4 mm in height and 3 mm in width, ensuring excellent legibility. The built-in SPLC780D or equivalent controller supports flexible interfacing with 4-bit or 8-bit MPU systems and includes a 1/16 duty cycle for efficient power consumption.
Power supply requirements include +5.0 V, with alternative availability for +3.0 V. The display features a Backlight (BKL) driven by PIN1, PIN2, or PIN15, PIN16, or terminals A and K. It complies fully with RoHS environmental standards that guarantee reduced hazardous substances.
Ideal applications include electronic manufacturing, instrumentation panels, control units, and embedded systems requiring clear graphic data display with environmental resilience. The compact size and controller integration simplify installation and reduce peripheral hardware needs, improving system efficiency and reliability.
This display features a 4 x 20 character matrix with yellow and green illumination. Viewing area is 76 x 25 mm, with external dimensions of 98 mm width and 60 mm height. Operates between -20°C and 70°C, suitable for robust environmental conditions.
Includes built-in SPLC780D or equivalent controller supporting 4-bit/8-bit MPU interfaces. Complies with RoHS standards ensuring environmental safety. Discover more LCD Graphic Displays and related electronic components at EnvMart to optimize your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The viewing area dimensions of this display are 76 x 25 mm.
This model features a character matrix of 4 x 20.
It operates within a temperature range of -20°C to 70°C.
It includes a built-in SPLC780D controller compatible with 4-bit or 8-bit MPU interfaces.
The display requires a power supply of +5.0 V, with an alternative option of +3.0 V available.
The external dimensions are 98 mm in width, 60 mm in height, and 9.5 mm in depth.
The character height is 5.4 mm and the character width is 3 mm.
This display supports yellow and green illumination colors.
Yes, it complies with RoHS standards, ensuring reduced hazardous substances.
It is suitable for applications in electronic manufacturing, instrumentation panels, control units, and embedded systems.
The display supports a 1/16 duty cycle for efficient power consumption.
The country of origin for this display is China.
