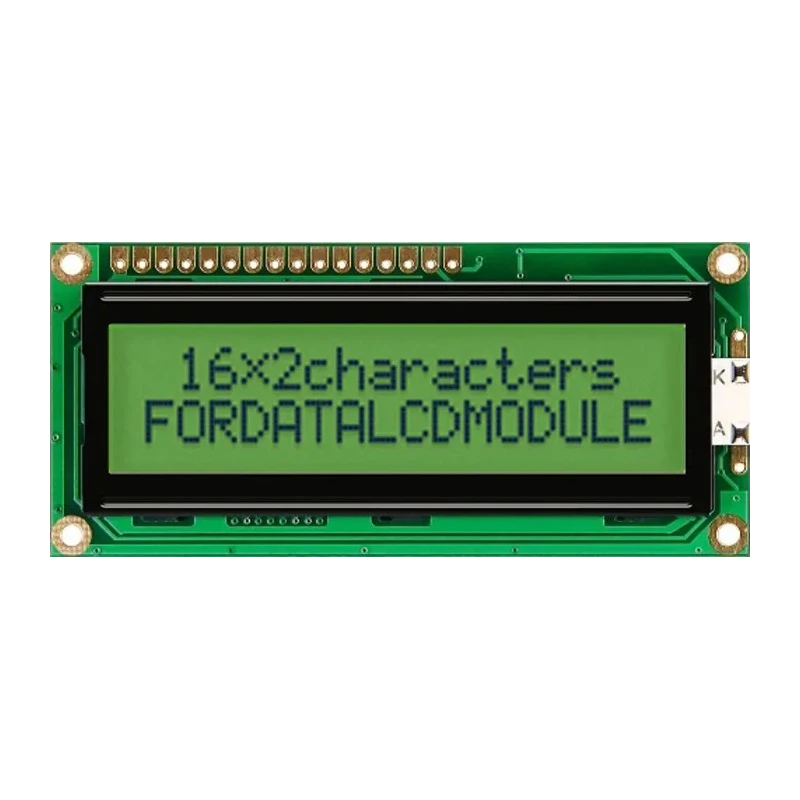

Fordata LCD Graphic Display 2 x 16 Characters, Yellow Green Illumination, 66 x 16 mm Viewing Area FC1602G01-RNNYBW-66SE

Fordata FC1602G01-RNNYBW-66SE is a precision LCD Graphic Display module designed for electronic and industrial applications requiring clear visual output. Featuring a 2 x 16 character matrix, this display module provides reliable performance with yellow and green illumination colors enhancing visibility under diverse lighting conditions.

The display boasts a viewing area dimension of 66 x 16 mm, with individual character dimensions of 5.8 mm height and 3 mm width, delivering high resolution readability. Constructed with a built-in SPLC780D or equivalent controller, it supports both 4-bit and 8-bit MPU interfaces, offering versatility for integration into various control systems. The power supply requirement is +5.0V, making it compatible with standard electronics supply voltages.

Designed for durability, the display operates efficiently in wide temperature conditions from -20°C to 70°C, making it suitable for industrial, laboratory, electronic manufacturing, and automation control environments. The compact external dimensions of 80 mm width, 36 mm height, and 9.5 mm depth allow easy mounting in constrained spaces.

This model complies with RoHS standards, endorsing its adherence to environmental and safety requirements. The backlight is not included, allowing customization if needed. The display backlight can be driven via PIN1, PIN2, PIN15, PIN16, or A and K pins.

The display features a 2 x 16 character matrix with yellow and green illumination. Viewing area measures 66 x 16 mm with character height of 5.8 mm and width of 3 mm. Integrated controller compatible with SPLC780D or equivalent ensures seamless communication.

Supports 4-bit or 8-bit MPU interface with a +5.0V power supply. Wide operating temperature range from -20°C to 70°C for versatile applications. Compact external size of 80mm width, 36mm height, and 9.5mm depth for flexible installation.

RoHS compliance guarantees environmentally safe product.

This LCD Graphic Display is widely used in electronics manufacturing, automation systems, laboratory instrumentation, and embedded system designs where clear visual text display is crucial. It provides an effective solution for interfacing with microcontrollers, PLCs, and other control devices requiring character-based visual output.
