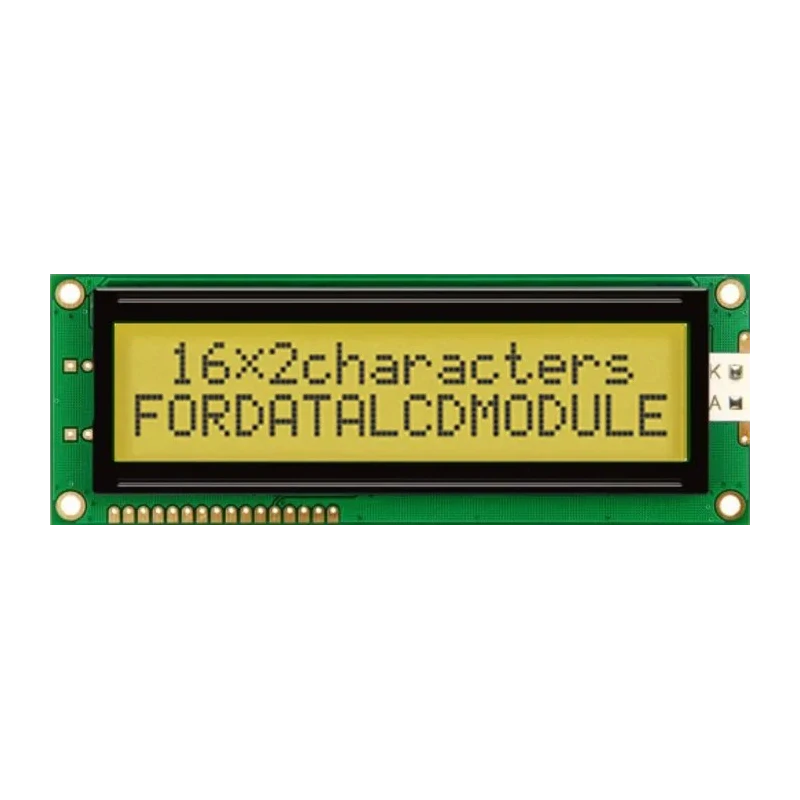

Fordata LCD Graphic Display Yellow Green, 2 x 16 Character Matrix FC1602P00-FHYYBW-51SE
Specifications
| Country of Origin | China |
|---|---|
| Display Type | LCD |
| Brand | Fordata |
| Model | FC1602P00-FHYYBW-51SE |
| Series | FC |
| Character height | 9.7mm |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| External Width | 122mm |
| External Depth | 13.2mm |
| External Height | 44mm |
| Standards/Approvals | RoHS |
| Character Width | 4.8mm |
| Illumination Colour | Yellow, Green |
| Viewing Area Dimensions | 99 x 24 mm |
| Backlight Type | LED |
| Character Matrix | 2 x 16 |
Key Features
- The display uses LCD technology with an LED backlight for enhanced brightness.
- Viewing area dimensions are 99 x 24 mm ensuring compact size.
- Operates reliably within a temperature range from -20°C to 70°C.
- Includes a built-in controller compatible with SPLC780D or equivalent.
- Supports 4-bit or 8-bit MPU interface and 1/16 duty cycle operation.
- Backlight can be driven by multiple pins for flexible integration.
- Character height is 9.7 mm with width of 4.8 mm for clear character display.
- Designed to comply with RoHS standards ensuring environmentally safe usage.
Product Description
Fordata FC1602P00-FHYYBW-51SE LCD Graphic Display is a high-quality display module designed for electronic and industrial applications requiring clear text and graphic presentation. Featuring a 2 x 16 character matrix and LED backlight, this display offers yellow and green illumination on a yellow-green background, ensuring excellent readability in varied lighting conditions.
The display module has a compact footprint with external dimensions of 122 mm width, 44 mm height, and 13.2 mm depth. Its viewing area measures 99 x 24 mm, optimized for integration into diverse equipment such as control panels, instrumentation, and embedded systems.
It is engineered for robust performance with a wide operating temperature range from -20°C to 70°C, suitable for industrial environments. The built-in controller (SPLC780D or equivalent) enables easy interfacing with common microprocessor units using 4-bit or 8-bit MPU interfaces and operates at a 1/16 duty cycle with pin-selectable backlight control.
This display complies with RoHS standards, affirming its environmental and safety qualifications, and includes a +5.0V power supply facility with alternative +3.0V availability. The character size (9.7 mm height and 4.8 mm width) ensures text clarity and accuracy for user displays.
Applications of this display module span industrial automation, instrumentation, laboratory equipment, and commercial electronics requiring reliable, clear LCD output. Its compatibility with a variety of backlight drive pins provides design flexibility for various product integration scenarios.
The display uses LCD technology with an LED backlight for enhanced brightness. Viewing area dimensions are 99 x 24 mm ensuring compact size. Operates reliably within a temperature range from -20°C to 70°C. Includes a built-in controller compatible with SPLC780D or equivalent.
Supports 4-bit or 8-bit MPU interface and 1/16 duty cycle operation. Backlight can be driven by multiple pins for flexible integration. Character height is 9.7 mm with width of 4.8 mm for clear character display. Designed to comply with RoHS standards ensuring environmentally safe usage.
For further technical specifications and related display modules, browse the LCD Graphic Display category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The external dimensions of the display are 122 mm in width, 44 mm in height, and 13.2 mm in depth.
It operates reliably within a temperature range from -20°C to 70°C.
The display features a 2 x 16 character matrix, allowing for 32 characters to be displayed at once.
The character height is 9.7 mm and the character width is 4.8 mm, ensuring clear text visibility.
It uses an LED backlight, which enhances brightness and readability.
It supports 4-bit or 8-bit MPU interfaces, making it versatile for various applications.
The viewing area dimensions are 99 x 24 mm, optimized for clear visibility.
Yes, it is designed to comply with RoHS standards, ensuring environmentally safe usage.
It includes a +5.0V power supply facility, with an alternative +3.0V availability.
The illumination color is yellow and green, providing clear visibility against a yellow-green background.
This display is suitable for applications in industrial automation, instrumentation, laboratory equipment, and commercial electronics.
It includes a built-in controller compatible with SPLC780D or equivalent, facilitating easy interfacing.
