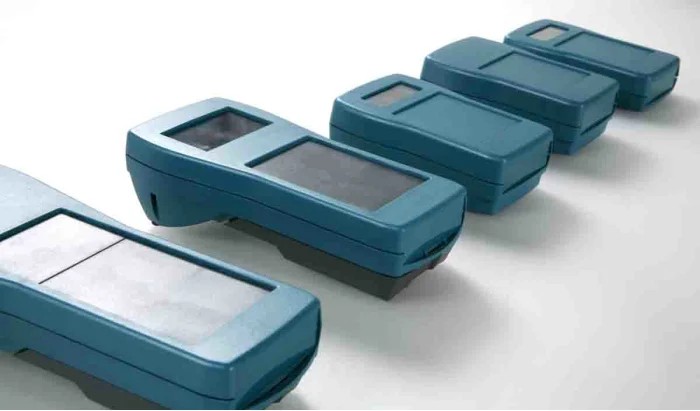

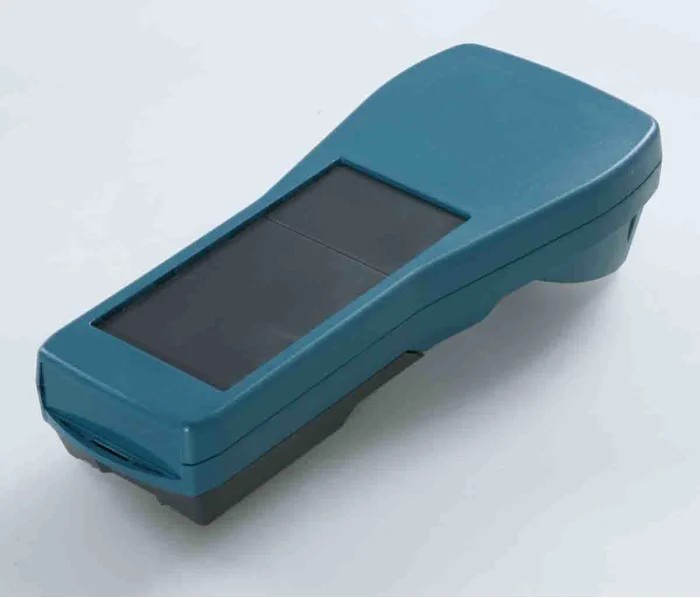

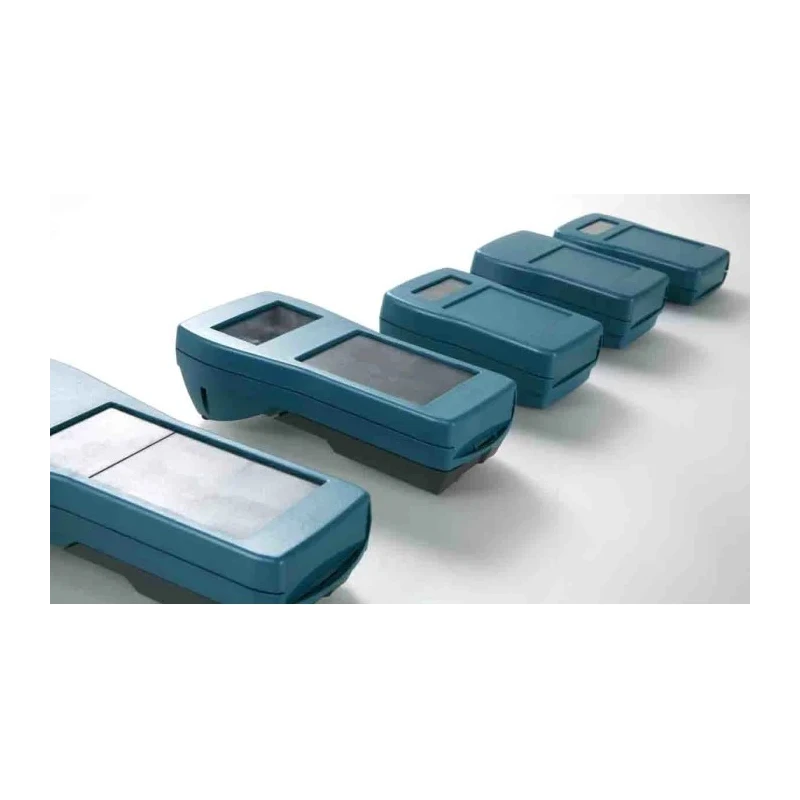

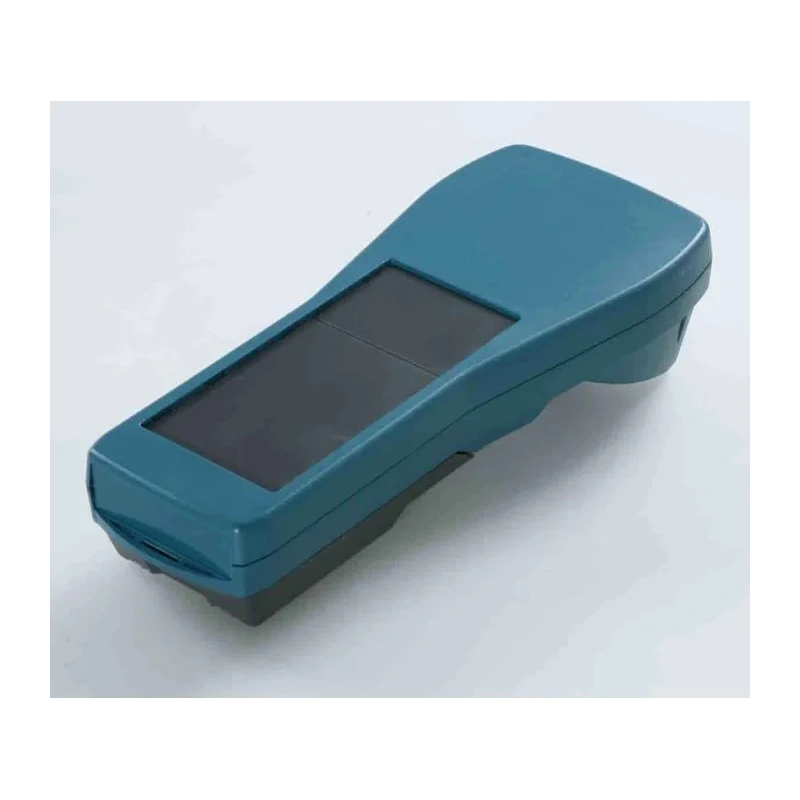

Rose Taguan Series Blue, Green ABS Handheld Enclosure Integral Battery Compartment Display Window IP40 180mm x 37.5 270104000

Rose brand handheld enclosure model 270104000 is part of the Taguan series, made from robust ABS material with an integral battery compartment and a display window. The enclosure measures 180 mm in length and 37.5 mm in height with a width of 84 mm. Designed ergonomically, it provides flexible space ideal for mounting scanners, measuring sensors, card readers, and PCMCIA slots, making it suitable for mobile data collection and varied industrial applications.

Its IP40 rating according to EN 60529 offers protection against solid objects larger than 1 mm, although it is not waterproof, making it suitable for indoor environments where ingress protection from dust and solid particles is required. The enclosure includes features such as a keypad recess, screw-based internal mount type, and flame retardant properties compliant with UL 94 HB standards.

The Taguan series handheld enclosures offer durability with a surface resistance compliant with IEC 60093 and disruptive strength defined by IEC 60423-1, ensuring reliable performance in challenging industrial environments. The operating temperature range of -40°C to +80°C enables use in diverse industrial, manufacturing, and automation contexts.

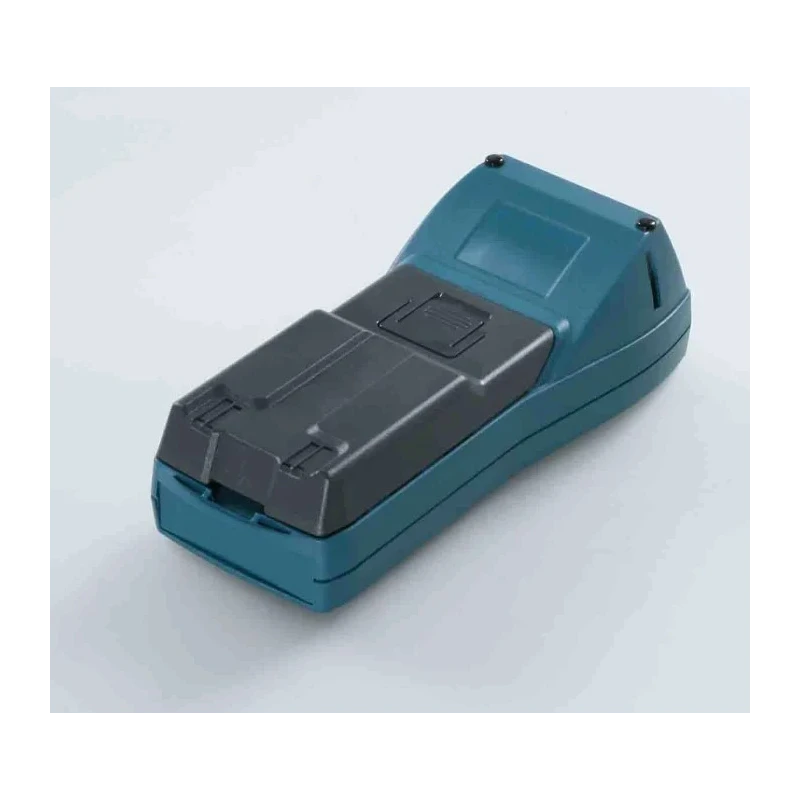

Each unit comes supplied with top and bottom sections, a keyboard cover, battery compartment and cover, head and shaft cover, as well as all necessary fixing and enclosure screws. The open version includes a display screen with a punched seal for enhanced functionality.

Typical applications include mobile data collection devices, scanners, measuring sensors, chip or magnetic card readers, and PCMCIA slots. Constructed from ABS material offering sturdy enclosure body. Integral battery compartment allows battery installation and access.

Display window enhances device monitoring and interaction. IP40 rating provides dust and solid object protection. Ergonomic and flexible design suits mobile data devices and sensors. Compliance with RoHS and UL 94 HB ensures safety and environmental standards.

Operating temperature from -40°C to +80°C for various industrial settings. Comes complete with mounting hardware and covers for assembly. Suitable for applications in electrical enclosure and industrial automation systems.

This product is manufactured in Germany and represents a high-quality solution for Handheld Enclosure needs. Explore the Rose brand and Taguan series enclosures for reliable industrial-grade protection and functionality on EnvMart.
