EOS 30W 15V dc Regulated AC-DC Adapter with 2.1 x 5.5 x 9.5 mm Centre Positive Right Angle Jack LFZVC30NP15-I

Free Delivery in India | Lowest Global Shipping Charges

EOS 30W 15V dc Regulated AC-DC Adapter with 2.1 x 5.5 x 9.5 mm Centre Positive Right Angle Jack LFZVC30NP15-I



Category Electronic Components, Power & Connectors Brand EOS Condition New

Specifications

Country of Origin	India
Brand	EOS
Power	30W
Efficiency	80%
Length	82mm
Model	LFZVC30NP15-I
Depth	35.7mm
Cable Length	1.52m
Width	43.5mm
Series	LFZVC30
Maximum Operating Temperature	40°C
Sub Type	AC-DC Converter Power Supplies
Load Regulation	±5 %
Minimum Operating Temperature	-10°C
Plug Type	AUS, CH, EU, UK, US/Japan
Number of outputs	1
Maximum Input Voltage	264V ac
Output Voltage	15V dc
Standards/Approvals	ErP Compliant
Minimum Input Voltage	100V ac

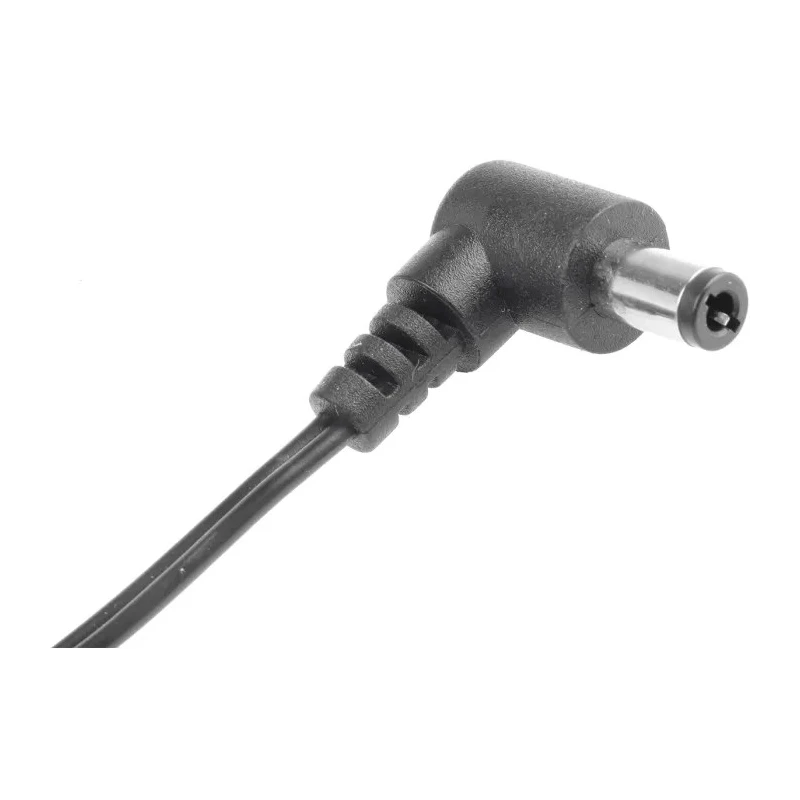

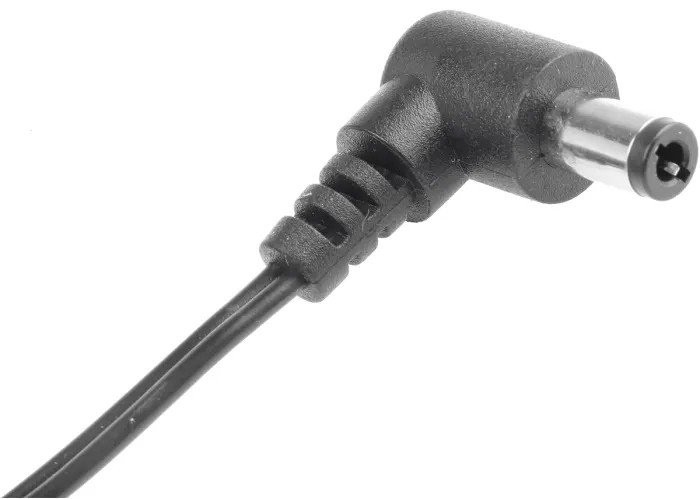

Output Connector Type	2.1 x 5.5 x 9.5 mm Centre Positive - Right Angle Jack
Input Connector Type	Universal Plug
Adapter Current	2A
Energy Efficiency Level	IV
Regulated/Unregulated	Regulated

Key Features

Supports universal plug input voltages from 100V to 264V AC.
Equipped with a 1.52m cable length and single output.
Operates efficiently at 80% energy efficiency level IV standards.
Designed to operate between -10°C to 40°C temperature range.
Complies with ErP regulations and safety standards including UL, TUV, and EN60950-1.
Provides load regulation of ±5% ensuring stable output.

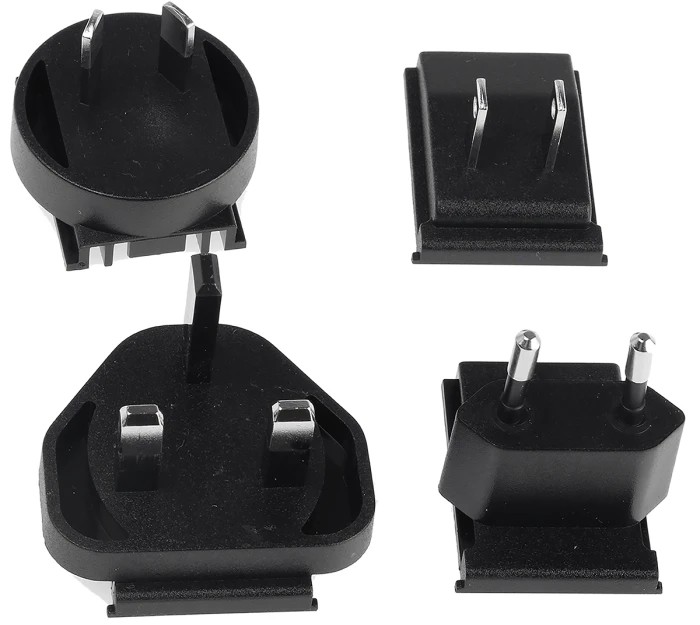

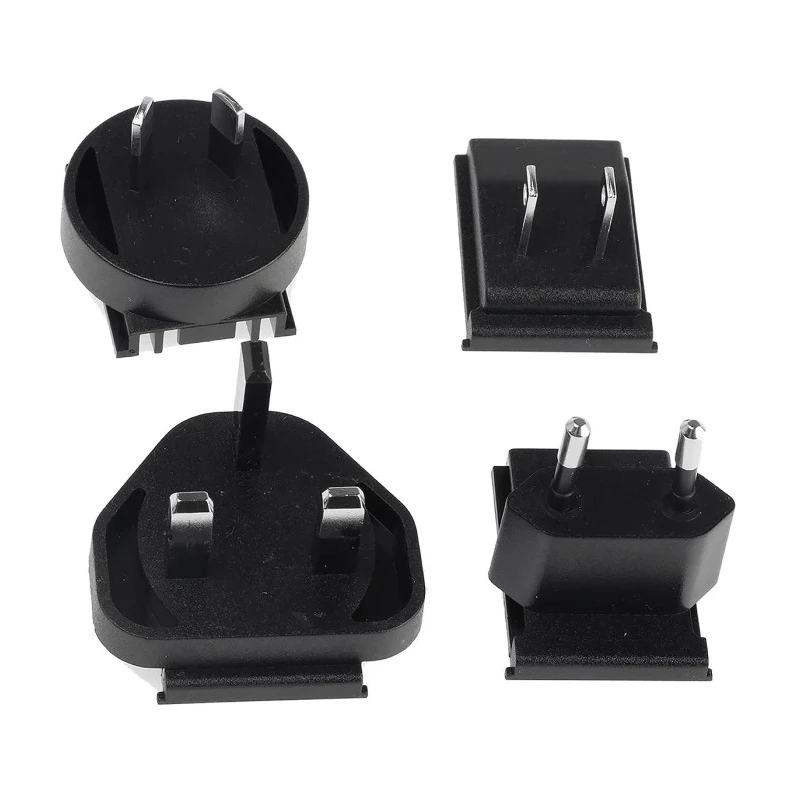

Includes AUS, CH, EU, UK, and US/Japan interchangeable plugs for global use.
Compact dimensions of 82mm length, 43.5mm width, and 35.7mm depth.

Product Description

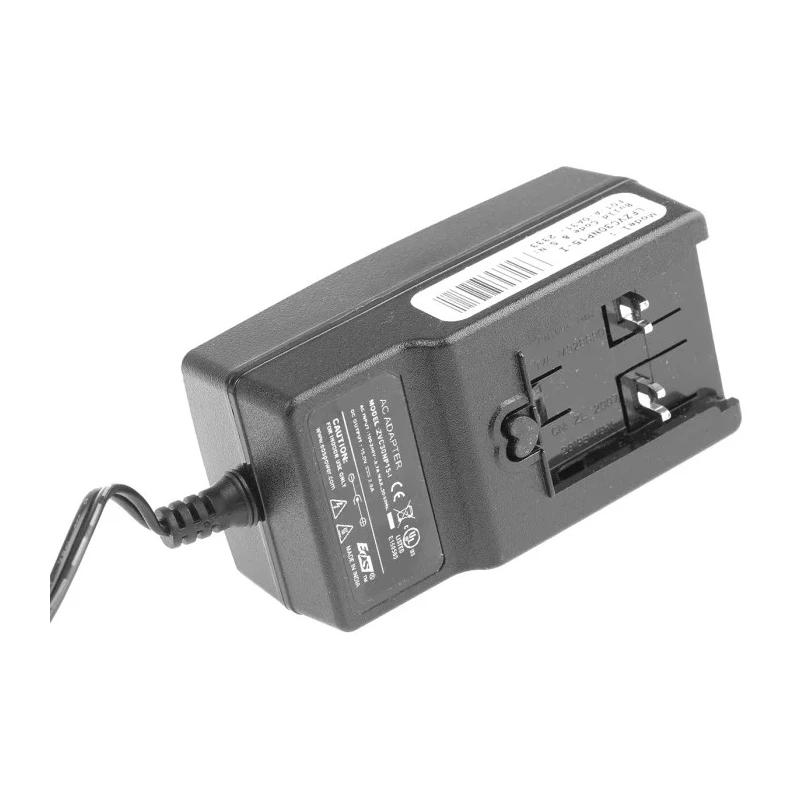

The EOS LFZVC30NP15-I is a high-efficiency 30W AC-DC adapter designed to deliver a regulated 15V DC output with a centre positive right angle jack connector measuring 2.1 x 5.5 x 9.5 mm. This adapter supports universal input voltages ranging from 100V to 264V AC, making it suitable for global applications. The interchangeable plug tops for AUS, CH, EU, UK, and US/Japan markets ensure versatility and convenience.

With an energy efficiency level IV rating and an 80% efficiency, the LFZVC30NP15-I minimizes power loss while providing reliable performance. It operates safely within a wide temperature range of -10°C to 40°C and comes equipped with EMI/RFI filtering compliant with EN55022-B, FCC2/15-B, and CISPR22-B standards to minimize interference.

This regulated power supply features load regulation of ±5%, ensuring a stable and consistent output current of 2A. Its compact size with dimensions of 82mm in length, 43.5mm in width, and 35.7mm in depth offers ease of use and installation in various environments.

The LFZVC30NP15-I series adapters are ideal for use in portable computing, multimedia devices, industrial equipment, networking gear, printers, and battery charging systems. Their fanless design allows silent operation without additional cooling requirements, and the adapter complies with UL, CSA, TUV, and EN60950-1 safety standards.

Supports universal input voltage and global interchangeable plugs. Compact design with reliable and regulated power output. Energy efficient and compliant with multiple safety and emissions standards. Suitable for multiple industrial and commercial applications.

Includes 1.52 meter output cable with right angle centre positive connector. Explore more AC/DC adapters and power supplies in EnvMart to find compatible solutions for your needs.
