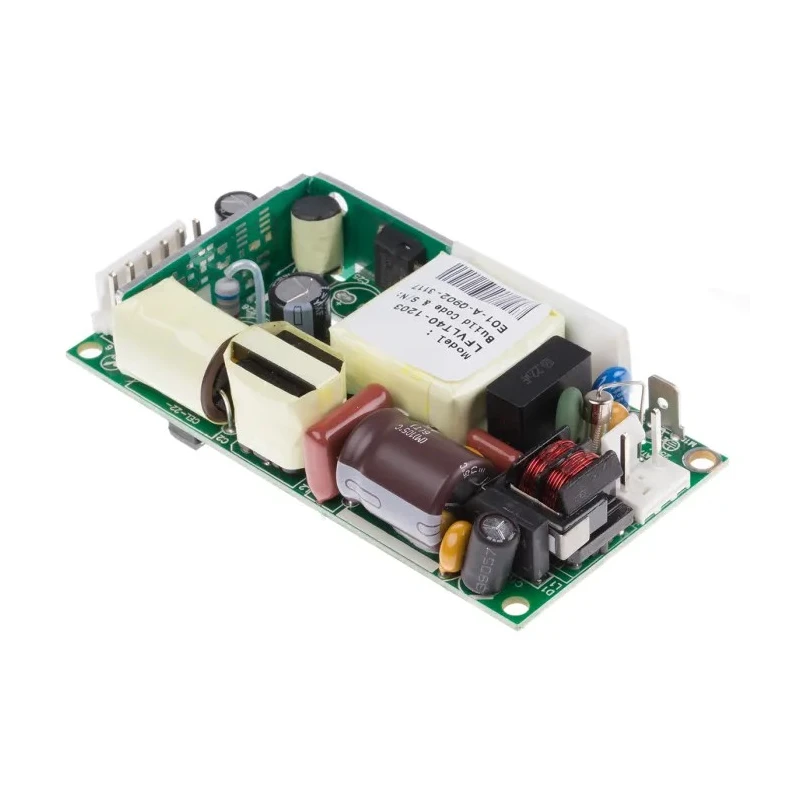

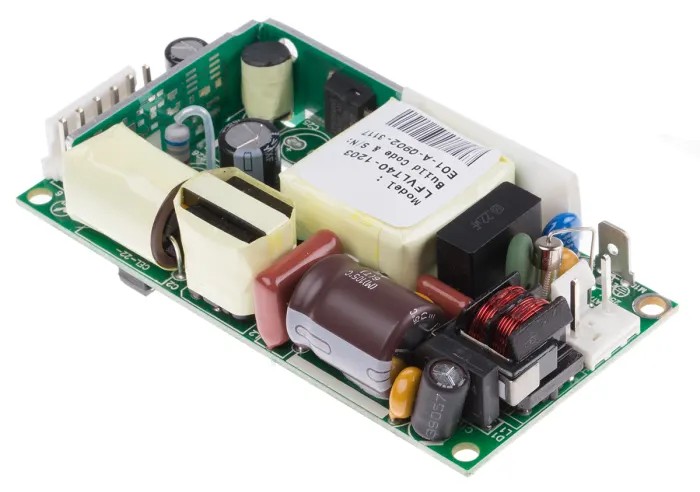

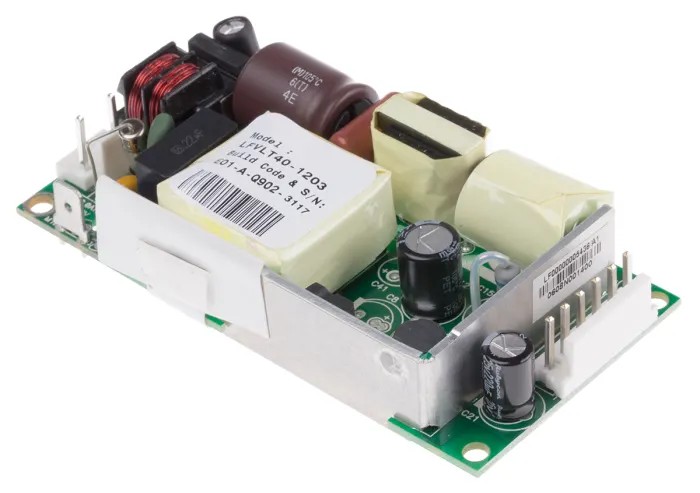

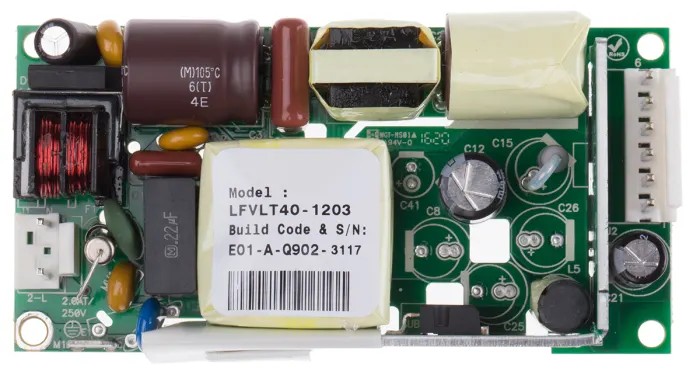

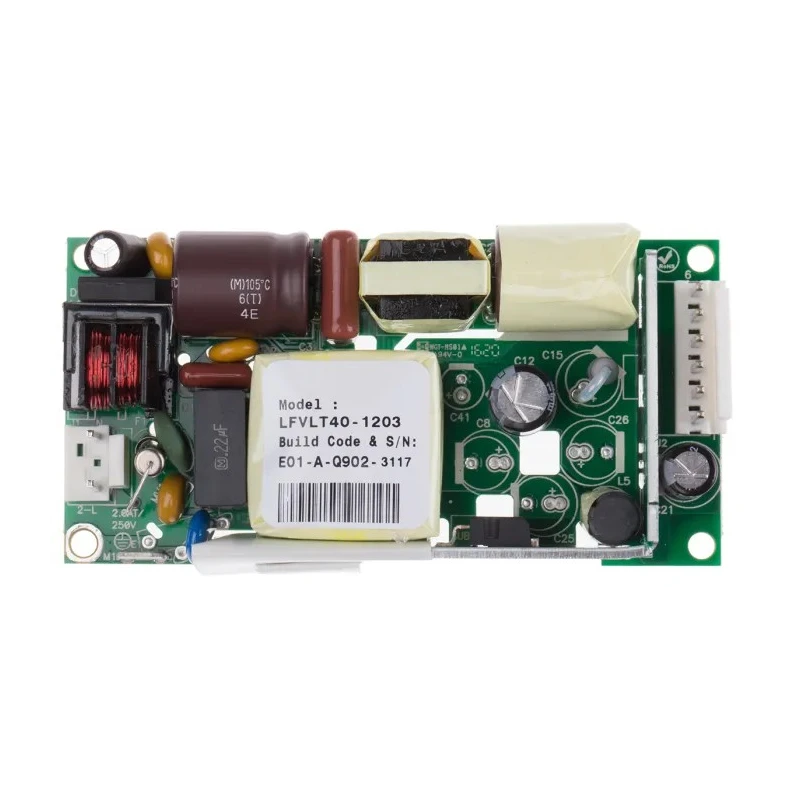

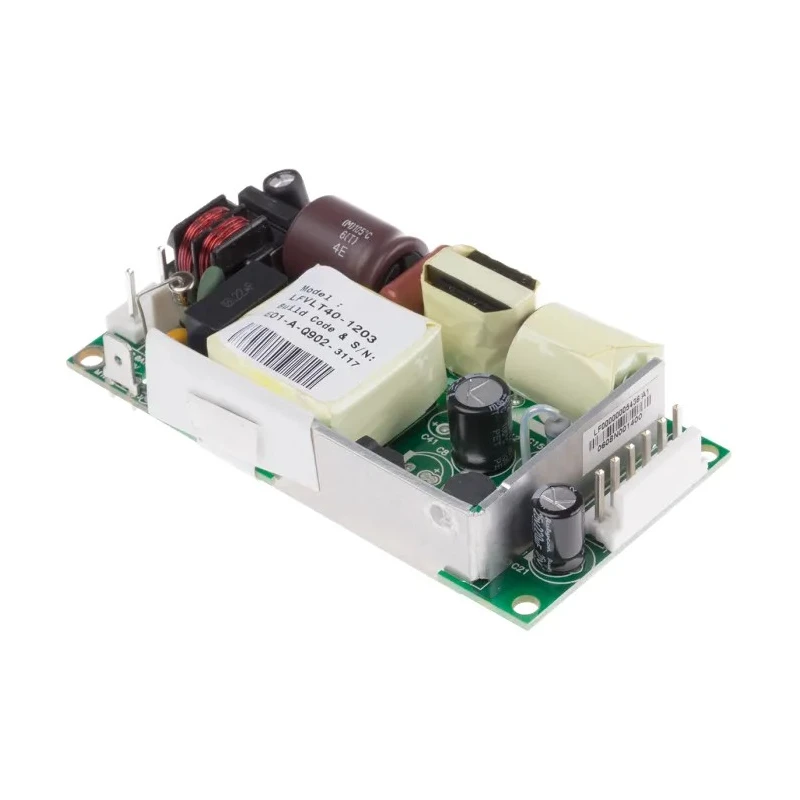

EOS Switching Power Supply 24V 40W Chassis Mount VLT40 Series LFVLT40-1203

Free Delivery in India | Lowest Global Shipping Charges

EOS Switching Power Supply 24V 40W Chassis Mount VLT40 Series LFVLT40-1203



Category Electronic Components, Power & Connectors Brand EOS Condition New

Specifications

Country of Origin	India
Brand	EOS
Power	40W
Efficiency	82%
Length	101.6mm
Model	LFVLT40-1203
Depth	27.18mm
Gross Weight	150g
Width	50.8mm
Mount Type	Chassis
Series	VLT40
Maximum Operating Temperature	50°C
Minimum Operating Temperature	0°C
Number of outputs	1
Maximum Input Voltage	264V ac
Standards/Approvals	cUL, CE, NEMKO, RoHS, UL
Maximum Output Voltage	24V
SMPS Output Current	1.7A
Minimum Input Voltage	90V ac
PSU, auto select I/P, 110Vac, 230Vac, O/P 24V, 1.1A, 25WBrand	NEUTRAL

Key Features

Compact chassis mount design suitable for various installations.
Input voltage range from 90V ac to 264V ac supports universal power input.
Output current rated at 1.7A with high operational efficiency of 82%.
Operating temperature range from 0°C to 50°C ensures reliable performance.
Equipped with overvoltage, power limit, and short circuit protection for safety.
Complies with cUL, CE, NEMKO, RoHS, and UL standards.
MTBF greater than 100,000 hours indicating high reliability.
Designed specifically for electronic applications requiring switching power supplies.

Product Description

EOS LFVLT40-1203 is a robust switching power supply offering a maximum output voltage of 24V and power output of 40W. This chassis mount unit is designed for stable operation in industrial, electronic components, and manufacturing environments.

It accepts a wide input voltage range of 90V ac to 264V ac, providing flexibility for various power systems. The power supply delivers 1.7A output current at an efficiency rate of 82%, ensuring energy-efficient operation.

The device features comprehensive protection mechanisms including overvoltage, power limit, and short circuit safeguards to prevent damage and ensure safety during use. It is compliant with recognized international standards such as cUL, CE, NEMKO, RoHS, and UL, supporting reliable certification requirements.

With compact physical dimensions (101.6mm length, 50.8mm width, and 27.18mm depth) and a lightweight of 150 grams, it facilitates easy integration into electrical control panels and equipment racks. The operating temperature range from 0 to 50 degrees Celsius supports deployment in varied environmental conditions.

This power supply boasts a mean time between failures (MTBF) exceeding 100,000 hours, highlighting its durability and long service life. Compact chassis mount design suitable for constrained spaces. Wide universal AC input voltage range for versatile compatibility.

High efficiency rating reduces energy wastage. Multiple protection features for operational safety. Compliance with multiple international standards and certifications. Lightweight construction facilitates easier installation.

Robust design optimized for continuous industrial use. Designed for usage in electronic components and power distribution systems. RoHS compliant promoting environmentally friendly manufacturing. Includes VLT40 series benefits such as optional fan-assisted cooling solutions.

Ideal for industrial automation, electrical panels, manufacturing equipment, and power supply systems requiring reliable and efficient DC output power. Discover more power supply solutions in our Electronics & Electricals section at EnvMart.
