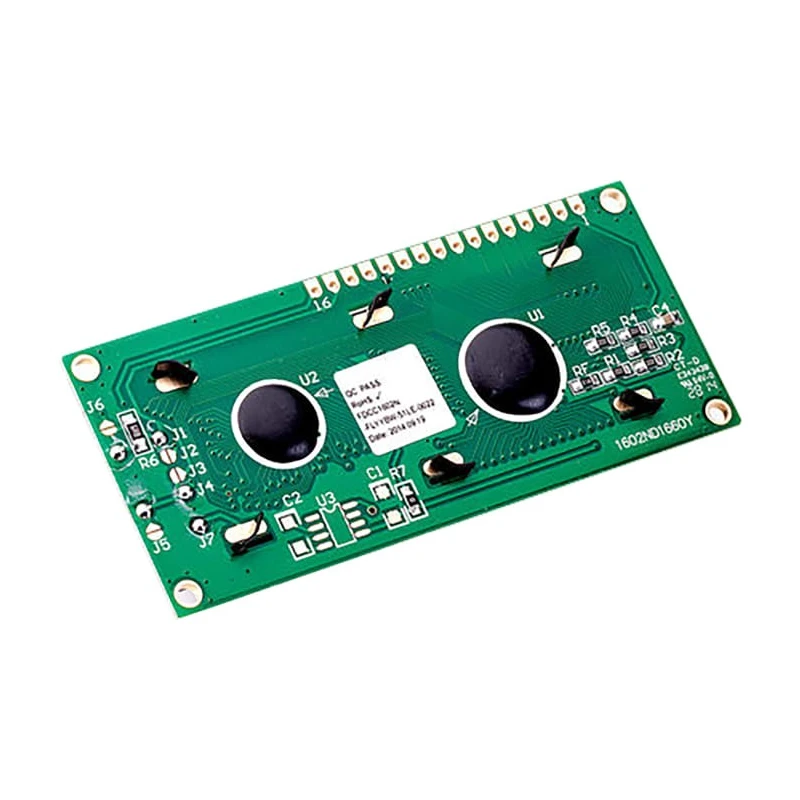

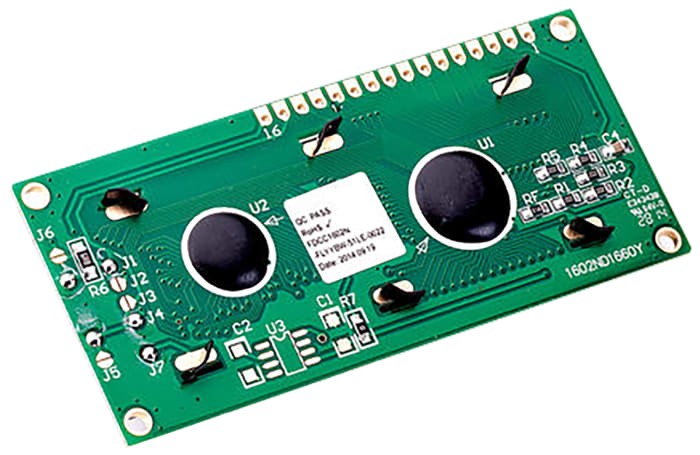

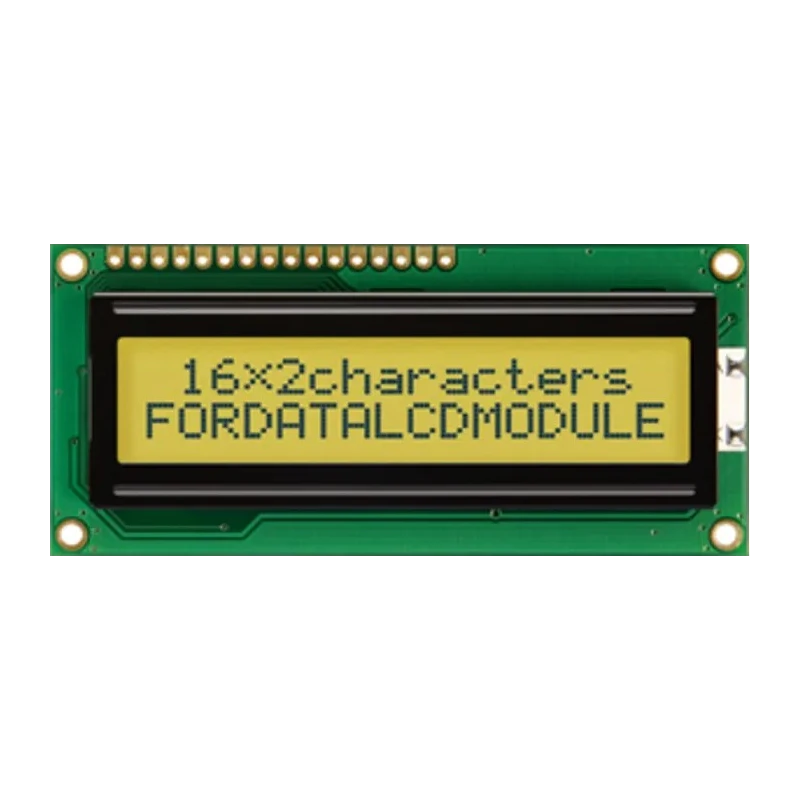

Fordata LCD Alphanumeric Display 2 x 16 Characters, LED Backlit, Yellow and Green Illumination FC1602N01-FHYYBW-51SE

Fordata FC1602N01-FHYYBW-51SE is a premium LCD alphanumeric display module designed for various electronic and industrial applications. It features a 2 x 16 character matrix with 5 x 8 dots per character and LED backlighting that illuminates the display with yellow and green colors over a green background. This display offers excellent readability thanks to its transflective STN technology, consuming low power at 5 volts DC.

The module incorporates a built-in SPLC780D controller compatible with industry standards. Its monochrome passive-matrix design delivers superior contrast and wide viewing angles between 180° and 270°, outperforming conventional TN displays. The unit measures 80 mm in width, 36 mm in height, and has a slim depth of 10.1 mm, making it suitable for compact systems.

This LCD display is engineered to operate reliably in demanding environments with an operating temperature range of -20°C to +70°C. The characters measure 4.4 mm in height and 3 mm in width, ensuring clear information presentation for user interfaces, instrumentation, and display modules in fields such as industrial automation, instrumentation, and electronic communication devices.

It complies with RoHS standards, confirming its environmental safety and quality. Anti-static precautions should be observed to prevent damage during handling and installation. The display is manufactured in China and belongs to the Fordata FC series.

Features a 2 rows by 16 characters alphanumeric display matrix. Utilizes LED backlight with yellow and green illumination. Low power consumption with 5V operation and STN technology. Monochrome passive-matrix display with wide viewing angles up to 270°.

Includes a built-in SPLC780D controller or equivalent. Compact external dimensions of 80 mm x 36 mm x 10.1 mm. Operates from -20°C up to +70°C temperature range. Character size: 4.4 mm height, 3 mm width for excellent readability.

RoHS compliant, safe for industrial and commercial electronics use.

This Fordata FC1602N01-FHYYBW-51SE LCD alphanumeric display is ideal for industrial control panels, instrumentation equipment, electronic appliances, and other embedded systems requiring efficient and clear text display. Its robust construction and low power operation make it suitable for a wide range of commercial and industrial environments. Explore more LCD modules and electronic components in the Electronics Components category on EnvMart.
