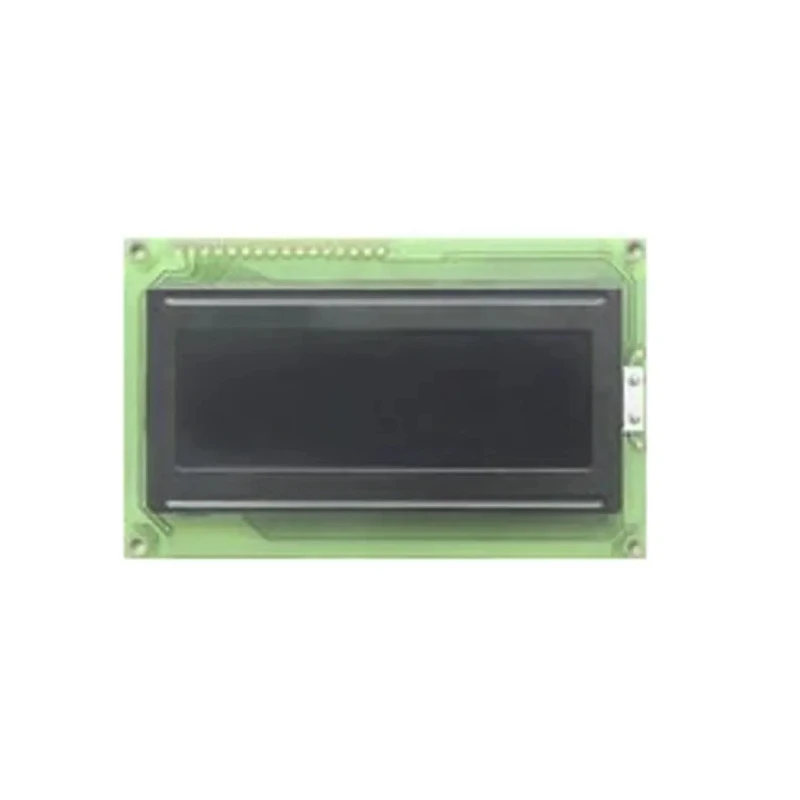

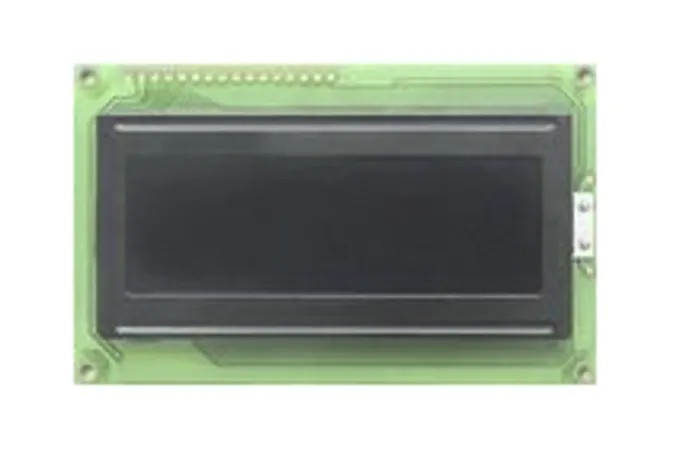

Fordata LCD Graphic Display 4 x 20 Characters Yellow Green Illumination FC2004B01-RNNYBW-66SE

Fordata FC2004B01-RNNYBW-66SE is a high-quality LCD Graphic Display designed for industrial and electronic applications requiring clear graphical output with yellow and green illumination. Featuring a 4 x 20 character matrix, this display module provides a viewing area of 76 x 25 mm, making it suitable for embedded systems and control panels.

The display measures 98 mm in width, 60 mm in height, and 9.5 mm in depth, offering a compact form factor suitable for various device enclosures. It operates reliably across a wide temperature range from -20°C to 70°C, allowing usage in challenging environmental conditions.

The module is equipped with a built-in SPLC780D or equivalent controller which simplifies integration with microprocessor units via 4-bit or 8-bit MPU interface and supports a 1/16 duty cycle for efficient display drive. The backlight illumination is provided in yellow and green colors, enhancing readability in different lighting conditions. The backlight can be driven through several pin configurations including PIN1, PIN2, PIN15, PIN16, or A, K, making it versatile for varied hardware designs.

Character dimensions are precisely 5.4 mm in height and 3 mm in width, ensuring text clarity on the display. This makes it ideal for industrial, laboratory equipment, embedded control systems, and other electronic devices requiring a robust and visible graphical interface.

The display is RoHS compliant, meeting environmental standards for safe operation. Manufactured in China, it represents a reliable solution for LCD monochrome graphic display needs in diverse industries.

This display features a 76 x 25 mm viewing area for clear graphical output. The external dimensions measure 98 mm width, 60 mm height, and 9.5 mm depth for compact integration. Operating temperature range is from -20°C to 70°C, suitable for various environments.

It includes a built-in SPLC780D or equivalent controller for seamless interfacing. Supports 1/16 duty cycle and 4-bit or 8-bit MPU interface options. Backlight can be driven via multiple pins including PIN1, PIN2, PIN15, PIN16, or A, K configurations.

The character height is 5.4 mm with a width of 3 mm, ensuring readable text display.
