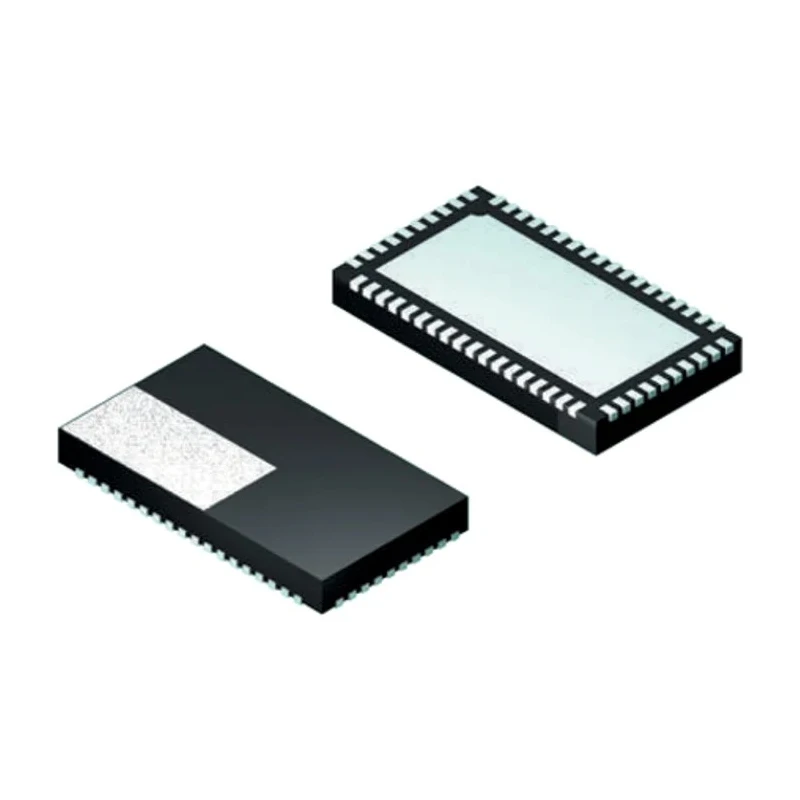

FTDI Chip Controller IC, 1-Channel USB 2.0 Interface, 30 Mbps, 1.8V-1.98V, 56-Pin VQFN Package FT2232H-56Q-TRAY

Free Delivery in India | Lowest Global Shipping Charges

FTDI Chip Controller IC, 1-Channel USB 2.0 Interface, 30 Mbps, 1.8V-1.98V, 56-Pin VQFN Package FT2232H-56Q-TRAY

Name: FTDI Chip Controller IC, 1-Channel USB 2.0 Interface, 30 Mbps, 1.8V-1.98V, 56-Pin VQFN Package FT2232H-56Q-TRAY
Brand: FTDI Chip
SKU: 139081
Price: 8.43 USD
Availability: InStock



Category USB Interface ICs Brand FTDI Chip Condition New

Specifications

Country of Origin	India
Brand	FTDI Chip
Height	900μm
Length	8mm
Model	FT2232H-56Q-TRAY
Mount Type	Surface
Series	FT2232H
Maximum Operating Temperature	85°C
Package Type	VQFN
Sub Type	Controller
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	56
Maximum Supply Voltage	1.98V
Minimum Supply Voltage	1.8V
Supply Current	70mA
Maximum Data Rate	30Mbps
Number of Transceivers	1
USB Specification	USB 2.0
Supported Protocols	USB 2.0

Key Features

Supports USB 2.0 protocol with a maximum data rate of 30 Mbps.
Operates within a voltage range of 1.8 V to 1.98 V for versatile power supply options.
Features robust ESD protection to ensure reliability in electronic applications.
Compact surface-mount VQFN package with 56 pins, suitable for space-constrained PCB designs.
Operating temperature range from -40°C to 85°C for industrial-grade performance.
Supply current of 70 mA, optimized for low power consumption.
Ideal for USB interface applications requiring efficient single-channel controller solutions.
Complies with RoHS standards, ensuring environmentally friendly manufacturing.

Product Description

FTDI Chip FT2232H-56Q-TRAY is a high-performance Controller IC designed for USB 2.0 single-channel interface applications, offering up to 30 Mbps maximum data rate. It operates with a minimum supply voltage of 1.8 V and a maximum of 1.98 V, making it suitable for low-voltage electronic circuits. This device features Electrostatic Discharge (ESD) protection that enhances durability in harsh environments.

The IC is provided in a compact 56-pin VQFN surface-mount package with dimensions of 8 mm length and a height of 900 µm, allowing integration into compact and high-density PCB layouts. It efficiently consumes 70 mA supply current and supports operating temperatures ranging from -40°C to 85°C, making it suitable for industrial and commercial electronics.

This controller IC is compliant with RoHS standards, ensuring lead-free and environmentally compliant manufacturing practices. The FT2232H series is a popular choice for embedded systems requiring USB 2.0 protocol compliance and reliable single-channel controller performance. Its versatility extends to numerous industrial, computing, and interface applications where reliable USB communication is critical.

Supports USB 2.0 standard with a robust data rate of 30 Mbps. Operates within voltage supply limits of 1.8 V to 1.98 V. Incorporates ESD protection for device safety and longevity. Compact 56-pin VQFN surface mount package minimizes PCB space usage.

Operational temperature range of -40°C to 85°C suitable for industrial environments. Low supply current consumption of 70 mA enhances energy efficiency. Meets RoHS environmental compliance standards.

This product is ideally suited for industrial machines, embedded computing devices, laboratory instrumentation, and communication interface applications. Explore more semiconductor products and advanced USB Interface ICs at EnvMart to meet your engineering and manufacturing needs.
