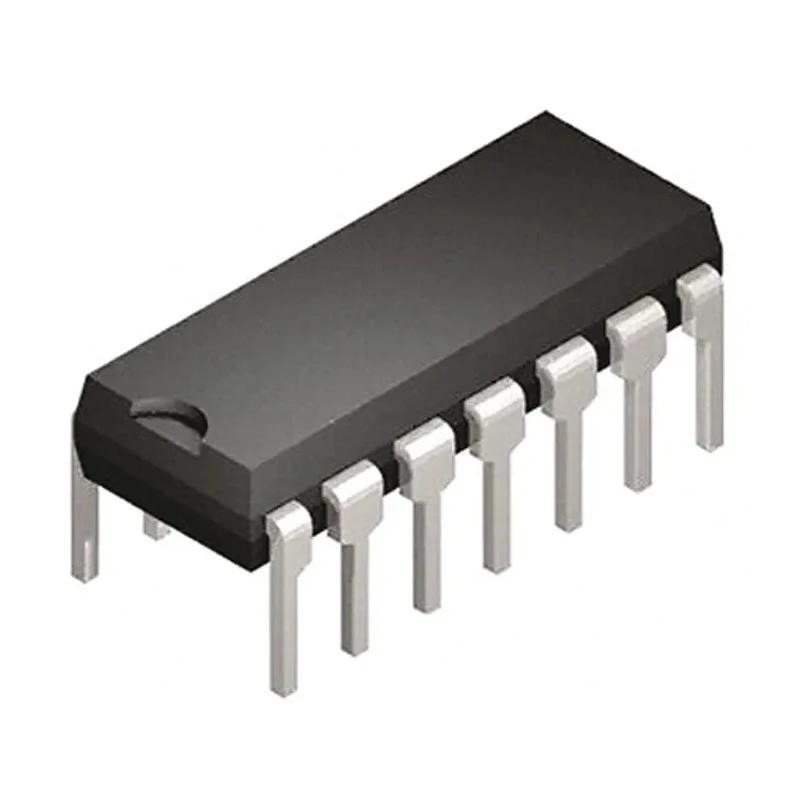

Microchip 1-Channel 12 Mbps USB 2.0 Transceiver IC 14-Pin PDIP MCP2221-I/P

Free Delivery in India | Lowest Global Shipping Charges

Microchip 1-Channel 12 Mbps USB 2.0 Transceiver IC 14-Pin PDIP MCP2221-I/P

Name: Microchip 1-Channel 12 Mbps USB 2.0 Transceiver IC 14-Pin PDIP MCP2221-I/P
Brand: Microchip
SKU: 379532
Price: 4.27 USD
Availability: InStock



Category USB Interface ICs Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	4.95mm
Length	19.69mm
Model	MCP2221-I/P
Mount Type	Through Hole
Series	MCP2221
Maximum Operating Temperature	85°C
Package Type	PDIP
Sub Type	Transceiver
Minimum Operating Temperature	-40°C
Pin Count	14
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	3V
Supply Current	10mA
Maximum Data Rate	12Mbps
Number of Transceivers	1
USB Specification	USB 2.0
Supported Protocols	USB 2.0

Key Features

Supports USB 2.0 protocol with a maximum data rate of 12 Mbps.
Operates from a supply voltage range of 3 V to 5.5 V.
Features robust ESD protection ensuring reliable device performance.
Mount type is through hole, suitable for various PCB assembly methods.
Designed with a compact 14-pin PDIP package for ease of integration.
Operates within temperature range of -40°C to 85°C for industrial applications.
Supply current of 10 mA making it energy efficient in embedded systems.
Part of the MCP2221 series engineered for serial I/O peripherals.

Product Description

Microchip MCP2221-I/P is a high-performance 1-channel USB 2.0 Transceiver IC capable of delivering data transfer rates up to 12 Mbps. Housed in a 14-pin PDIP through-hole package, this transceiver supports reliable USB 2.0 communication with supply voltage operating between 3 V and 5.5 V.

The device includes integrated ESD protection, enhancing durability and safeguarding against electrostatic discharge damage. Its supply current is only 10 mA, supporting low-power applications in embedded system designs.

Operating temperature ranges from -40°C to 85°C, making it suitable for industrial and commercial applications requiring robust temperature tolerance. The compact physical dimensions of 4.95 mm height and 19.69 mm length facilitate easy PCB mounting and integration.

MCP2221-I/P is widely used as an interface IC for serial I/O peripherals, enabling efficient USB connectivity in various electronic devices. The IC is not compliant with automotive standards but is optimized for general use in electronics, semiconductor, and interface IC applications.

Key features include its single transceiver channel, compatibility with USB 2.0, through-hole mount design, and proven reliability for industrial and commercial electronic components.

Supports USB 2.0 protocol with a maximum data rate of 12 Mbps. Operates from 3 V to 5.5 V supply voltage ensuring versatile use. Includes ESD protection for enhanced device longevity. Through-hole mounting in PDIP package for secure PCB installation.

Temperature operation range from -40°C to 85°C suitable for harsh environments. Low supply current of 10 mA reduces power consumption. Physical dimensions of 4.95 mm height and 19.69 mm length aid compact designs. Part of MCP2221 series designed for serial I/O peripheral interfacing.

Non-automotive standard compliant, intended for general electronic applications.

This Microchip USB Interface IC is ideal for a wide range of applications in electronic design, manufacturing, and embedded control systems where reliable USB interfacing is required. Explore more USB Interface ICs and semiconductor components on EnvMart for your project needs.
