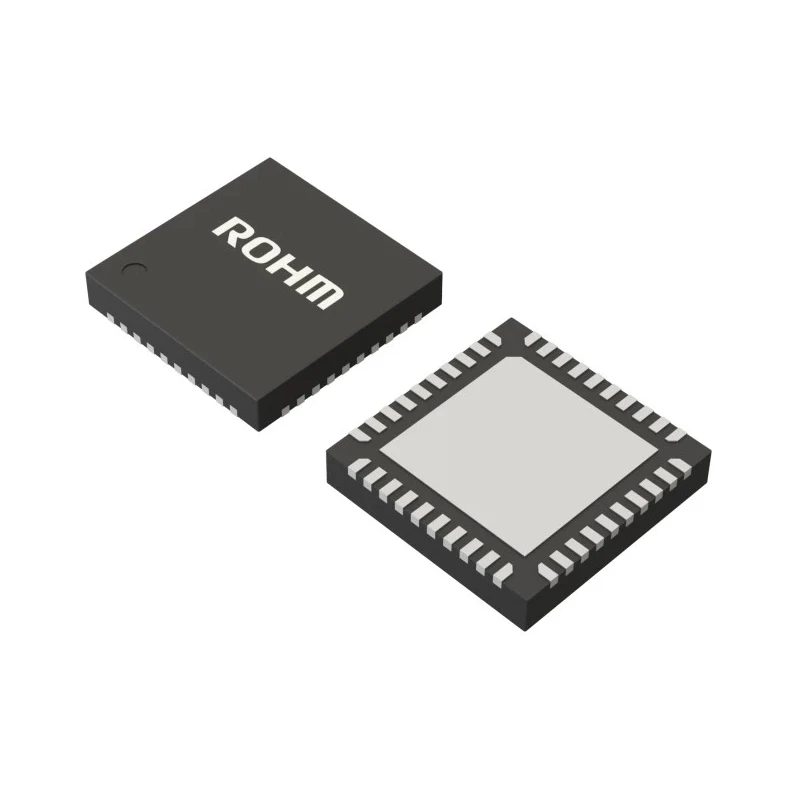

ROHM USB Controller 22V Power Supply USB Type C, UCSP50L2 Package BD93F10MWV-E2

ROHM BD93F10MWV-E2 USB Controller offers robust interface capabilities for USB Type C applications supporting up to 22V power supply. This semiconductor device integrates advanced features for USB Power Delivery (USB PD) specification version 3.0 compatibility and USB Type-C specification version 1.3. It includes a 32-bit ARM Cortex-M0 processor embedded in the chip, allowing efficient base-band communication for USB PD control and host interface support via I²C.

The device integrates a VBUS N-channel MOSFET switch gate driver and a VBUS discharge switch for effective power management and control. With protection voltage for CC pins rated at 28V, it ensures reliability and safety during operation. The controller supports dead battery operation, enhancing functionality in various embedded systems.

Its compact UCSP50L2 package and PCB mount type make it suitable for dense circuit board layouts in industrial and commercial electronics. The ROHM BD93F10MWV-E2 is RoHS compliant and adheres to the IEC 61000-4-2 electrostatic discharge standards, as well as the automotive AEC-Q101 qualification, qualifying it for automotive applications.

The controller is designed to operate within a wide temperature range of -55°C to 150°C and has minute footprint dimensions with 2.63mm length and width, complemented by a height of 570 micrometers, suitable for space-constrained designs.

Supports USB PD base-band communication and USB Type C protocol compatibility. Embedded 32Bit ARM Cortex-M0 processor for on-chip control logic. Integrated VBUS MOSFET gate driver and discharge switch enhance power management.

High voltage protection on CC pins up to 28V ensures safety. Dead battery operation supported to maintain device function. I²C interface facilitates communication with host controllers or SoC. Small and efficient UCSP50L2 package optimal for PCB mounting.

Meets rigorous RoHS, IEC 61000-4-2, and automotive AEC-Q101 standards. Wide operating temperature range from -55°C to 150°C. Compact device size of 2.63mm x 2.63mm x 570μm dimensions.

This USB controller unit is ideal for industrial electronics, embedded computing systems, automotive electronics, and electronic manufacturing requiring compliant and reliable USB power and data interface control. It enables high performance in modern USB PD applications, contributing to improved power efficiency and communication reliability.
