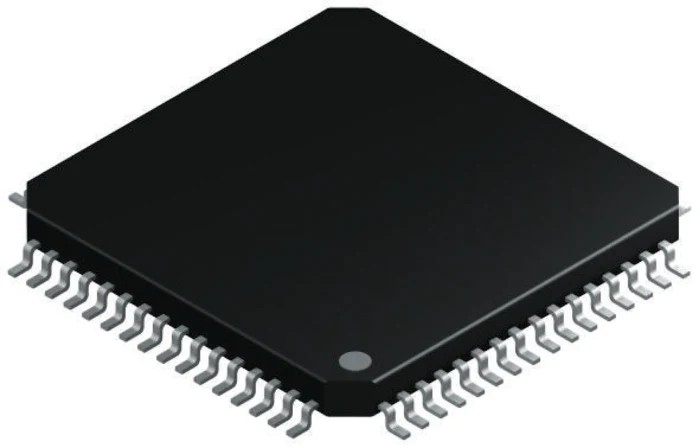

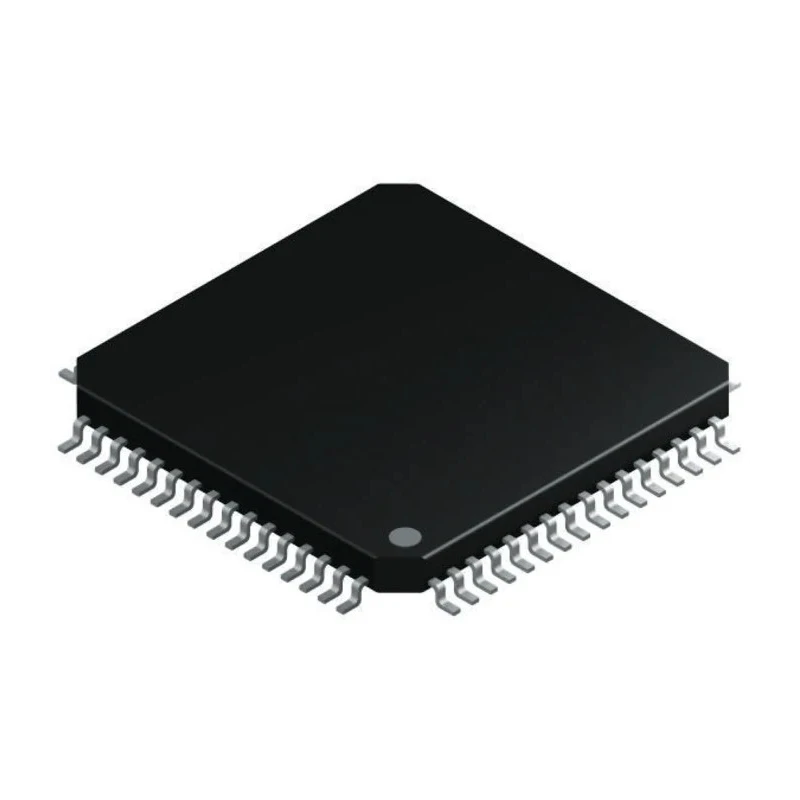

Microchip Controller IC USB2504-JT 3-Channel 480 Mbps 3.6V Dual Supply USB 2.0 64-Pin TQFP

Microchip USB2504-JT Controller IC is a high-speed 3-channel interface component designed for USB 2.0 applications, capable of handling data rates up to 480 Mbps. It operates on dual voltage supplies from 1.71V minimum to 3.6V maximum, facilitating compatibility with a range of power systems. The IC is housed in a 64-pin Thin Quad Flat Package (TQFP), measuring 1.45 mm in height and 10.2 mm in length, optimized for surface mount technology (SMT) on printed circuit boards.

This controller IC supports USB 2.0 protocol standards and includes three transceivers, making it suitable for advanced embedded systems requiring multiple USB channels. It operates reliably within an industrial temperature range from 0°C to 70°C, ensuring stable performance in common commercial environments.

While the device does not include built-in ESD protection, it is engineered for insertion in environments with controlled handling to prevent electrostatic damage. The product is ideal for a variety of industrial, electronic manufacturing, and computing applications where high-speed USB interface management is critical.

Its compact size and surface mount design facilitate seamless integration into modern electronic devices, including industrial controllers, embedded communication units, and USB hubs. The USB2504 series by Microchip is known for robust performance and ease of design integration.

Applications include industrial control systems, USB peripheral devices, data acquisition, and communication modules where reliable and efficient USB interface capabilities are essential. It maximizes data throughput while maintaining low power consumption and high signal integrity.

Supports USB 2.0 protocol with three transceivers for versatile interface control. Operates with dual voltage supplies including 3.3V for flexible power options. Designed for surface mount with a compact 64-pin TQFP package for efficient PCB integration.

Functions reliably within an operating temperature range of 0°C to 70°C for standard environments. Features no ESD protection, suitable for controlled assembly environments. Physical dimensions include a height of 1.45mm and length of 10.2mm, enabling compact device design.

Ideal for applications requiring serial I/O peripherals and USB interface control in embedded electronics. Supplies stable operation under a maximum supply voltage of 3.6V and a minimum of 1.71V. Explore more from our semiconductor controller IC category for advanced industrial and electronic solutions.

Explore more products in our USB Interface ICs category.
