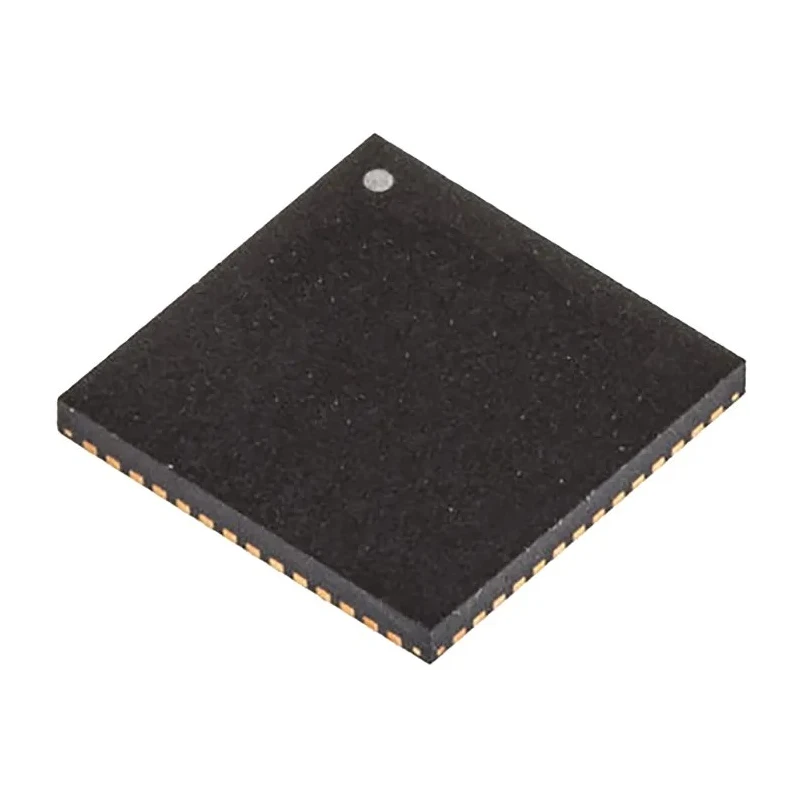

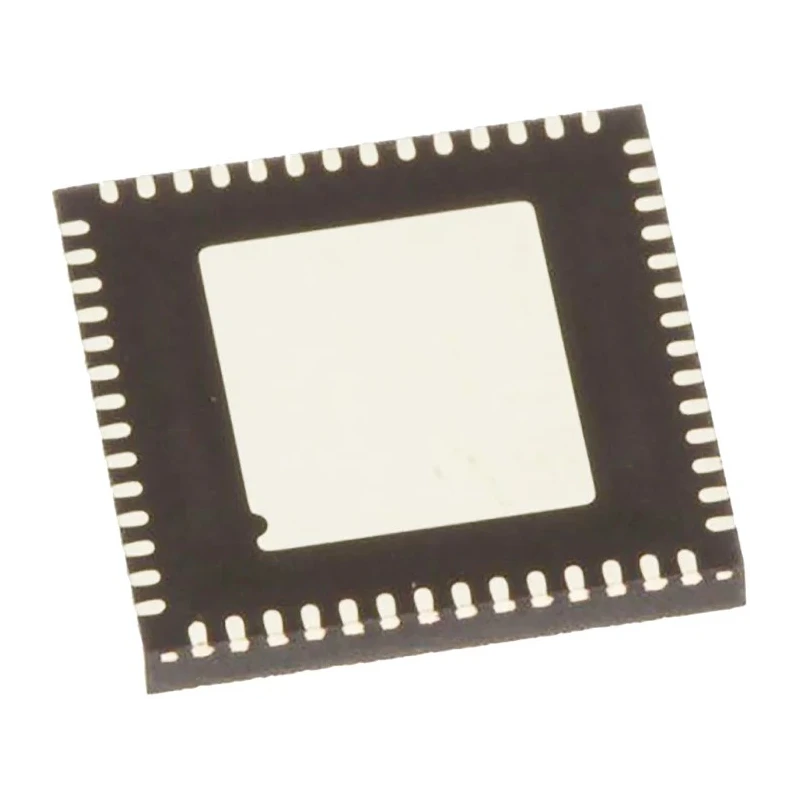

Microchip Controller IC 56-Pin QFN 3.3 V 100 Mbps USB Full Duplex/Half Duplex LAN9730I-ABZJ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 8mm |
| Model | LAN9730I-ABZJ |
| Width | 8mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Communication Mode | Full Duplex/Half Duplex |
| Interface Type | USB |
| Pin Count | 56 |
| Maximum Supply Voltage | 3.3V |
| Supply Current | 30mA |
| Maximum Data Rate | 100Mbps |
| Loopback Mode | Internal |
| Standard Supported | IEEE 802.3u, IEEE 802.3 |
Key Features
- Operates at 3.3 V maximum supply voltage with 30 mA supply current.
- Supports IEEE 802.3u and IEEE 802.3 Ethernet communication standards.
- Provides full duplex and half duplex communication modes.
- Includes internal loopback mode for system diagnostics and testing.
- Compact 56-pin QFN surface mount package measuring 8 mm x 8 mm x 1 mm.
- Wide operating temperature range from -40°C to 85°C for industrial use.
- Enables 100 Mbps maximum data transfer rate over USB interface.
- Designed for embedded networking and USB to Ethernet controller applications.
Product Description
Microchip LAN9730I-ABZJ is a 56-pin QFN package controller IC designed for USB to 10/100 Ethernet applications. Operating at 3.3 V, it supports full duplex and half duplex communication modes with a data rate up to 100 Mbps, making it suitable for embedded networking solutions requiring reliable high-speed connections.
This controller IC supports IEEE 802.3u and IEEE 802.3 Ethernet standards, ensuring compatibility with standard network protocols. Featuring an internal loopback mode facilitates diagnostics and system testing, enhancing development and troubleshooting processes.
Compact surface mount packaging with dimensions 8 mm length, 8 mm width, and 1 mm height allows for space-efficient PCB designs. The device operates over a wide temperature range (-40°C to 85°C), making it suitable for industrial and commercial environments.
It draws a supply current of 30 mA at 3.3 V, optimized for low power consumption in embedded systems. The 56-pin configuration provides ample connectivity for complex interfacing requirements.
This Ethernet controller IC is widely used in industrial networking, communication equipment, and embedded devices requiring USB connectivity to Ethernet networks for data transfer and communication tasks.
Operates on 3.3 V supply voltage with 30 mA current consumption. Supports 100 Mbps maximum data rate with full and half duplex communication. Employs IEEE compliant Ethernet standards 802.3u and 802.3. Internal loopback mode for convenient system testing.
56-pin QFN surface mount package with compact dimensions. Wide operating temperature range from -40°C to 85°C. Explore the range of Microchip semiconductor products for advanced embedded and networking solutions available on EnvMart.
Explore more products in our USB Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model enables a maximum data transfer rate of 100 Mbps over the USB interface.
It supports both full duplex and half duplex communication modes, providing flexibility for various networking applications.
It operates at a maximum supply voltage of 3.3 V and draws a supply current of 30 mA.
The compact 56-pin QFN package measures 8 mm x 8 mm x 1 mm, making it suitable for space-efficient PCB designs.
It has a wide operating temperature range from -40°C to 85°C, suitable for industrial applications.
It supports the IEEE 802.3u and IEEE 802.3 Ethernet communication standards, ensuring compatibility with standard network protocols.
Yes, it includes an internal loopback mode for system diagnostics and testing, enhancing development and troubleshooting processes.
This model is designed for surface mount applications, facilitating easy integration into PCB layouts.
It features a pin count of 56, providing ample connectivity for complex interfacing requirements.
It is widely used in industrial networking, communication equipment, and embedded devices requiring USB connectivity to Ethernet networks.
The internal loopback mode allows for convenient testing and diagnostics of the system, improving reliability during development.
The country of origin for this controller IC is India.
