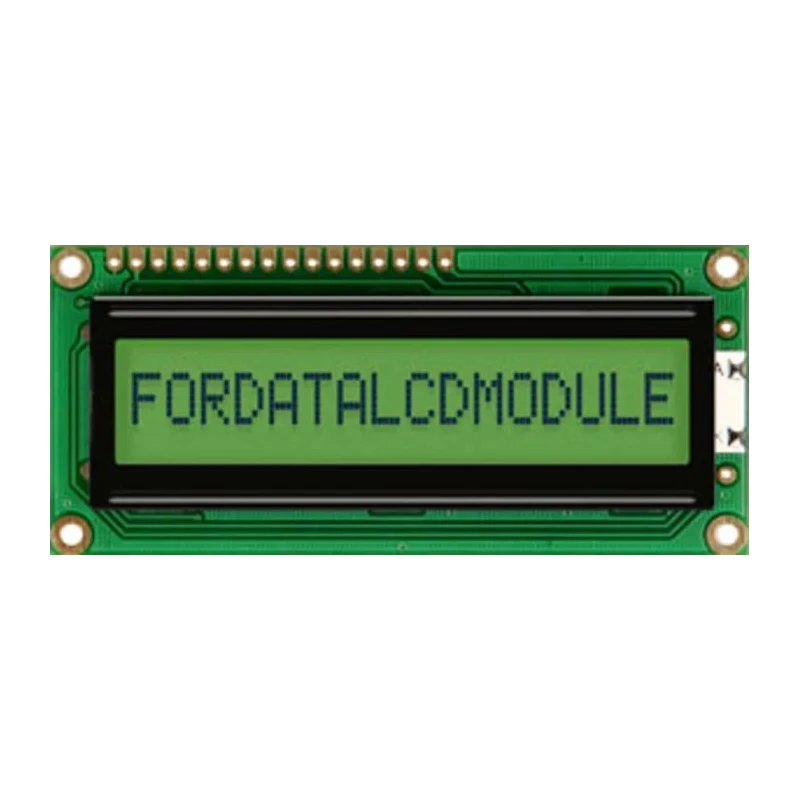

Fordata LCD Graphic Display Green Yellow on 1 Row By 16 Characters China FC1601E01-RNNYBW-66SE

Fordata FC1601E01-RNNYBW-66SE LCD Graphic Display is a robust and efficient display unit offering green illumination with yellow on text. This high-quality graphic display is designed to show 1 row of 16 characters, ideal for compact and precise visual output in electronic applications.

The LCD display features a 5x8 dot matrix with cursor capability and incorporates a built-in controller (SPLC780D or equivalent) enabling seamless integration with various systems. Power is supplied at +5.0V, though alternative versions supporting +3.0V are also available.

The viewing area of 65 x 14 mm with character height of 6.6 mm and width of 3.1 mm ensures that characters are sharp and legible. Its external dimensions are 80 mm in width, 36 mm in height, and 9.5 mm in depth, making it compact enough for multiple industrial, laboratory, and manufacturing control panel applications.

Operating over a temperature range of -20°C to 70°C, this display is suited for challenging environments encountered in industrial automation, electronic control systems, and instrumentation.

The display operates with a 1/16 duty cycle and supports both 4-bit and 8-bit MPU interfaces for versatile use. The backlight can be driven via multiple pins (PIN1, PIN2, PIN15, PIN16, or A and K), allowing flexible illumination control in different system configurations.

Compliant with RoHS, this product aligns with environmental regulations promoting safe usage and disposal of electronic components. Manufactured in China, it is a reliable solution for applications requiring clear and efficient visual display capabilities.

This display module is commonly used in industrial monitoring systems, process control panels, laboratory instruments, and other electronic devices requiring a clear LCD graphic interface. Its combination of compact size, robust design, and color illumination enhances functionality and improves user interaction.

Explore our catalog for a comprehensive range of display modules and related electronic components to support your technical and commercial needs. The display type is liquid crystal (LCD) for efficient graphic representation.

The character matrix consists of 1 row by 16 characters, providing clear character display. The viewing area measures 65 x 14 mm with character height of 6.6 mm and width of 3.1 mm. Operating temperature range is from -20°C to 70°C suitable for varied environments.

External dimensions include width 80 mm, height 36 mm, and depth 9.5 mm. The display uses a 5x8 dot matrix with cursor and built-in SPLC780D controller or equivalent. It supports a +5.0V power supply and supports 1/16 duty cycle with 4-bit or 8-bit MPU interface.

Backlight can be driven by pins 1, 2, 15, 16 or A, K for flexible illumination control. The product complies with RoHS standards ensuring environmental safety. Browse more in our LCD Graphic Display range for industry-grade reliable products.
