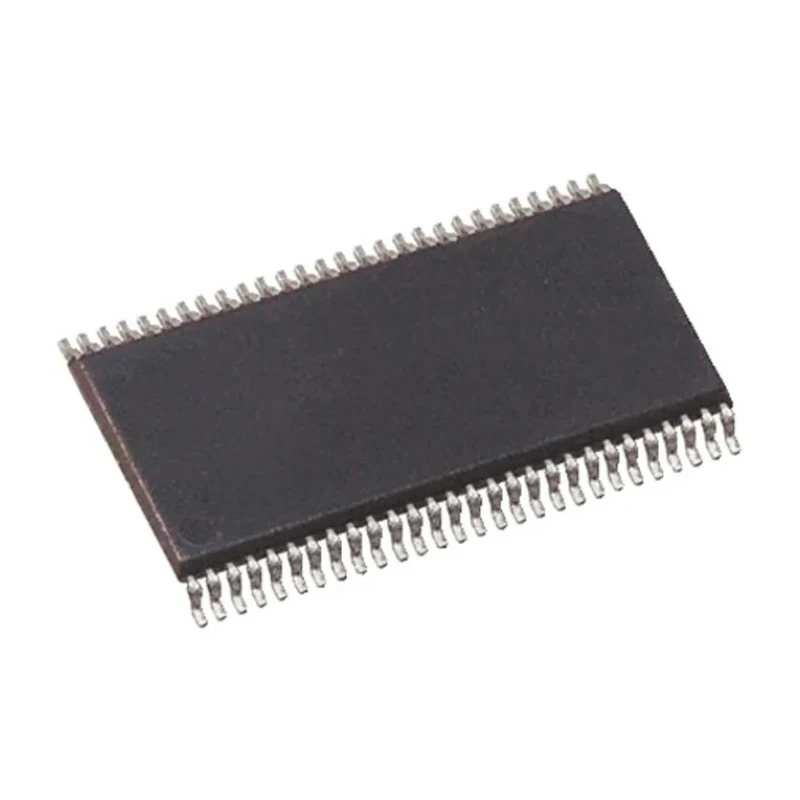

onsemi Serdes IC 28 Drivers LVTTL Input 28 Receivers LVDS Output Transmission Data Rate 2.38Gbps 56-Pin TSSOP FIN3386MTDX
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1mm |
| Length | 14mm |
| Model | FIN3386MTDX |
| Mount Type | Surface |
| Output type | LVDS |
| Series | FIN3386 |
| Input Type | LVTTL |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Sub Type | Serdes |
| Minimum Operating Temperature | -40°C |
| Pin Count | 56 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 28 |
| Number of Receivers | 28 |
| Transmission Data Rate | 2.38Gbps |
| Differential Input High Threshold Voltage | 100mV |
| Differential Input Low Threshold Voltage | -100mV |
Key Features
- The device supports low voltage differential signaling (LVDS) for high-speed communications.
- Operates with a supply voltage range of 3V to 3.6V ensuring compatibility with standard logic levels.
- Features 28 drivers and 28 receivers for balanced data transfer.
- Compact surface mount package type TSSOP with 56 pins for PCB space efficiency.
- Built-in ESD protection for enhanced device reliability and durability.
- Designed to operate reliably within temperature range of -40°C to 85°C.
- Minimum device height of 1mm and length of 14mm for compact electronic designs.
- Suitable for industrial and consumer applications requiring fast serial data communications.
Product Description
onsemi FIN3386MTDX is a state-of-the-art Serdes IC featuring 28 LVTTL input drivers and 28 LVDS output receivers in a compact 56-Pin TSSOP surface mount package. It supports high-speed data transmission at 2.38Gbps, ideal for modern electronic communication interfaces.
Low Voltage Differential Signaling (LVDS) technology enables this IC to efficiently transmit data at high speeds over low-cost twisted-pair copper cables, enhancing signal integrity and reducing power consumption. It is designed for seamless integration into applications such as Firewire, SATA, and SCSI interfaces commonly used in industrial, computing, and consumer electronics.
The product operates over a wide supply voltage range from 3V up to 3.6V, and supports a robust operating temperature range from -40°C to 85°C, making it suitable for harsh environments. The device includes built-in ESD protection to safeguard against electrostatic discharge events, enhancing long-term reliability.
The TSSOP package features 56 pins with dimensions of 1mm height and 14mm length, providing a space-saving layout for densely packed circuit boards. This surface-mounted device is well-suited for industrial, laboratory, manufacturing, and electronics applications where reliable high-speed serial data transmission is critical.
The device supports low voltage differential signaling (LVDS) for high-speed data communications. Operates with supply voltages between 3V and 3.6V. Includes 28 LVTTL drivers and 28 LVDS receivers. Compact TSSOP 56-pin surface mount package.
ESD protection built-in for device robustness. Operating temperature range from -40°C to 85°C. Physical dimensions: 1mm height by 14mm length. Applications include Firewire, SATA, and SCSI data interfaces.
onsemi branded semiconductors provide reliable and advanced interface IC solutions for modern electronic designs. Explore more semiconductor products and Interface ICs on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FIN3386MTDX supports a transmission data rate of 2.38Gbps.
This model operates with a supply voltage range of 3V to 3.6V.
It features 28 LVTTL input drivers and 28 LVDS output receivers.
The operating temperature range is from -40°C to 85°C.
This model has a height of 1mm and a length of 14mm.
It comes in a compact TSSOP package with 56 pins.
It supports low voltage differential signaling (LVDS) for high-speed communications.
Yes, the FIN3386MTDX includes built-in ESD protection to enhance reliability.
It is suitable for applications such as Firewire, SATA, and SCSI interfaces.
The drivers use LVTTL input type.
This model contains 4 elements per chip.
The country of origin for this device is India.
