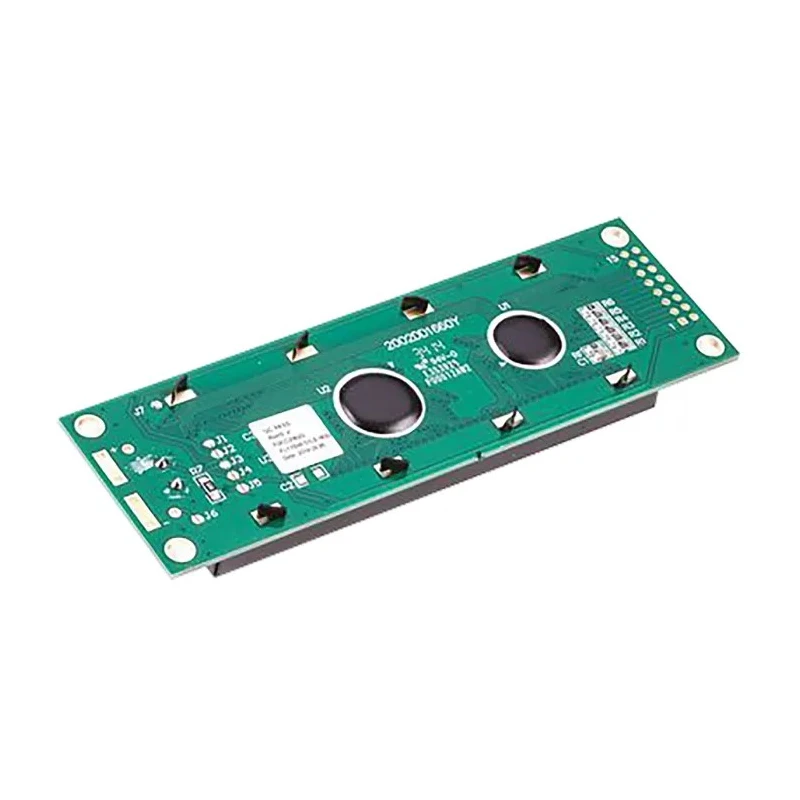

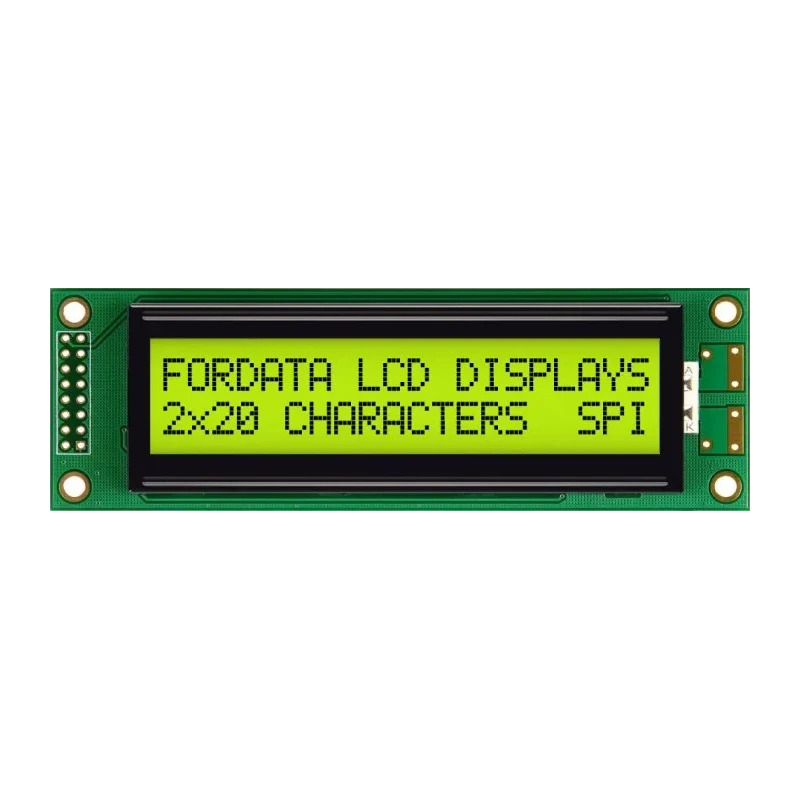

Fordata LED LCD Alphanumeric Display 2 x 20 Characters Green Yellow Backlight FC2002D01-FHYYBW-51SE

Free Delivery in India | Lowest Global Shipping Charges

Fordata LED LCD Alphanumeric Display 2 x 20 Characters Green Yellow Backlight FC2002D01-FHYYBW-51SE

Name: Fordata LED LCD Alphanumeric Display 2 x 20 Characters Green Yellow Backlight FC2002D01-FHYYBW-51SE
Brand: Fordata
SKU: 197787
Price: 35.49 USD
Availability: InStock



Category Display Module Brand Fordata Condition New

Specifications

Country of Origin	China
Display Type	Alphanumeric
Brand	Fordata
Model	FC2002D01-FHYYBW-51SE
Series	FC
Character height	6mm
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-20°C
External Width	116mm
External Depth	10.9mm
External Height	37mm
Interface Type	4 Bit
Standards/Approvals	RoHS
Character Width	3.2mm
Illumination Colour	Green, Yellow
Viewing Area Dimensions	83 x 19 mm
Backlight Type	LED
Character Matrix	2 x 20
Ampire AM-19201080KTZQW-H0H TFT LCD Module, 11.6in, 1920 x 1080pixelsBrand	Ampire

Key Features

The display uses a 4-bit interface for communication and operates on a 5 V power supply.
It has compact external dimensions of 116 mm width, 37 mm height, and 10.9 mm depth.
The display offers a viewing area of 83 x 19 mm with character height of 6 mm and width of 3.2 mm.
It supports a wide operating temperature range from -20°C to 70°C for various industrial environments.
Constructed using transflective STN technology, the display ensures power efficiency and clear readability.
The LED backlight provides bright illumination with green and yellow colors on a green background.
This RoHS-compliant monochrome passive-matrix display includes a built-in controller and 1/16 duty cycle.
Suitable for industrial, electronic equipment, and instrumentation applications requiring clear text displays.

Product Description

Fordata FC2002D01-FHYYBW-51SE is a high-quality LED LCD Alphanumeric Display designed with a 2 x 20 character matrix and a transflective STN LCD panel. This monochrome display module features LED backlighting in green and yellow colors, providing clear and vibrant text visibility on a green background with yellow illumination.

The display module measures 116 mm in width, 37 mm in height, and 10.9 mm in depth, with an active viewing area of 83 x 19 mm. Characters are 6 mm high and 3.2 mm wide, making it suitable for a variety of text display needs. It operates using a 4-bit interface and requires a 5 V power supply with a 1/16 duty cycle.

This display operates efficiently within an ambient temperature range of -20°C to 70°C, making it ideal for use in industrial automation systems, electronic instruments, and other commercial electronics applications where reliability under variable conditions is critical.

The transflective STN technology offers improved power consumption over traditional TN displays, supporting a wide viewing angle from 180° to 270°. The module comes with a built-in controller ensuring ease of integration and operation.

2 x 20 character alphanumeric display with LED backlight. Transflective STN LCD technology for power efficiency and readability. Compact dimensions suitable for embedded applications. Wide operating temperature range for industrial use.

RoHS-compliant and manufactured to meet environmental standards. Built-in controller and 1/16 duty cycle for efficient operation. Illumination colors: green and yellow on green background. Ideal for electronic components, industrial displays, and instrumentation.

This display module is a reliable solution for electronic design engineers and product developers seeking a versatile alphanumeric display with distinct illumination and robust operating parameters. Explore more LCD monochrome displays and other Display Modules to suit diverse electronic product requirements.
