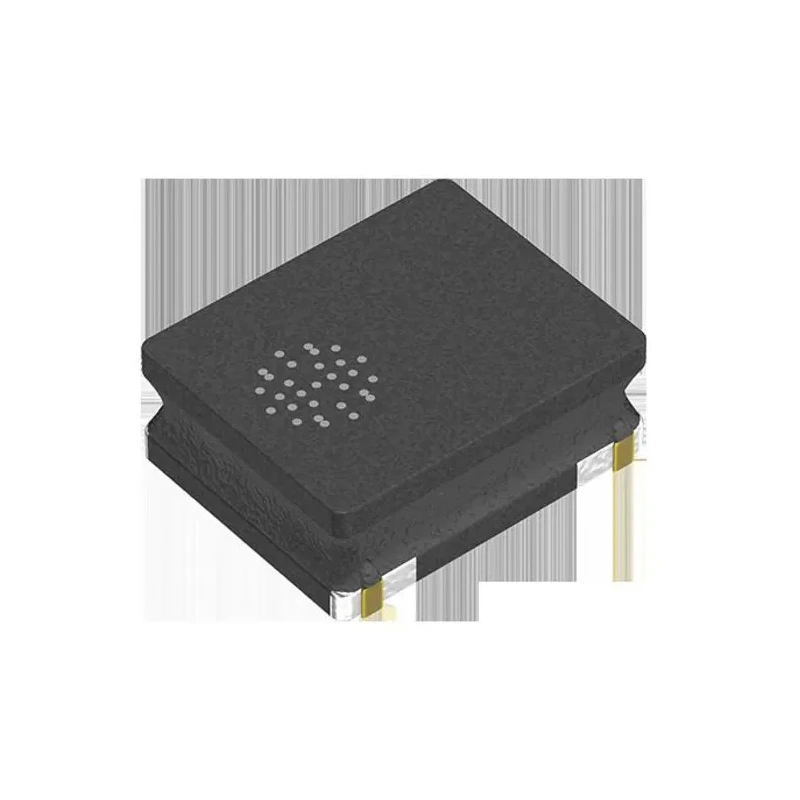

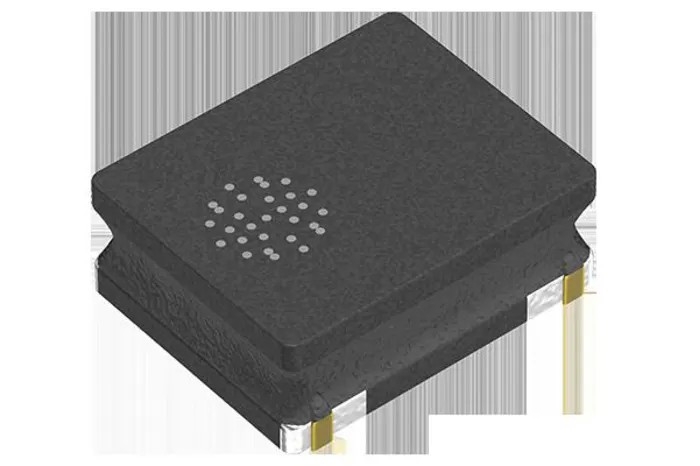

TDK Shielded Wirewound Surface Mount Inductor with Metal Core, 2.2 μH ±20% 1.76 A, 252010 Package VLS252010HBX-2R2M-1

Free Delivery in India | Lowest Global Shipping Charges

TDK Shielded Wirewound Surface Mount Inductor with Metal Core, 2.2 μH ±20% 1.76 A, 252010 Package VLS252010HBX-2R2M-1



Category Surface Mount Inductors Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	1mm
Length	2.5mm
Model	VLS252010HBX-2R2M-1
Depth	2mm
Series	VLS-HBX-1
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Core Material	Metal
Inductance	2.2μH
Standards/Approvals	Halogen Free, SVHC-free, RoHS, REACH, Lead Free
Package/Case	252010
Maximum DC Current	1.76A
Maximum DC Resistance	120mΩ
Inductance Tolerance	±20 %
Termination Style	Surface Mount
Inductor Construction	Wirewound
Application guides	Smart phones/tablets

Key Features

Magnetic shielded construction using metallic magnetic material.
2.2 μH inductance with ±20% tolerance for precise circuit design.
Maximum DC current handling of 1.76 A ensures robust power management.
Low DC resistance of 120 mΩ optimizes energy efficiency.
Ultra-compact 252010 package suitable for high-density mounting.
Wide operating temperature range from -40°C to 105°C.
Halogen-free and RoHS compliant for environmentally safe designs.
Wirewound surface mount termination for reliable PCB integration.

Product Description

TDK VLS252010HBX-2R2M-1 is a shielded wirewound surface mount inductor engineered for power circuits requiring stable magnetic performance and compact size. This component utilizes a metallic magnetic material for its core, delivering high magnetic shielding essential for minimizing electromagnetic interference and supporting efficient energy transfer.

With an inductance of 2.2 μH and a tolerance of ±20%, this inductor is suited for applications demanding precise inductive values, such as advanced power management in smart devices, HDDs, SSDs, and compact supply modules. Its maximum rated DC current of 1.76 A ensures robust handling of power loads while maintaining low DC resistance at 120 mΩ, optimizing energy efficiency and reducing unwanted losses during operation.

The standard 252010 SMT package measures 2.5 mm in length, 2 mm in depth, and 1 mm in height. This ultra-compact size enables high-density mounting, catering to modern requirements for miniaturization without sacrificing performance. Shielding is achieved through high magnetic shield construction, making this part compatible with circuit layouts that prioritize low interference and reliable function.

Operating temperature ranges from -40°C to 105°C, allowing the inductor to function reliably across a broad spectrum of industrial, commercial, and consumer electronics environments. Compliance with halogen-free, SVHC-free, RoHS, REACH, and lead-free standards supports regulated manufacturing and eco-friendly product development.

Wirewound construction ensures optimal inductive characteristics and durability. Surface mount termination and precision packaging make it ideal for integration onto PCBs in high-density designs for mobile devices, display panels, portable game units, and advanced power modules.

Primary industrial and laboratory applications include energy storage, filtering, and reduction of electromagnetic interference in power conversion, signal conditioning, and voltage regulation circuits. Commercial use cases span smart phones, tablets, HDDs, SSDs, display modules, and other compact electronics.

Explore more in Surface Mount Inductors and related TDK products for tailored solutions in high-efficiency circuit designs.
