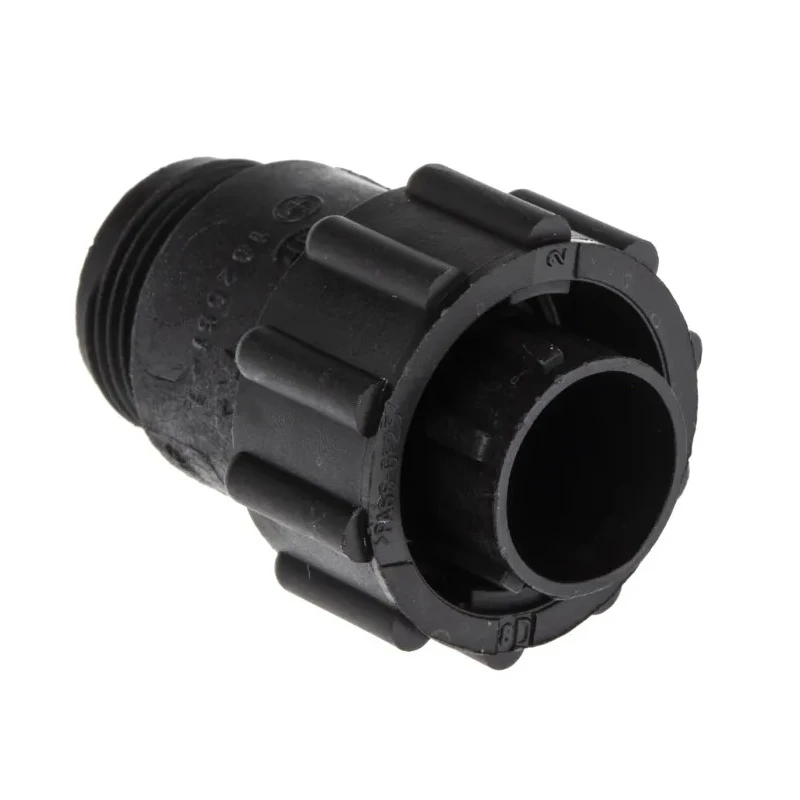

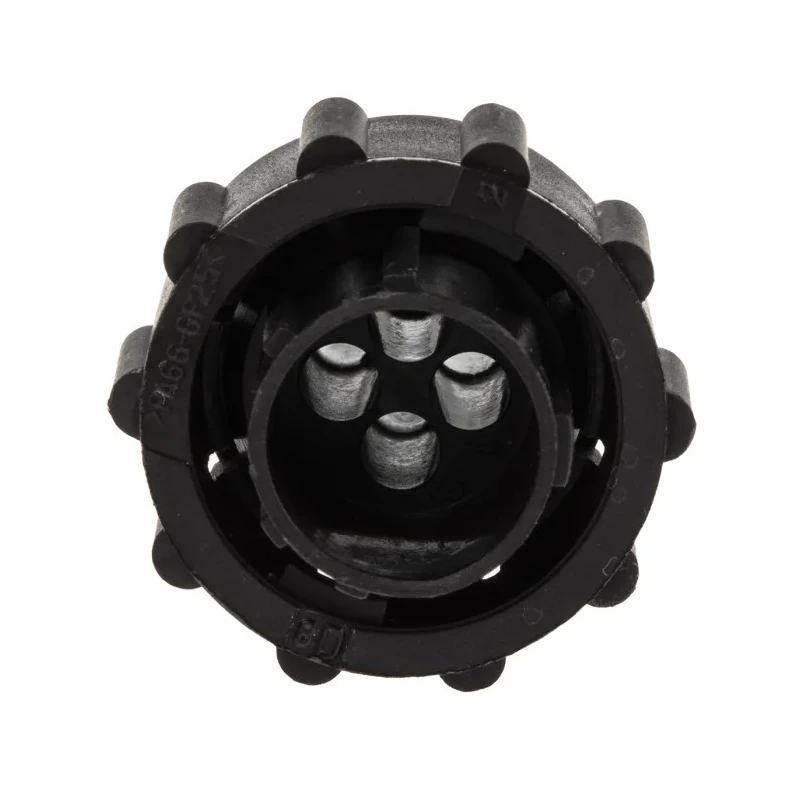

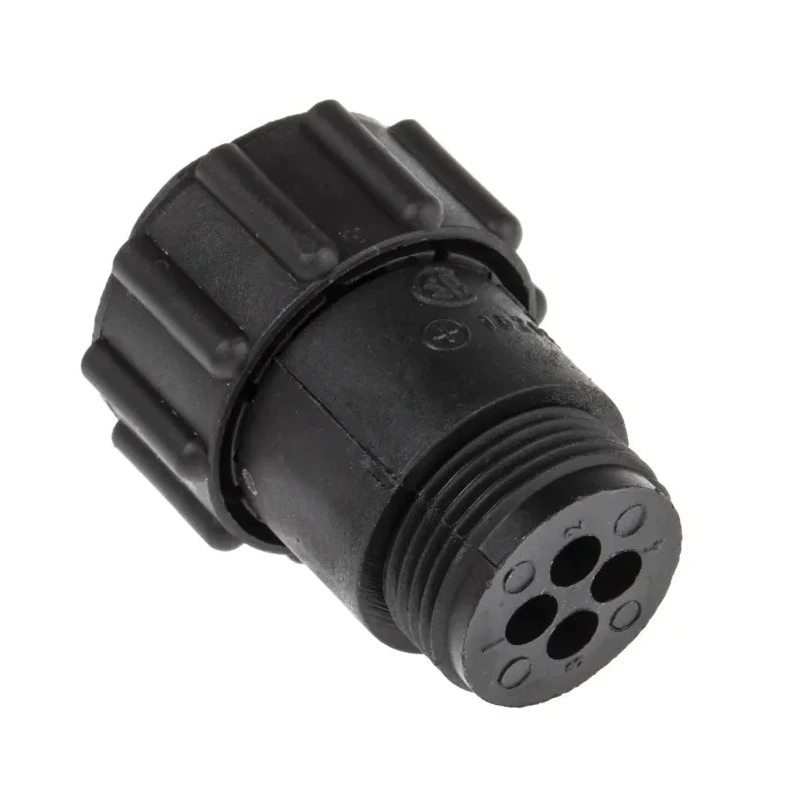

TE Connectivity Circular Connector 4 Contacts In-Line Standard Connector Plug Male 600V 13A Thermoplastic Housing 182651-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Circular Connector 4 Contacts In-Line Standard Connector Plug Male 600V 13A Thermoplastic Housing 182651-1

Name: TE Connectivity Circular Connector 4 Contacts In-Line Standard Connector Plug Male 600V 13A Thermoplastic Housing 182651-1
Brand: TE Connectivity
SKU: 144495
Price: 6.97 USD
Availability: InStock



Category Circular Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	Italy
Voltage	600V
Brand	TE Connectivity
Orientation	Straight
Current	13A
Model	182651-1
Mount Type	In-Line
Housing Material	Thermoplastic
Contact Material	Beryllium Copper Alloy
Series	CPC
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Standards/Approvals	CSA, RoHS, UL 94V-0
Contact Plating	Nickel
Number of Contacts	4
Contact Gender	Male
Shell Size	11
Mating Type	Threaded
Connector Size	Standard
Plug/Socket	Plug

Key Features

Designed with 4 contacts providing a current rating of 13A for effective power transmission.
Constructed with thermoplastic housing with UL 94V-0 rating for heat resistance and safety.
Features a straight, in-line mount type with a threaded mating connection for secure attachment.
Contact materials include beryllium copper alloy with nickel plating for durability and corrosion resistance.
Operates within a wide temperature range from -55°C to 105°C to withstand harsh environments.
Complies with CSA, RoHS, and UL standards ensuring quality and environmental safety.
Socket type is plug with male contact gender suitable for cable mount applications.
Shell size 11 and standard connector size designed for industrial and transportation systems.

Product Description

TE Connectivity 182651-1 Circular Connector is a robust industrial-grade electrical connector designed for demanding industrial, process control, transportation, and automation applications. This 4-contact, in-line standard connector plug with male contacts supports up to 13A current and 600V voltage, providing reliable power and signal transfer in harsh environments.

The connector housing is made from UL 94V-0 rated thermoplastic, ensuring excellent resistance to heat, vibration, and shock. The contacts are crafted from a beryllium copper alloy with a nickel plating to enhance durability and corrosion resistance. The design includes a threaded mating mechanism with a knurled coupling ring to prevent accidental disengagement and guarantee secure connections in critical systems.

Operating across a temperature range from -55°C to 105°C, this CPC series connector supports rapid field assembly and repair through crimp termination contacts that can be easily replaced if damaged, minimizing downtime in industrial setups.

Applications for this connector include rail and transit vehicles, lighting and signage systems, HVAC and building equipment, motor vehicles including buses and off-road vehicles, agricultural machinery, industrial automation, instrumentation, and testing equipment.

4 contacts with 13A current rating for efficient electrical performance. Thermoplastic housing with heat resistant UL 94V-0 rating for harsh conditions. Threaded mating type and straight orientation with male plug contact for secure fittings.

Contact materials ensure long-lasting resistance to corrosion and wear. Wide operating temperature range supports diverse industrial environments. Compliant with CSA, RoHS, and UL safety standards for reliable quality. Supports quick connect/disconnect and field serviceable crimp contacts.

Ideal for applications in industrial, transportation, automation, and HVAC sectors.

Manufactured in Italy, the TE Connectivity 182651-1 connector combines cutting-edge engineering with field-ready ruggedness, making it a dependable choice for demanding industrial Circular Connector needs. Browse EnvMart's full category to find complementary connectors and accessories designed for high-performance industrial environments.
