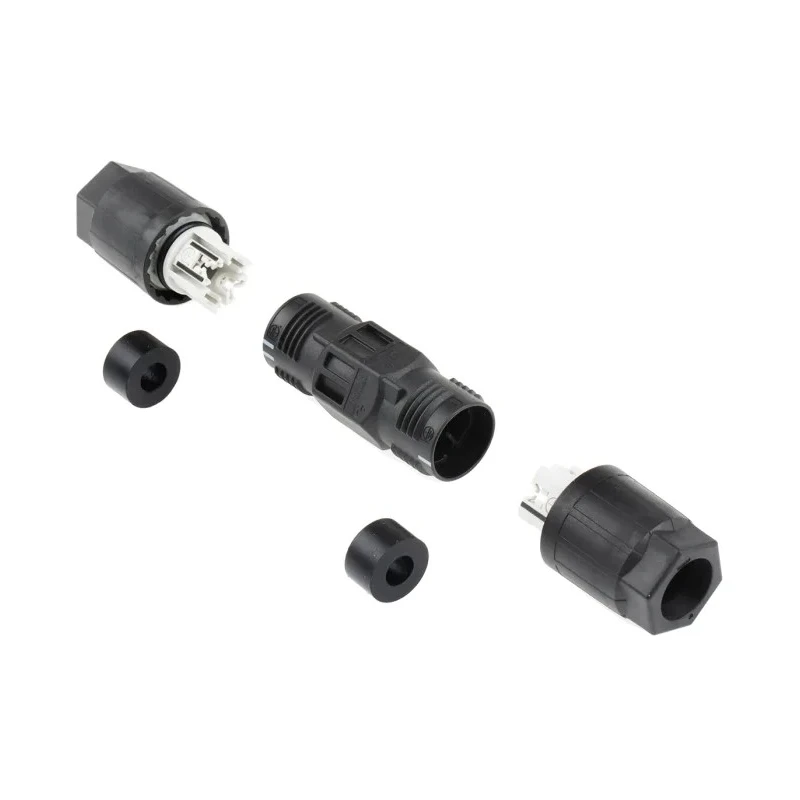

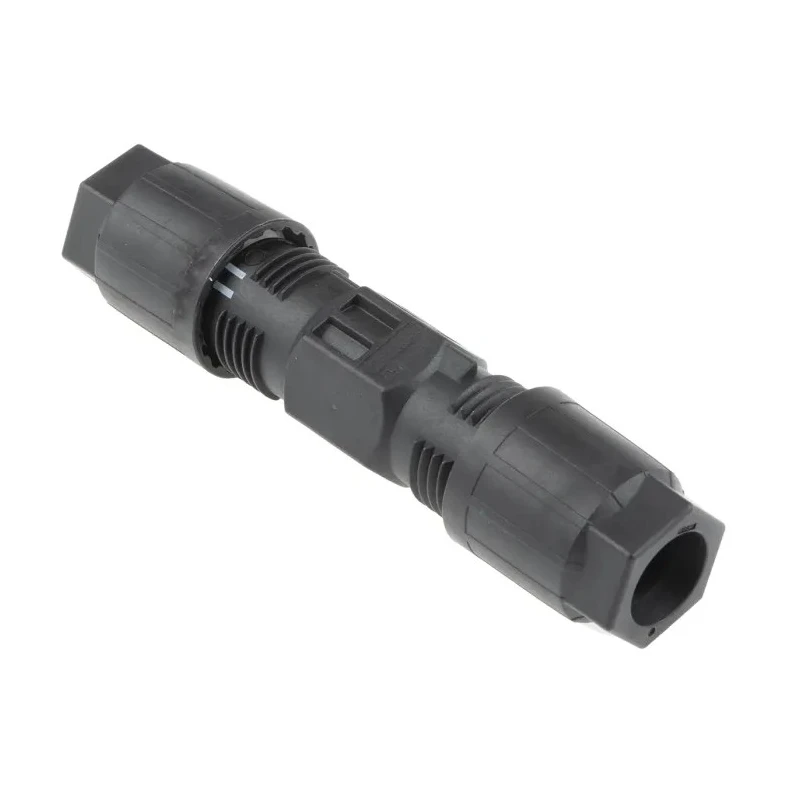

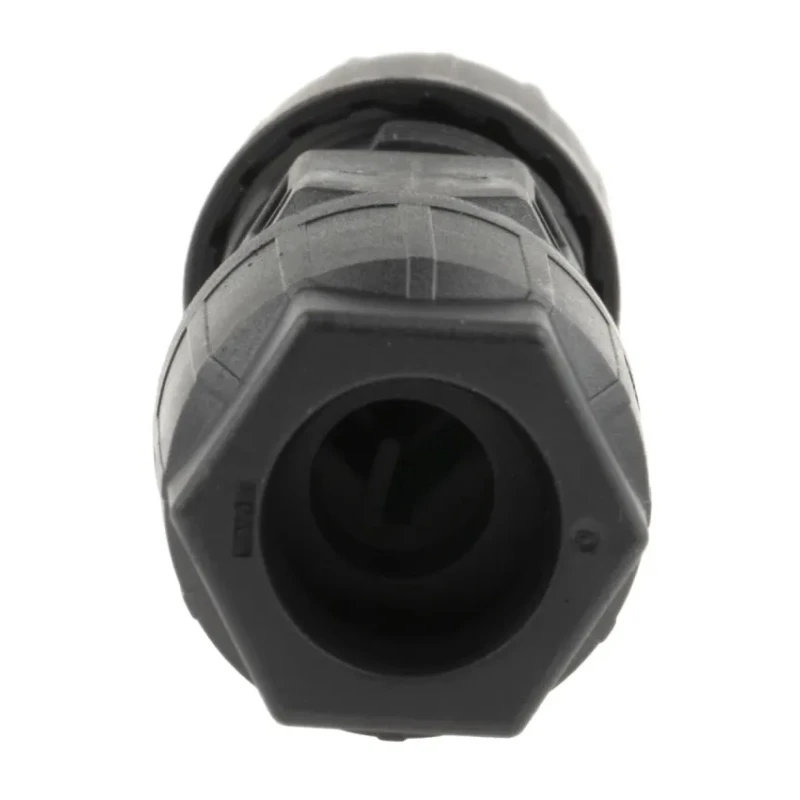

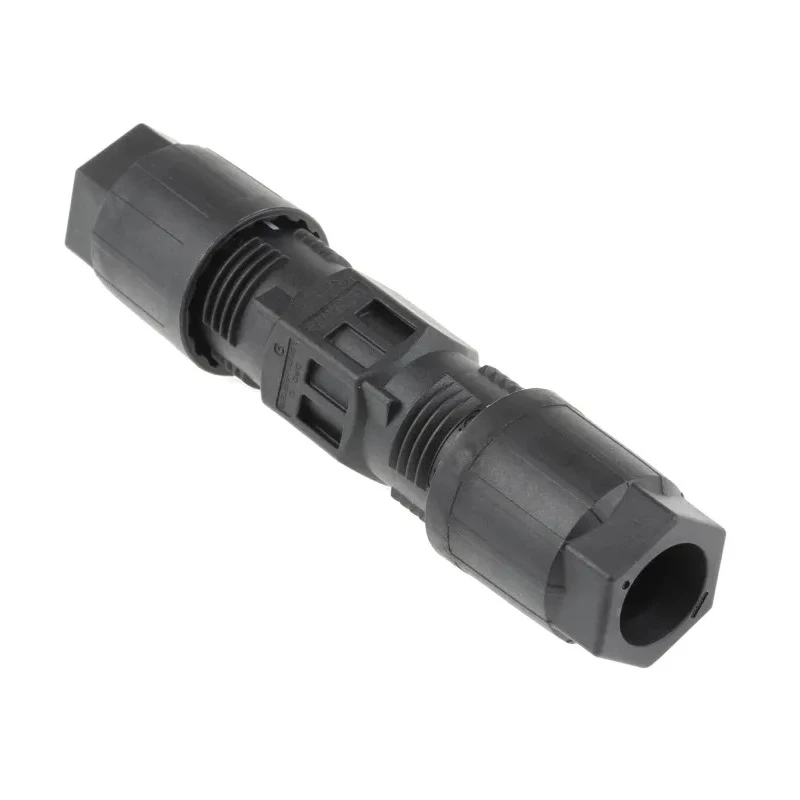

Phoenix Contact Circular Connector Cable Socket Female 3 Contacts 1kV 17.5A IP68 IP69K QPD Series

Phoenix Contact 1414696 Circular Connector is a high-quality cable socket designed for industrial applications requiring robust and reliable connections. Featuring 3 contacts with female configuration, it supports a voltage rating of 1kV and current capacity of 17.5A. Manufactured with a durable polyamide housing and silver-plated copper contacts, this connector ensures long service life even under demanding environmental conditions.

The product is rated IP68 and IP69K, guaranteeing excellent protection against water ingress and dust, making it suitable for harsh industrial environments including manufacturing, transportation, and machinery connections.

The QPD series connector offers quick connect termination technology that eliminates the need for special tooling, thereby reducing installation time by up to 80%. The screw locking mechanism ensures a secure and stable connection even under vibration or mechanical stress. It is designed for straight cable orientation with a 3+E pole format for enhanced reliability.

Operable within a wide temperature range of -40°C to 85°C, the connector complies with international standards such as CHINA RoHS, EU REACH SVHC, UL, and UL 94 HB flammability rating, ensuring safety, compliance, and environmental responsibility.

The connector is designed for reliable industrial cable connections. High ingress protection with IP68 and IP69K ratings for water and dust resistance. Quick connect termination allows efficient installation without special tools.

Constructed with polyamide housing and silver-plated copper contacts for durability. Operates safely between -40°C to 85°C temperature range. Rated for 17.5A current and 1kV voltage, suitable for robust industrial applications.

Includes screw locking for secure coupling. Complies with international standards including CHINA RoHS, UL, and EU REACH. Compact design with straight orientation and 3+E pole format.

This circular connector is primarily used in Electronics & Electricals sectors including industrial automation, power supplies, and machinery cabling. Its rugged design and certification make it ideal for industrial, manufacturing, and commercial electrical installations.
