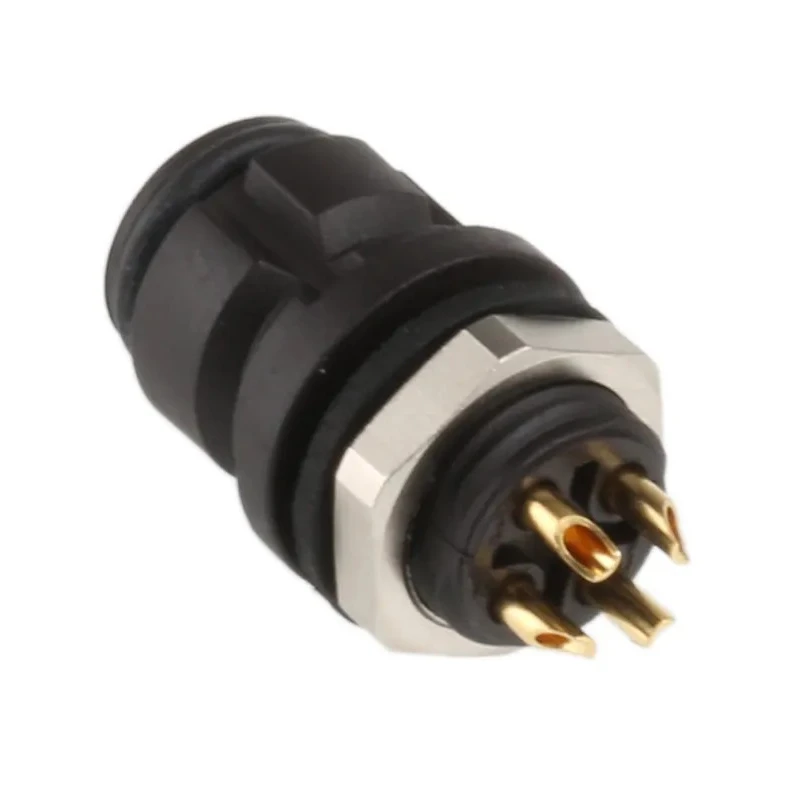

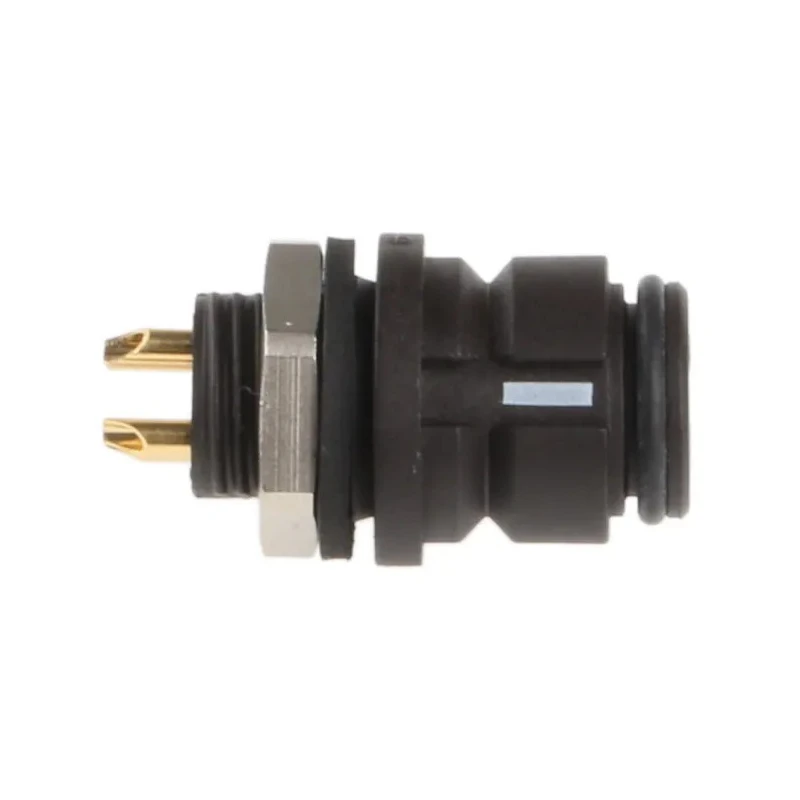

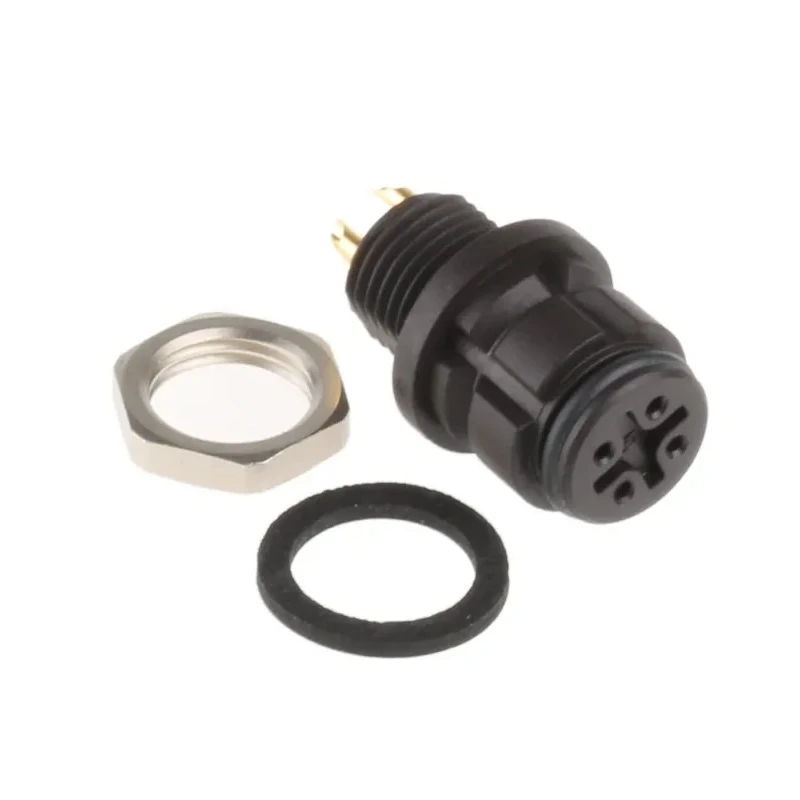

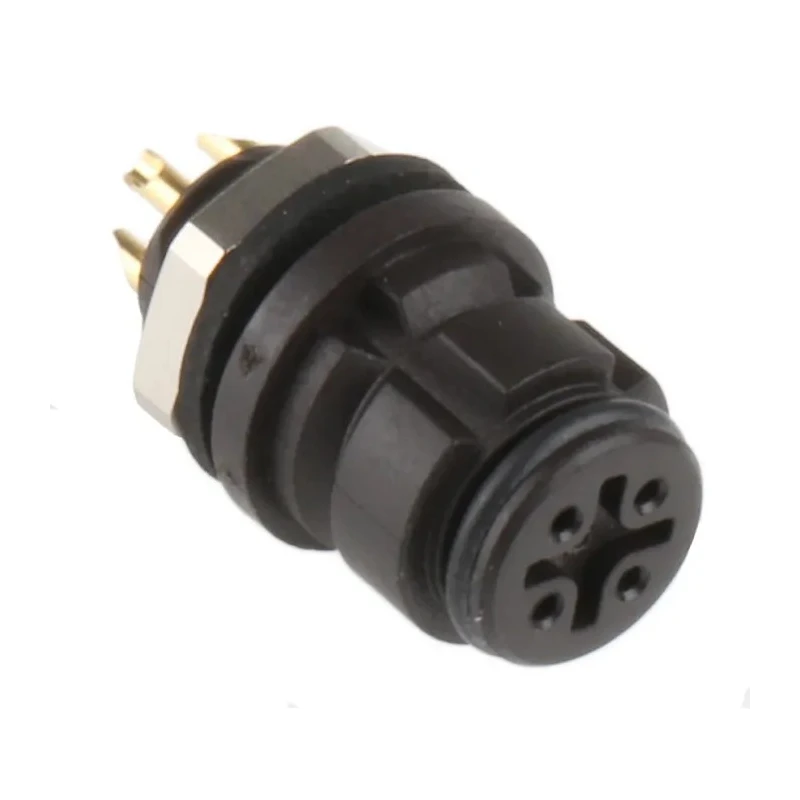

Binder Circular Connector 4 Contacts Panel Mount Subminiature Socket Female IP67 620 Series 99-9212-00-04

Free Delivery in India | Lowest Global Shipping Charges

Binder Circular Connector 4 Contacts Panel Mount Subminiature Socket Female IP67 620 Series 99-9212-00-04

Name: Binder Circular Connector 4 Contacts Panel Mount Subminiature Socket Female IP67 620 Series 99-9212-00-04
Brand: binder
SKU: 139436
Price: 7.17 USD
Availability: InStock



Category Circular Connector Brand binder Condition New

Specifications

Country of Origin	Germany
Voltage	125V
Brand	Binder
Orientation	Straight
Current	2A
IP Rating	IP67
Mount Type	Panel Mount
Housing Material	Polymer
Contact Material	Bronze
Series	620
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Contact Plating	Gold
Number of Contacts	4
Contact Gender	Female
Shell Size	11.5
Mating Type	Snap-In
Connector Size	Subminiature
Plug/Socket	Socket

Key Features

Features snap-in mating type for secure connections.
Operates at 125 volts with a current rating of 2 amps per contact.
Constructed with a polymer housing and gold-plated bronze contacts for durability.
Supports solder termination and is designed for straight body orientation.
Suitable for operating temperatures ranging from -25°C to 85°C.
Provides high durability with over 500 mating cycles.
Offers reliable protection with an IP67 ingress rating.
Shell size is 11.5mm suitable for subminiature applications.

Product Description

Binder 99-9212-00-04 circular connector is a high-quality, subminiature panel mount connector featuring 4 contacts with a socket female configuration. It operates at 125 volts and supports a current of 2 amps per contact, ensuring reliable electrical performance for demanding industrial applications.

The connector’s housing is made of robust polymer material, complemented with gold-plated bronze contacts to enhance conductivity and resist corrosion. Its solder termination type simplifies assembly, while the snap-in mating mechanism provides stable and secure connections, designed for straight body orientation.

Engineered for harsh environments, this connector offers an IP67 ingress protection rating, ensuring resistance against dust and water ingress. It performs reliably across a temperature range from -25°C to 85°C and withstands more than 500 mating cycles, making it a durable choice for industrial, process control, and commercial electronics applications.

Snap-in mating type ensures secure and stable connection. Polymer housing with gold-plated bronze contacts improves durability and conductivity. Straight orientation supports easy cable routing and installation. IP67 rated for dust and water resistance in harsh environments.

Operating temperature range from -25°C to 85°C suits varied industrial conditions. Solder termination offers reliable and robust contact connections. 500+ mating cycles guarantee long service life under repeated use. Compact shell size of 11.5mm fits subminiature applications.

Versatile use in industrial automation, process control, and commercial electronics sectors.

Originating from Germany, this Binder connector is manufactured to precision standards. It is an ideal solution for ensuring stable electrical connections in industrial circular connector applications where reliability and durability are critical.
